1500LB Handwheel Operated Pressure Seal Bonnet Globe Valve

Basic Information
Place of Origin: CHINA
Brand Name: coosai
Certification: API6D, ISO 9001
Model Number: J41
Minimum Order Quantity: 1set
Packaging Details: PLYWOOD CASE
Delivery Time: 5~20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs
Detail Information
Media: Water,Oil,Gas,Acid Material: Stainless Steel,Forged
Power: Manual,Handwheel Operated,electric,Gear Operated Pressure: Medium Pressure,Low Pressure,High Pressure
Structure: Globe Valve Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,Low Temperature
Port Size: Standard, Full, Reduced Standard: ANSI BS DIN JIS,DIN,ANSI,API,JIS
High Light:

1500lb globe stop valve


handwheel operated pressure seal globe valve


pressure seal bonnet handwheel operated valve

Product Description

Pressure Seal Bonnet 1500LB Globe Valve With Handwheel Operation



Design Feature:

  1. Bolt bonnet or Pressure seal bonnet design.
  2. Casting or forged body.
  3. Full port or reduced port design.
  4. Back seal design.
  5. Stem is one-piece wrought material.
  6. Tapered disc , Flat disc.,Regulating Disc, Parabolic disc.
  7. Outside Screw and Yoke .
  8. Rising stem and non-rising stem
  9. Renewable Seat or welding Seat.
  10. Special request : Locking device ,Position indicator. Limit Switch.
  11. Extend bonnet For underground Service.


To make a suit solution for your enquiry , we need follow information.

  1. Design standard.
  2. Medium & Component.
  3. Connection standard .
  4. Body material .
  5. Trim (Material for inside parts).
  6. Size.
  7. Connection type.
  8. Operation type.
  9. Temperature.
  10. Ambient temperature range . Corrosion considerations.
  11. Application Descripetion.
  12. Test & Inspection requirement , Such as : Hydraulic test , Material Analysis , Chemical compoent analysis ,etc
  13. Document requirement , such as : Mill certificate , Material Certificate ,Test Report ,etc...



Handwheel Operated Globe Valves


Size: 2"~ 48" DN 50-DN1200
Pressure 150LB -2500LB PN 10~PN400
Material Carbon steel,Duplex /Stainless Steel, Special Alloy





Product Range :

  1. Size: NPS 2”~ 48” , DN 50-1200
  2. Pressure Rating: Class 150 -2500 LB , PN 10~400
  3. Design standard:API 600 ,ASME B16.34,ISO 10432,EN1984.
  4. Face To Face Dimension: ASME B16.10,EN 558-1,EN 12982
  5. Connecting Dimensions : ASME B16.5 , ASME B16.47, ASM B 16.25 , EN 1092-1 , EN 12627.
  6. End Connection : Flange, BW .
  7. Body Materials : Carbon steel , Stainless Steel , Alloy Steel,Duplex Stainless Steel , Special Alloy .

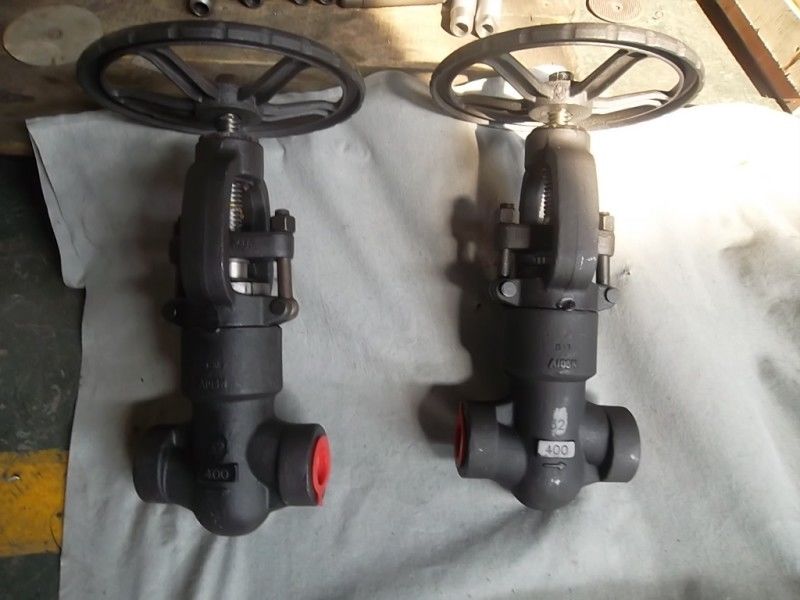

1500LB Handwheel Operated Pressure Seal Bonnet Globe Valve 0

1500LB Handwheel Operated Pressure Seal Bonnet Globe Valve 1

1500LB Handwheel Operated Pressure Seal Bonnet Globe Valve 2
