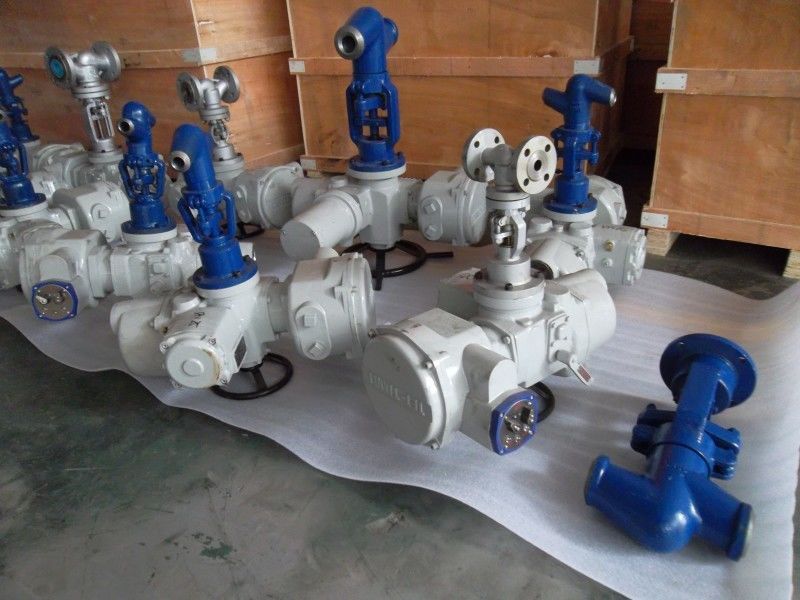

DIN Electric Globe Stop Valve With BW Ends

Electric Actuator​ Operated Globe Valves

Design Feature:

1. Bolt bonnet or Pressure seal bonnet design.
2. Casting or forged body.
3. Full port or reduced port design.
4. Back seal design.
5. Stem is one-piece wrought material.
6. Tapered disc , Flat disc.,Regulating Disc, Parabolic disc.
7. Outside Screw and Yoke .
8. Rising stem and non-rising stem
9. Renewable Seat or welding Seat.
10. Special request : Locking device ,Position indicator. Limit Switch.
11. Extend bonnet For underground Service.

Product Range :

1. Size: NPS 2”~ 48” , DN 50-1200
2. Pressure Rating: Class 150 -2500 LB , PN 10~400
3. Design standard:API 600 ,ASME B16.34,ISO 10432,EN1984.
4. Face To Face Dimension: ASME B16.10,EN 558-1,EN 12982
5. Connecting Dimensions : ASME B16.5 , ASME B16.47, ASM B 16.25 , EN 1092-1 , EN 12627.
6. End Connection : Flange, BW .
7. Body Materials : Carbon steel , Stainless Steel , Alloy Steel,Duplex Stainless Steel , Special Alloy .

To make a suit solution for your enquiry , we need follow information.

1. Design standard.
2. Connection standard .
3. Size.
4. Body material .
5. Trim (Material for inside parts).
6. Connection type.
7. Operation type.
8. Medium & Component.
9. Temperature.
10. Ambient temperature range . Corrosion considerations.
11. Application Descripetion.
12. Document requirement , such as : Mill certificate , Material Certificate ,Test Report ,etc...
13. Test & Inspection requirement , Such as : Hydraulic test , Material Analysis , Chemical compoent analysis ,etc
