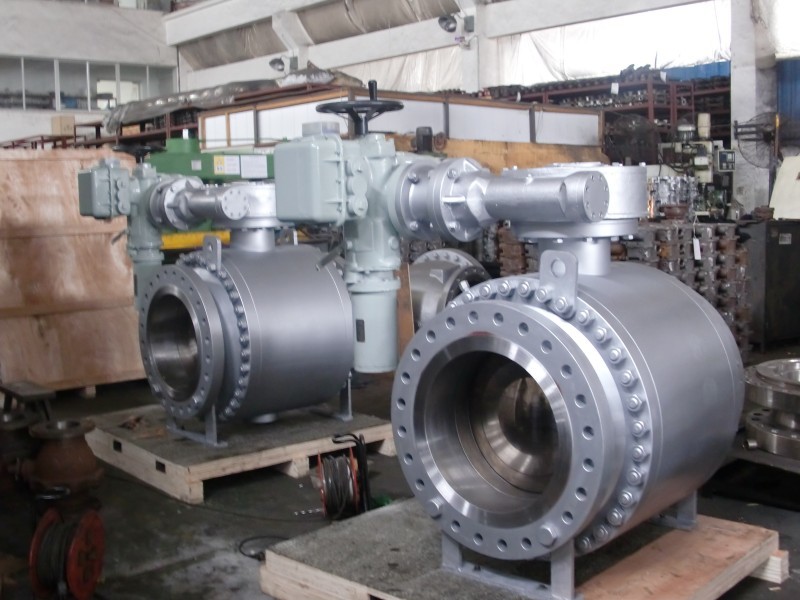

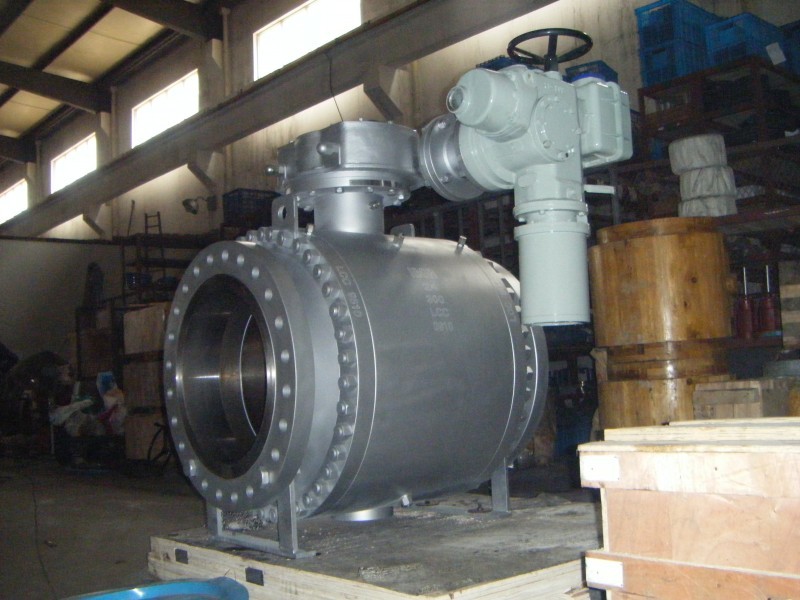

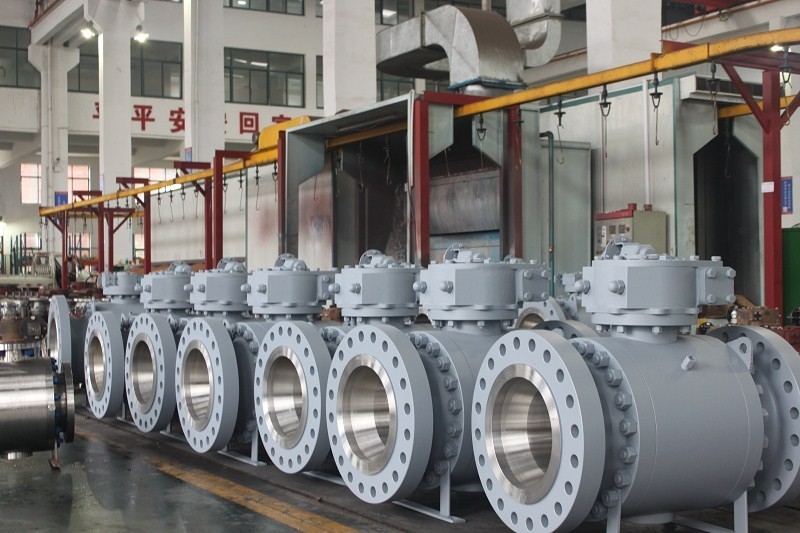

Double Block Soft Seat Trunnion Ball Valve for Bleed Control Applications

Basic Information
Certification: API 6D
Detail Information
Valve Type: Trunnion Ball Valve Application: Oil And Gas/Chemical/Power Plant
Full Port/Reduced Port: Full Port End Connections: Flanged/Butt Weld/Socket Weld
Pressure Rating: Class 150-2500 Body Material: Carbon Steel/Stainless Steel
Blowout Proof Stem: Yes Size: 2"-48"
High Light:

Double block Trunnion Ball Valve

,

Soft Seat Trunnion Ball Valve

,

Bleed Control Trunnion Ball Valve


Product Description

Product Description:

Our Trunnion Ball Valve is designed with a fire-safe construction that complies with API 607 and ISO 10497 standards. This means that our valve is tested and proven to withstand high-temperature environments and prevent any possible leakage or damage, providing you with a safe and secure operation.

Our Trunnion Ball Valve is equipped with a PTFE/RPTFE/PEEK seat material that ensures a tight and stable shut-off, guaranteeing zero leakage. This feature enhances the valve's performance, making it the perfect choice for applications that require a reliable and long-lasting valve solution.

Our Trunnion Ball Valve is engineered to be a trunnion mounted valve, which means that it has a fixed shaft that holds the ball in place. This design is perfect for high-pressure applications, as it ensures that the ball stays in position even under extreme conditions, preventing any possible damage or failure.

Our Trunnion Ball Valve has a pressure rating of Class 150-2500, which makes it suitable for a wide range of applications, from low to high-pressure environments. The valve is designed to withstand high-pressure conditions, ensuring a reliable and secure operation in even the most demanding applications.

Our Trunnion Ball Valve comes with different end connections, including Flanged, Butt Weld, and Socket Weld. This feature provides our customers with flexibility, allowing them to choose the best connection that suits their specific needs and requirements.

Our Trunnion Ball Valve is the perfect solution for industrial applications that demand reliable and durable valve solutions. With its fire-safe design, PTFE/RPTFE/PEEK seat material, trunnion mounted valve construction, and Class 150-2500 pressure rating, our valve is guaranteed to provide superior performance and ensure a safe and efficient operation.



Features:

  • Product Name: Trunnion Ball Valve
  • Body Material: Carbon Steel/Stainless Steel
  • Pressure Rating: Class 150-2500
  • Design Standard: API 6D/ASME B16.34
  • Valve Type: Trunnion Ball Valve
  • Top Entry/ Side Entry: Side Entry

This Trunnion Ball Valve is a trunnion type ball valve that is designed with a carbon steel or stainless steel body material. It has a pressure rating of Class 150-2500 and conforms to API 6D/ASME B16.34 design standards. This trunnion mounted ball valve is a side entry valve type, making it easy to access and maintain.



Technical Parameters:

Technical Parameter Value
Valve Type Trunnion Ball Valve
Body Material Carbon Steel/Stainless Steel
Size 2"-48"
Fire Safe Design API 607/ISO 10497
Anti-Static Design API 608
Blowout Proof Stem Yes
Application Oil and Gas/Chemical/Power Plant
Full Port/Reduced Port Full Port
Operation Manual/Gear/Actuator
End Connections Flanged/Butt Weld/Socket Weld


Applications:

One of the key features of this valve is its fire-safe design, which meets API 607/ISO 10497 standards. This means that it can withstand extreme temperatures and will not fail in the event of a fire. Additionally, the blowout-proof stem ensures that the valve remains securely in place, even under high pressure.

The Trunnion Type Ball Valve is available in sizes ranging from 2" to 48", making it suitable for a wide range of applications. The valve can be fitted with flanged, butt weld, or socket weld end connections, which provides flexibility in installation. The full port design ensures that there is minimal flow restriction, making it ideal for applications where high flow rates are required.

Some of the common applications for the Trunnion Type Ball Valve include:

  • Oil and gas production
  • Chemical processing
  • Power generation
  • Mining and minerals processing
  • Water and wastewater treatment

In each of these industries, the Trunnion Type Ball Valve is used to control the flow of various fluids, including water, oil, gas, and chemicals. Its rugged construction and reliable performance make it an essential component in many industrial processes.

Overall, the Trunnion Type Ball Valve is a versatile and reliable valve that can be used in a wide range of industrial applications. Its fire-safe design, blowout-proof stem, and full port design make it a popular choice among engineers and operations managers alike.



Support and Services:

The Trunnion Ball Valve product technical support and services include:

  • Installation instructions and guidance
  • Operation and maintenance manuals
  • Technical assistance for valve selection and sizing
  • Valve automation and actuation services
  • Training and education on the product and its applications
  • Repair and maintenance services
  • On-site troubleshooting and field services


Packing and Shipping:

Product Packaging:

  • The trunnion ball valve will be packed in a sturdy corrugated cardboard box.
  • The valve will be wrapped in bubble wrap to prevent any damage during shipping.
  • The box will be sealed with high-strength packing tape.
  • The box will include a label with the product name, size, and quantity.

Shipping:

  • The trunnion ball valve will be shipped via a trusted courier service.
  • The shipping cost will be calculated based on the weight and destination of the package.
  • The estimated delivery time will be provided to the customer at the time of purchase.
  • The customer will receive a tracking number to monitor the shipment status.


FAQ:

A Trunnion Ball Valve is a type of valve that uses a ball to regulate the flow of liquid or gas through a pipeline. It is designed with a fixed central shaft (trunnion) that supports and positions the ball within the valve body.

Q: What are the advantages of using a Trunnion Ball Valve?

Trunnion Ball Valves offer several advantages over other valve types, including superior sealing capability, increased durability and longer service life. They also provide excellent flow control and are suitable for use in high-pressure and high-temperature applications.

Q: What materials are Trunnion Ball Valves made of?

Trunnion Ball Valves can be made from a variety of materials, including carbon steel, stainless steel, and alloy steel. The choice of material depends on the specific application and the operating conditions of the valve.

Q: What sizes are Trunnion Ball Valves available in?

Trunnion Ball Valves are available in a range of sizes, from small, compact valves for low-flow applications to large, heavy-duty valves for high-flow applications. The size of the valve is determined by the diameter of the pipeline it is intended to be used with.

Q: How do I install and maintain a Trunnion Ball Valve?

Installation and maintenance instructions for Trunnion Ball Valves vary depending on the specific model and manufacturer. However, in general, the valve should be installed in accordance with the instructions provided by the manufacturer and should be inspected and serviced regularly to ensure optimal performance and longevity.
