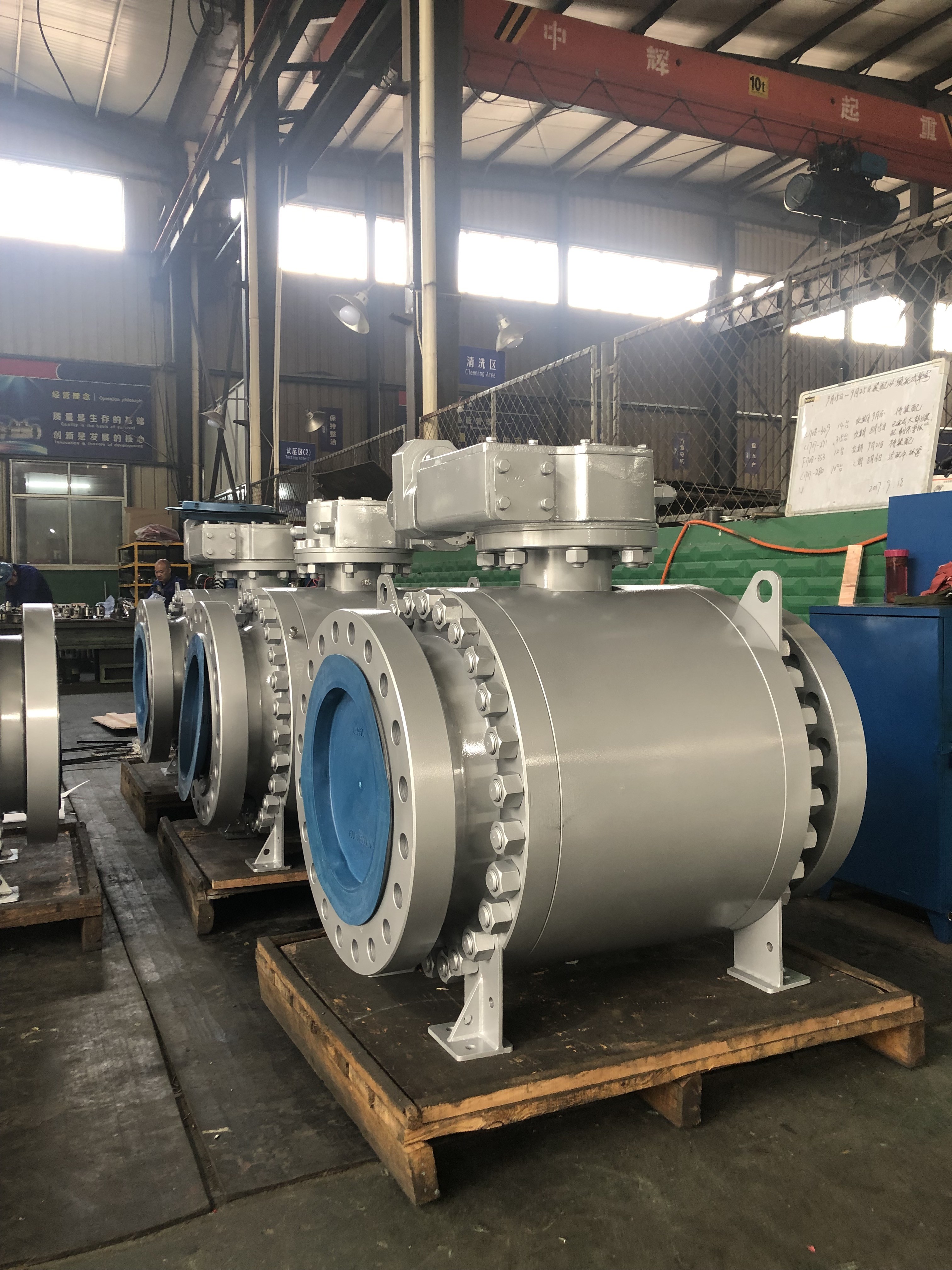

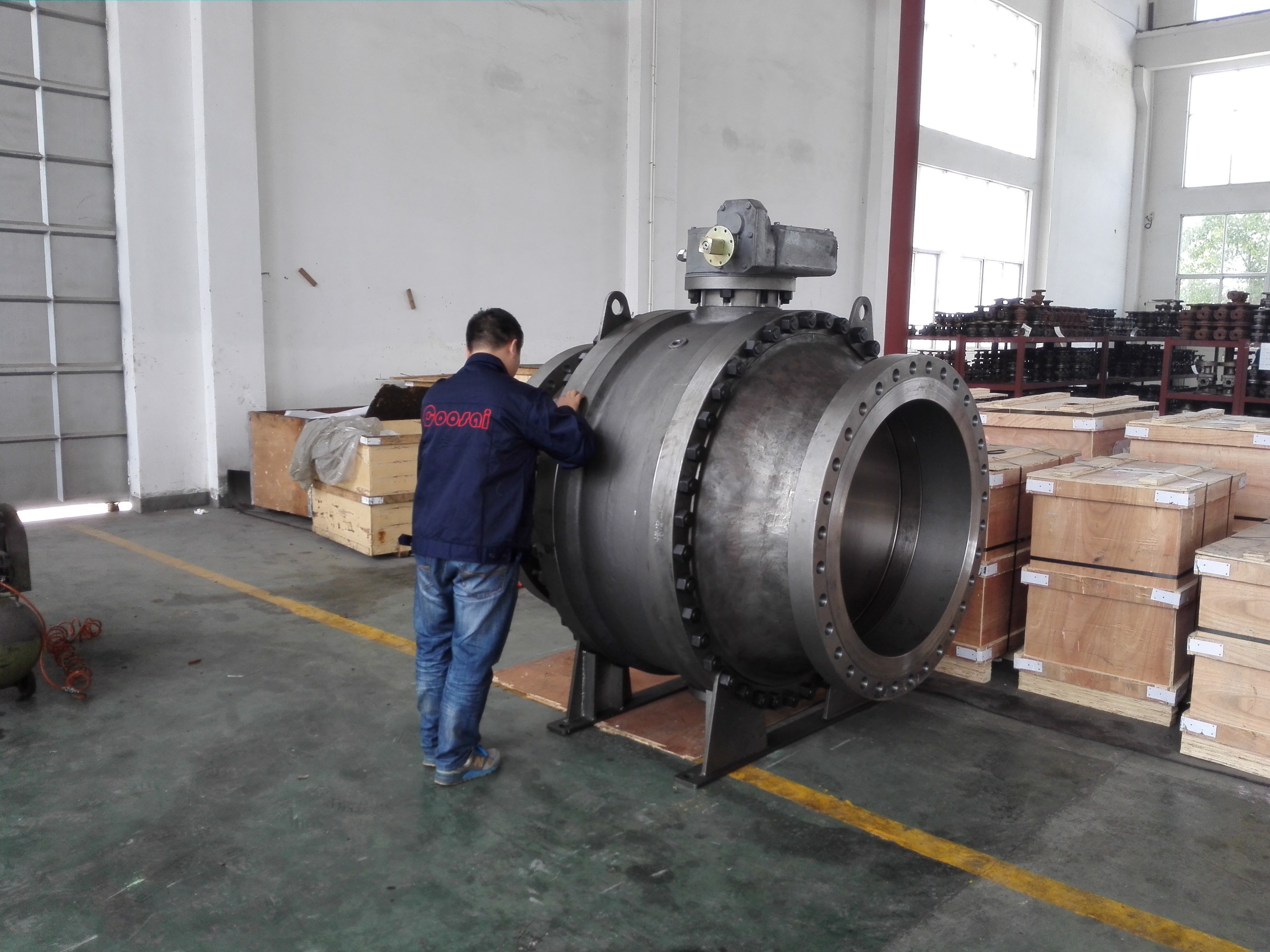

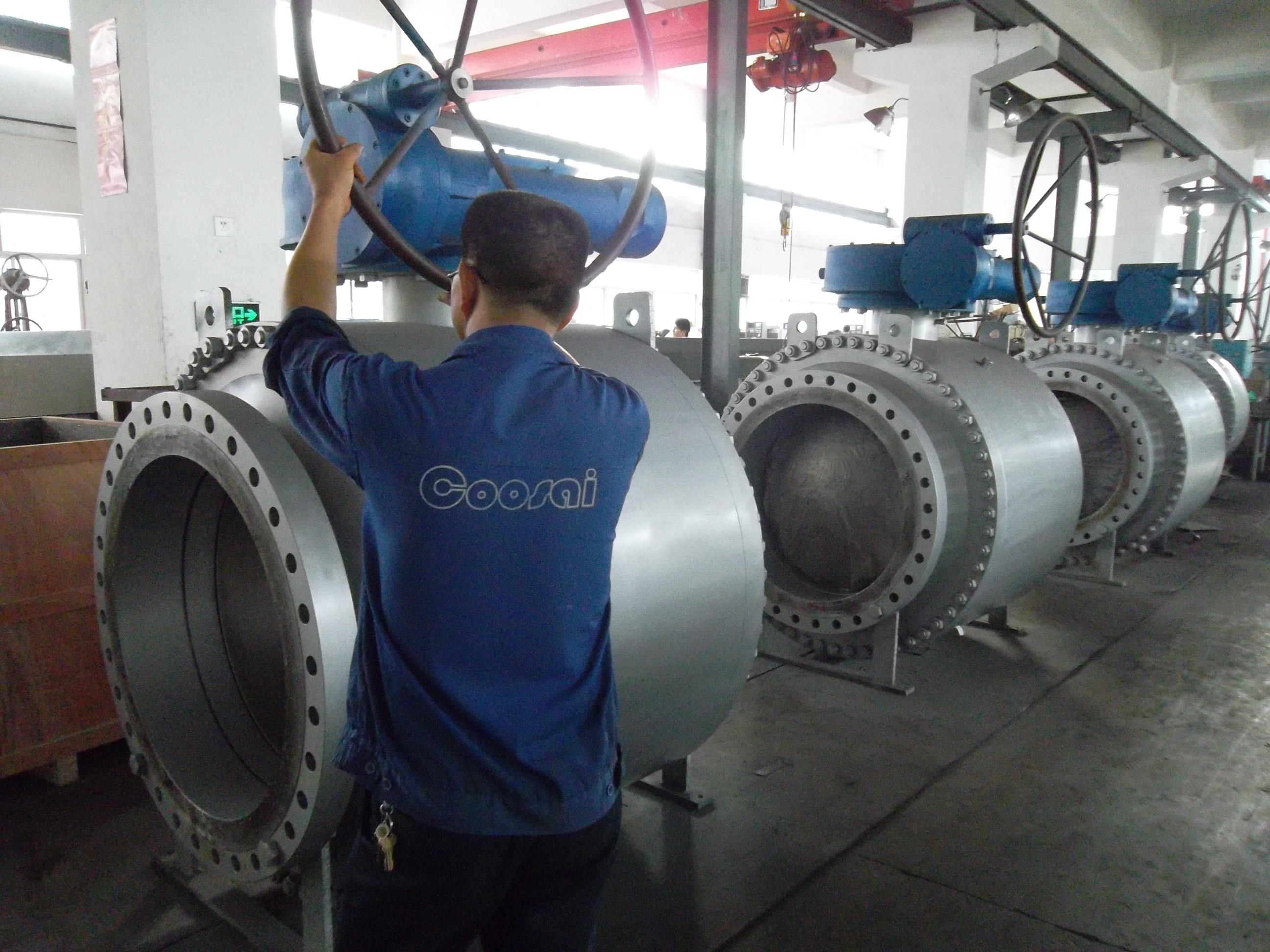

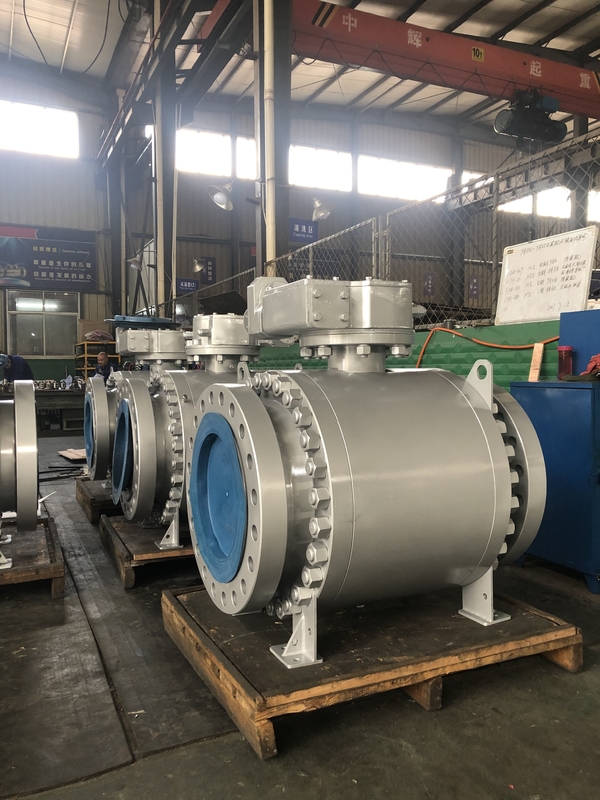

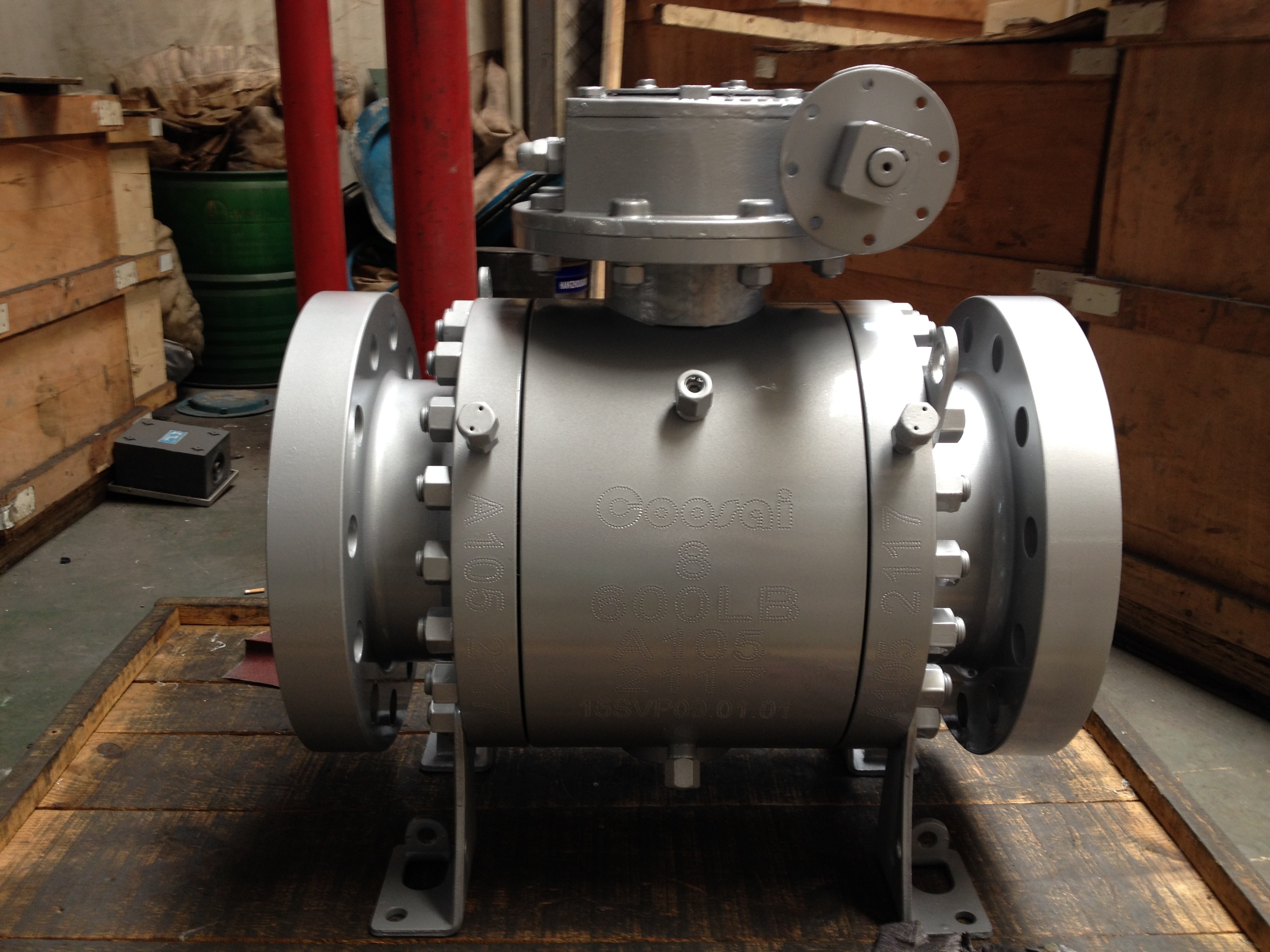

16 Inch Trunnion Type Ball Valve with Blowout Proof and Soft Seat

Basic Information
Detail Information
Anti-Static: Yes Body Material: Carbon Steel
Ball Material: Stainless Steel Fire Safe: Yes
Design Standard: API 6D Blowout Proof: Yes
Seat Material: PTFE Stem Material: Stainless Steel
High Light:

Blowout Proof trunnion type ball valve

,

Soft Seat trunnion type ball valve

,

16 Inch Trunnion Type Ball Valve


Product Description

Product Description:

The Trunnion Ball Valve has a flanged end connection that allows it to be easily installed and integrated into existing piping systems. The body material is made of carbon steel, which provides excellent resistance to corrosion and high temperatures. This makes it an ideal choice for use in harsh environments where other materials may fail.

The valve type is a trunnion mounted ball valve, which means that the ball is supported by trunnions on either side. This design ensures that the ball is always properly aligned and seated, even under high-pressure conditions. The trunnion mounted ball valve is also known for its low torque requirements, which makes it easier to operate and reduces wear and tear on the valve components.

The Trunnion Ball Valve is designed for use in oil and gas applications, where it can handle a wide range of fluids, including crude oil, natural gas, and refined products. It is also suitable for use in other industries where high-pressure, high-temperature applications are required.

The seat material used in the Trunnion Ball Valve is PTFE, which provides excellent resistance to chemicals and high temperatures. It also has a low coefficient of friction, which ensures smooth operation and reduces wear and tear on the valve components. The PTFE seat material also ensures tight shutoff, which reduces the risk of leakage and enhances safety.

In summary, the Trunnion Ball Valve is a high-performance valve designed for industrial applications in the oil and gas industry. It features a trunnion type ball valve design with a side entry design for easy maintenance and repair. The valve type is trunnion mounted ball valve, which ensures proper alignment and low torque requirements. The end connection is flanged, and the body material is carbon steel, which provides excellent resistance to corrosion and high temperatures. The seat material is PTFE, which ensures tight shutoff and reduces wear and tear on the valve components. It is ideal for use in high-pressure, high-temperature applications where reliability and durability are critical.



Features:

  • Product Name: Trunnion Ball Valve
  • Fire Safe: Yes
  • Seat Material: PTFE
  • Ball Material: Stainless Steel
  • Stem Material: Stainless Steel
  • Operation: Manual
  • Type: Trunnion Mounted Ball Valve
  • Also known as: Trunnion Type Ball Valve, Trunnion Mounted Ball Valve


Technical Parameters:

Technical Parameter Value
Valve Type Trunnion Type Ball Valve
Anti-Static Yes
Stem Material Stainless Steel
Operation Manual
Pressure Rating Class 150
Blowout Proof Yes
Body Material Carbon Steel
Fire Safe Yes
End Connection Flanged
Ball Material Stainless Steel


Applications:

One of the key features of the trunnion mounted ball valve is its pressure rating. With a class 150 rating, this valve is capable of withstanding high pressure and maintaining a tight seal, making it ideal for use in a wide range of applications. This makes it a popular choice for use in industries such as oil and gas, chemical processing, and power generation.

Another important attribute of this valve is the seat material. With a PTFE seat, it provides excellent chemical resistance and high temperature capabilities. This makes it a popular choice for use in industries such as petrochemicals, pharmaceuticals, and food and beverage processing, where the valve may come into contact with a variety of harsh chemicals and substances.

The trunnion mounted ball valve is also designed to be blowout proof, meaning that it is able to withstand high pressure and prevent the stem from being blown out of the valve body. This provides an added level of safety and reliability, making it a popular choice for use in applications where safety is a top priority.

The size of this valve is 16 inches, making it ideal for use in large-scale industrial applications. Its stainless steel stem material provides excellent durability and corrosion resistance, making it a reliable choice for use in harsh environments.

Overall, the trunnion mounted ball valve is a versatile and reliable valve that is well-suited for use in a wide range of industrial applications. Whether you need to control the flow of fluids or gases, or simply need a reliable shut-off valve, a trunnion mounted valve is an excellent choice.



Support and Services:

The Trunnion Ball Valve is a high-performance valve designed for use in oil and gas production, refining, and other industrial applications. Our product technical support and services include:

  • Installation support and guidance
  • Valve sizing and selection assistance
  • Operation and maintenance training
  • Repair and maintenance services
  • Technical troubleshooting and support
  • Product documentation and manuals

Our team of experienced professionals is dedicated to ensuring that your Trunnion Ball Valve operates at maximum efficiency and reliability throughout its lifespan.



Packing and Shipping:

Product Packaging:

  • The trunnion ball valve will be securely packed in a cardboard box.
  • The box will be sealed with tape to prevent any damage or tampering during transportation.
  • All necessary accessories and installation instructions will be included in the box.

Shipping:

  • The trunnion ball valve will be shipped via a reliable courier service.
  • The shipping method will be selected based on the destination and urgency of the order.
  • The estimated shipping time will be communicated to the customer once the order is processed.
  • A tracking number will be provided to the customer to track their shipment.


FAQ:

A trunnion ball valve is a type of quarter-turn valve that uses a ball to control the flow of fluid through it. It is designed with a fixed shaft, known as a trunnion, which holds the ball in place and ensures proper alignment.

Q: What are the advantages of using a trunnion ball valve?

Trunnion ball valves offer several advantages over other types of valves, including:

  • High flow capacity
  • Low pressure drop
  • Excellent sealing capabilities
  • Long service life
  • Easy operation and maintenance
Q: What materials are trunnion ball valves made of?

Trunnion ball valves can be made from a variety of materials, depending on the specific application. Common materials include:

  • Carbon steel
  • Stainless steel
  • Alloy steel
  • Brass
  • Bronze
Q: What sizes are trunnion ball valves available in?

Trunnion ball valves come in a wide range of sizes, from small 1/2-inch valves up to large 60-inch valves. The specific size needed will depend on the application and the flow rate required.

Q: What industries commonly use trunnion ball valves?

Trunnion ball valves are used in a variety of industries, including:

  • Oil and gas
  • Petrochemical
  • Chemical processing
  • Water and wastewater treatment
  • Power generation
