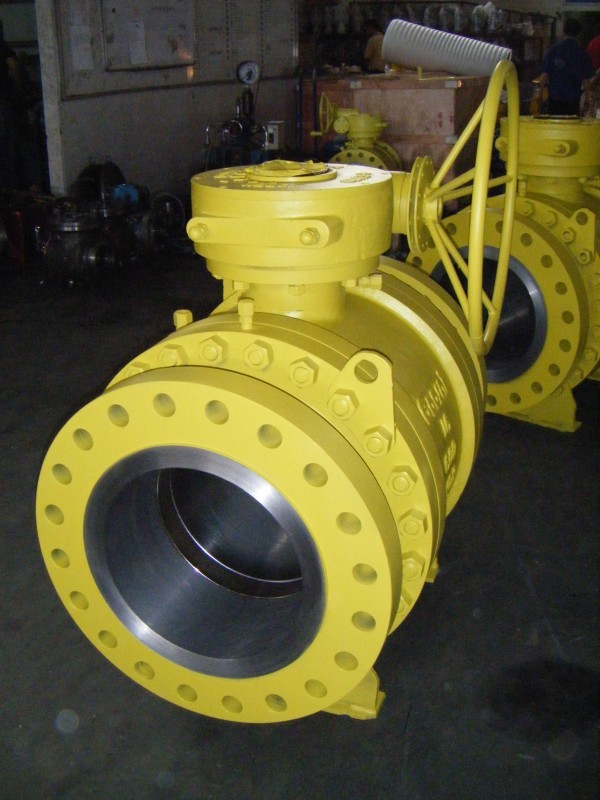

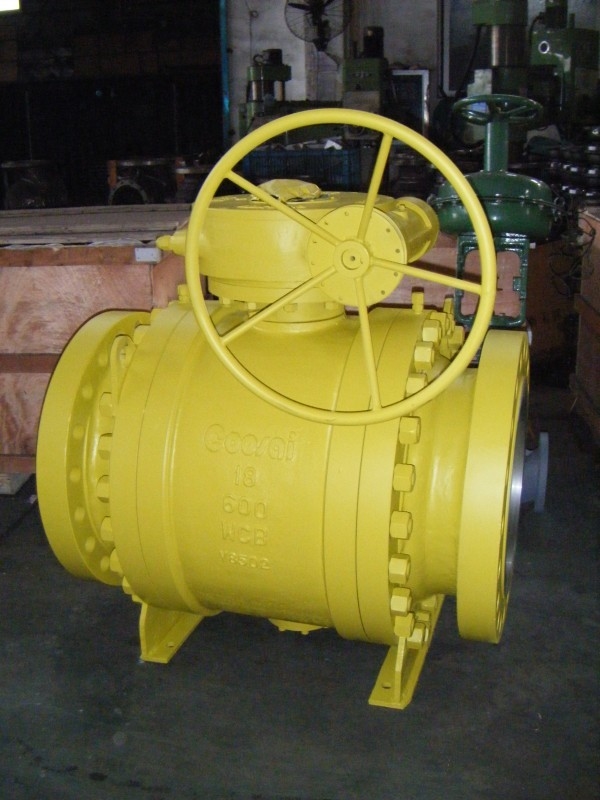

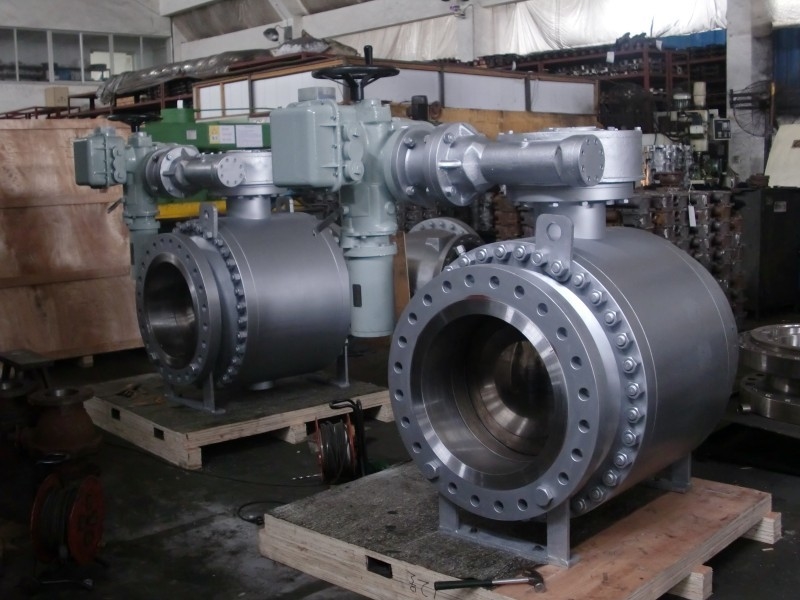

Soft Seat Trunnion Ball Valve For Anti Static Applications And Bleeding

Basic Information
Certification: API 6D
Detail Information
Full Port/Reduced Port: Full Port Size: 2"-48"
Operation: Manual/Gear/Actuator Blowout Proof Stem: Yes
Anti-Static Design: API 608 Valve Type: Trunnion Ball Valve
Body Material: Carbon Steel/Stainless Steel Top Entry/ Side Entry: Side Entry
High Light:

Soft Seat Trunnion Ball Valve

,

bleed Trunnion Ball Valve

,

Anti Static Bleeding Trunnion Ball Valve


Product Description

Product Description:

Our Trunnion Ball Valve is a type of side entry ball valve that is designed to provide reliable, leak-free performance. It features a trunnion mounted valve that provides excellent stability and support, ensuring that the valve operates smoothly and efficiently. The valve is available in a range of sizes and pressure ratings, from Class 150 to Class 2500, making it suitable for a wide range of applications.

The valve comes with a variety of end connections, including flanged, butt weld, and socket weld, ensuring that it can be easily integrated into your existing system. The valve also meets API 6D and ASME B16.34 design standards, ensuring that it meets the highest quality and performance standards.

Made with either carbon steel or stainless steel, our Trunnion Ball Valve is highly resistant to corrosion and wear, ensuring that it continues to perform optimally even in harsh environments. The valve is also designed to be easy to operate and maintain, ensuring that you can keep your system running smoothly with minimal effort.

In summary, our Trunnion Ball Valve is a high-quality, reliable valve that is suitable for a wide range of industrial fluid control applications. With its trunnion mounted valve, excellent stability, and range of pressure ratings and end connections, it is the perfect choice for those looking for a top-performing valve that is built to last.



Features:

  • Product Name: Trunnion Ball Valve
  • Pressure Rating: Class 150-2500
  • Application: Oil and Gas/Chemical/Power Plant
  • End Connections: Flanged/Butt Weld/Socket Weld
  • Valve Type: Trunnion mounted ball valve
  • Fire Safe Design: API 607/ISO 10497


Technical Parameters:

Technical Parameter Value
End Connections Flanged/Butt Weld/Socket Weld
Size 2"-48"
Top Entry/ Side Entry Side Entry
Valve Type Trunnion mounted ball valve/Trunnion type ball valve
Pressure Rating Class 150-2500
Anti-Static Design API 608
Operation Manual/Gear/Actuator
Seat Material PTFE/RPTFE/PEEK
Body Material Carbon Steel/Stainless Steel
Application Oil and Gas/Chemical/Power Plant


Applications:

The Trunnion Ball Valve product is available in sizes ranging from 2" to 48", making it suitable for use in a wide range of applications. The full port design of the valve ensures minimal pressure drop and allows for smooth flow of fluids. The product is also available in reduced port design, which is suitable for applications where space is limited.

The Trunnion Ball Valve product is available in manual, gear, and actuator operation, making it suitable for use in different application scenarios. Manual operation is suitable for applications where the valve is not frequently operated. Gear operation is suitable for applications where the valve is frequently operated, and actuator operation is suitable for applications where automation is required.

The Trunnion Ball Valve product is suitable for use in various application occasions and scenarios. It is commonly used in industries such as oil and gas, petrochemical, power generation, and water treatment. The product is ideal for use in applications that require high flow rates, high-pressure ratings, and tight shut-off.

The Trunnion Ball Valve product is suitable for use in various scenarios such as pipeline transportation, oil and gas production, storage and transportation, air separation, and liquefied natural gas (LNG) production. The product is also suitable for use in applications that require frequent cycling, high cycle life, and low maintenance.



Support and Services:

Our Trunnion Ball Valve product is designed for use in high pressure and high-temperature applications. Our technical support team is available to provide assistance with installation, maintenance, and troubleshooting. We also offer repair services and replacement parts to ensure the continued performance of your valve. Our team of experts can help you select the appropriate valve for your specific application and provide customized solutions to meet your needs.



Packing and Shipping:

Product Packaging:

  • Each valve is wrapped in bubble wrap to protect it during shipping.
  • Valves are then placed in a sturdy cardboard box with foam inserts to prevent any damage during transit.
  • Each box is labeled with the product name, quantity, and any special handling instructions.

Shipping:

  • Valves are shipped via standard ground shipping.
  • Expedited shipping options are available for an additional fee.
  • Shipping costs are calculated based on the weight and destination of the package.
  • Customers will receive a tracking number once their order has shipped.


FAQ:

A: A Trunnion Ball Valve is a type of valve that uses a ball to control the flow of fluid through a pipeline. It is constructed with a fixed trunnion, which provides additional support and reduces the operating torque of the valve.

Q: What are the materials used to construct the Trunnion Ball Valve?

A: The Trunnion Ball Valve is typically constructed with materials such as carbon steel, stainless steel, or high performance alloys for the body and trim components. The ball is often made of chrome-plated brass, stainless steel, or another high-strength material.

Q: What are the advantages of using a Trunnion Ball Valve?

A: The Trunnion Ball Valve offers several advantages over other types of valves, including higher flow capacities, improved sealing capabilities, and reduced operating torque due to the fixed trunnion. It also provides tight shut-off capabilities, making it suitable for applications that require precise control.

Q: What applications are suitable for the Trunnion Ball Valve?

A: The Trunnion Ball Valve is suitable for a wide range of applications, including oil and gas, chemical processing, power generation, and water treatment. It is commonly used in pipelines and other systems that require high flow rates, high pressure, and tight shut-off capabilities.

Q: How do I maintain and service the Trunnion Ball Valve?

A: To maintain and service the Trunnion Ball Valve, it is important to follow the manufacturer's recommended maintenance procedures. This may include regular cleaning and lubrication of the valve components, as well as inspection and replacement of worn or damaged parts. It is also important to ensure that the valve is installed correctly and that any issues or malfunctions are addressed promptly to prevent damage or failure.
