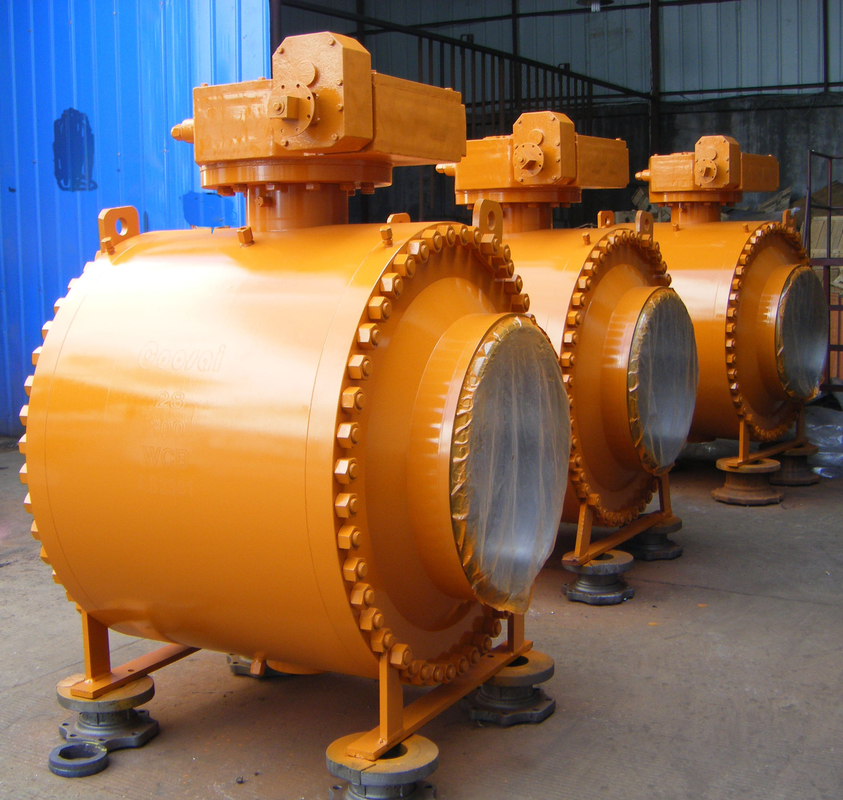

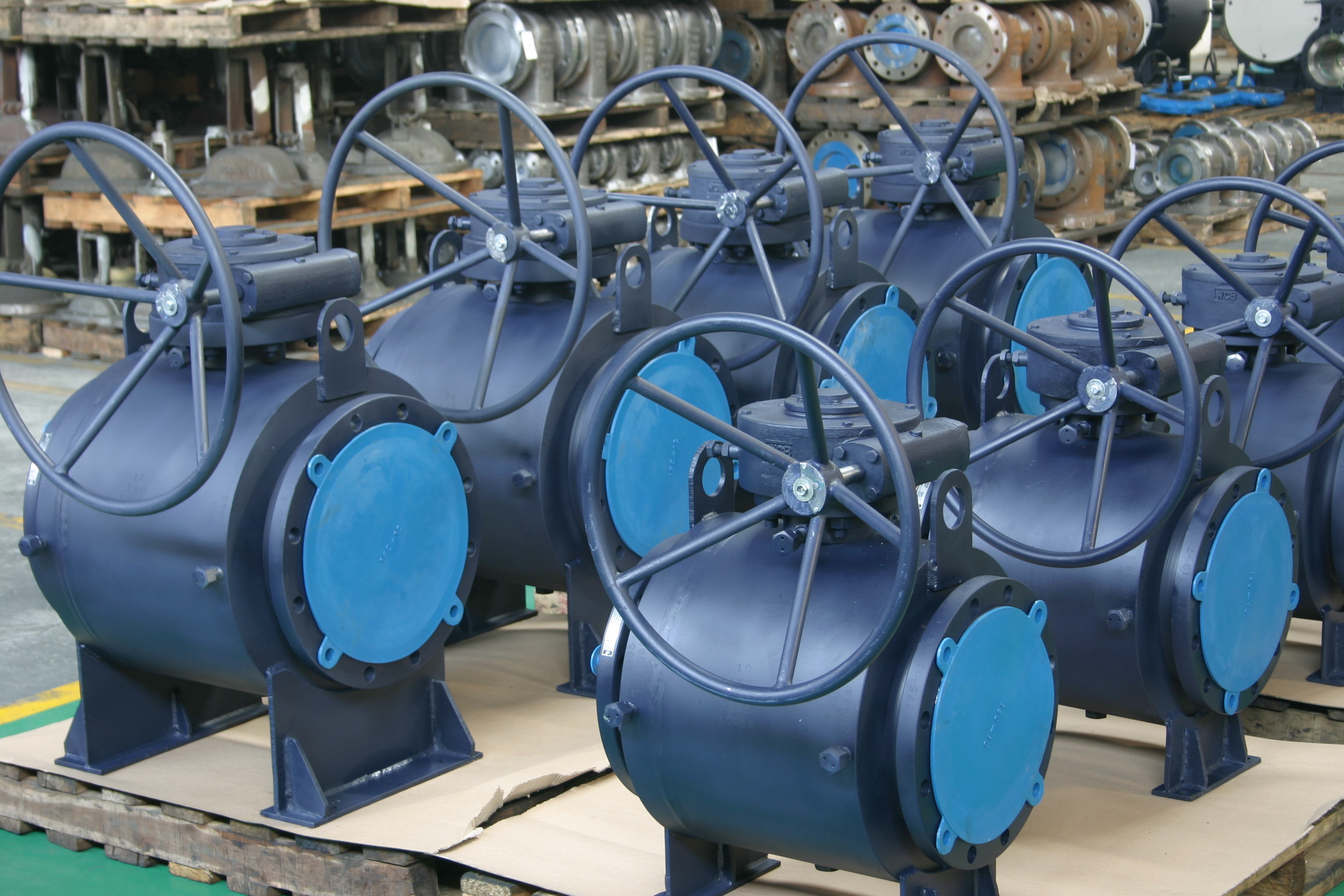

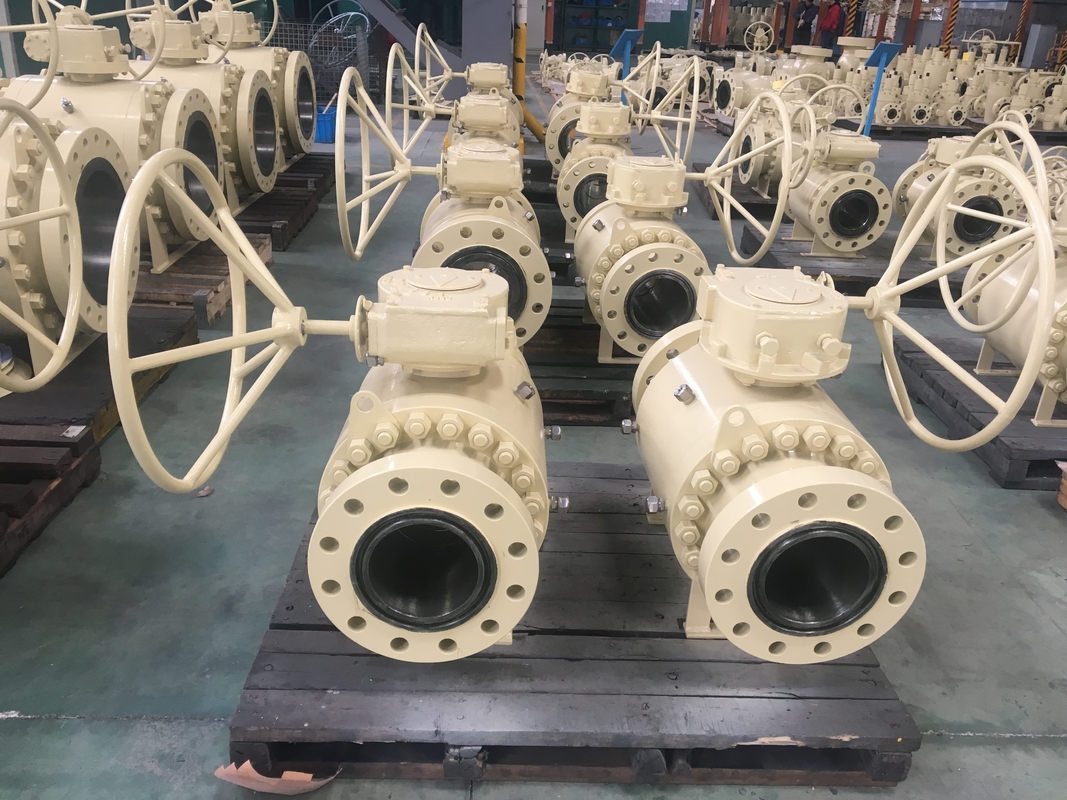

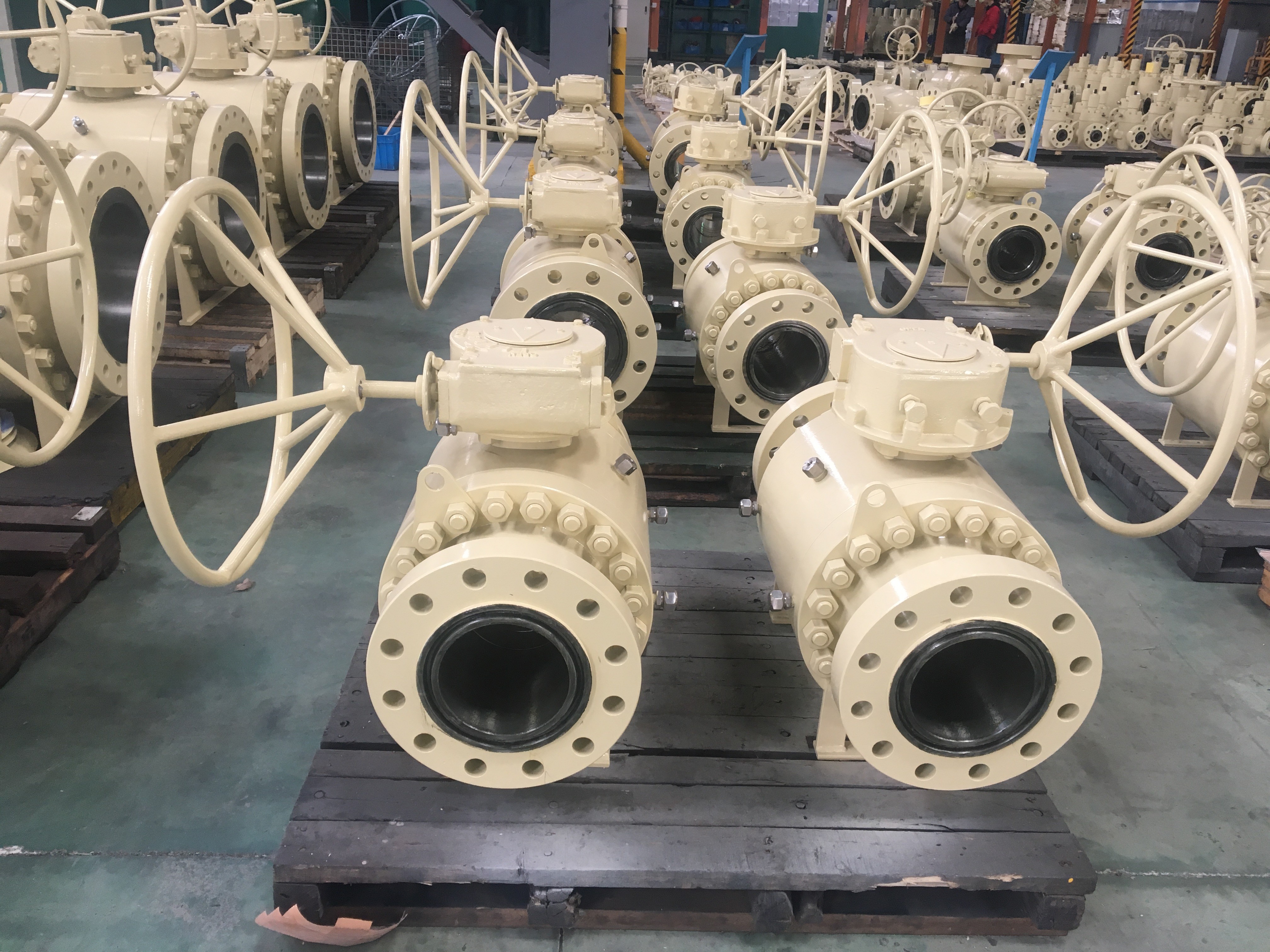

Anti Static Trunnion Ball Valve Blowout Proof and Corrosion Resistant

Basic Information
Certification: API 6D
Detail Information
Design Standard: API 6D/ASME B16.34 Body Material: Carbon Steel/Stainless Steel
Full Port/Reduced Port: Full Port Operation: Manual/Gear/Actuator
Fire Safe Design: API 607/ISO 10497 End Connections: Flanged/Butt Weld/Socket Weld
Blowout Proof Stem: Yes Seat Material: PTFE/RPTFE/PEEK
High Light:

Blowout Proof Trunnion Ball Valve

,

Anti Static Trunnion Ball Valve

,

Corrosion Resistant Trunnion Ball Valve


Product Description

Product Description:

The Trunnion Ball Valve is designed to meet the industry standards of API 6D and ASME B16.34, ensuring that it is reliable and durable. It is available in different pressure ratings ranging from Class 150 to Class 2500, making it suitable for use in various applications. This valve is also available in different sizes, ranging from 2 inches to 48 inches, to meet the needs of different industries.

The Trunnion Ball Valve is equipped with a blowout proof stem, which prevents the stem from being ejected from the valve body due to the pressure of the fluid. This feature ensures that the valve remains safe and functional even in high-pressure applications. Additionally, the valve is available in different end connections, including flanged, butt weld, and socket weld, making it easy to install and maintain.

In summary, the Trunnion Ball Valve is a reliable and durable valve that is designed to meet the needs of various industries. Its blowout proof stem, design standard, pressure rating, end connections, and size make it a versatile valve that can be used in different applications. Whether you are working in the oil and gas industry, chemical plants, or any other industry that requires the control of fluid flow, the Trunnion Ball Valve is an excellent choice.



Features:

  • Product Name: Trunnion Ball Valve
  • Application: Oil and Gas/Chemical/Power Plant
  • Blowout Proof Stem: Yes
  • Design Standard: API 6D/ASME B16.34
  • Fire Safe Design: API 607/ISO 10497
  • Full Port/Reduced Port: Full Port

This Trunnion Ball Valve is a type of side entry ball valve that is designed to meet the standards of API 6D and ASME B16.34. It is perfect for use in the Oil and Gas, Chemical, and Power Plant industries. With its blowout proof stem and fire safe design that meets API 607 and ISO 10497 standards, this valve is reliable and safe. Additionally, its full port design allows for maximum flow capacity.



Technical Parameters:

Product Attribute Technical Parameter
Valve Type Trunnion Mounted Valve
Design Standard API 6D/ASME B16.34
Size 2"-48"
Body Material Carbon Steel/Stainless Steel
End Connections Flanged/Butt Weld/Socket Weld
Pressure Rating Class 150-2500
Seat Material PTFE/RPTFE/PEEK
Operation Manual/Gear/Actuator
Top Entry/ Side Entry Side Entry
Full Port/Reduced Port Full Port


Applications:

One of the primary applications of the Trunnion Ball Valve is in the oil and gas industry, where it is used to control the flow of crude oil and natural gas. It is also used in chemical plants, where the valve helps control the flow of various chemicals, acids, and bases. Additionally, the Trunnion Ball Valve is used in power plants to regulate the flow of steam and other fluids.

The Trunnion Ball Valve is designed with a fire-safe feature, in compliance with API 607 and ISO 10497 standards. This ensures that the valve remains operational even during a fire outbreak, minimizing the risk of damage to the plant and ensuring safety for workers.

Overall, the Trunnion Ball Valve is a versatile valve that can be used in various industrial applications. Its anti-static and fire-safe features make it highly reliable and safe to use in critical applications. It is a popular choice for those looking for a durable and efficient valve to control the flow of fluids in pipelines.



Support and Services:

The Trunnion Ball Valve is a high-performance valve designed for various industries including oil and gas, petrochemical, and chemical. Our technical support and services for this product include:

  • Installation and commissioning support
  • Maintenance and repair services
  • Valve testing and certification
  • Design and engineering consultation
  • Training and education for proper valve operation and maintenance

Our team of experts is dedicated to providing excellent customer service and ensuring the optimal performance of our Trunnion Ball Valve in your application.



Packing and Shipping:

Product Packaging:

  • The trunnion ball valve will be securely packed in a durable cardboard box.
  • The valve will be surrounded by cushioning material to prevent any damage during transit.
  • Each valve will be individually labeled with its specifications and part number.

Shipping:

  • We offer worldwide shipping through our trusted logistics partners.
  • Shipping costs will be calculated based on the destination and weight of the package.
  • Customers will receive a tracking number to monitor the progress of their shipment.
  • Delivery times may vary depending on the destination and shipping method selected.


FAQ:

A trunnion ball valve is a type of quarter-turn valve that uses a ball-shaped disk to control the flow of fluid through a pipeline. It is designed with a fixed trunnion or shaft that supports the ball and ensures proper alignment and positioning, even under high pressure and temperature conditions.

Q2: What are the advantages of using a Trunnion Ball Valve?

Trunnion ball valves offer several advantages including:

  • High performance and durability in high-pressure and high-temperature applications
  • Minimal friction and torque during operation
  • Low maintenance requirements
  • Excellent sealing ability to prevent leakage
  • Wide range of sizes and materials for diverse applications
Q3: What are the types of Trunnion Ball Valve?

There are several types of trunnion ball valves, including:

  • Full bore trunnion ball valve
  • Reduced bore trunnion ball valve
  • Top entry trunnion ball valve
  • Side entry trunnion ball valve
  • Subsea trunnion ball valve
Q4: What materials are used in Trunnion Ball Valve construction?

Trunnion ball valves can be constructed using various materials depending on the application and operating conditions. Common materials include:

  • Carbon steel
  • Stainless steel
  • Alloy steel
  • Brass
  • Bronze
  • Titanium
  • Monoel
Q5: How do I choose the right Trunnion Ball Valve for my application?

Choosing the right trunnion ball valve requires consideration of several factors, including:

  • Operating pressure and temperature
  • Flow rate and volume
  • Fluid composition
  • Valve size and type
  • End connection type
  • Material selection
  • Valve actuation and automation requirements
