Side Entry Anti Static Trunnion Ball Valve with Blowout Proof

Basic Information
Place of Origin: CHINA
Brand Name: COOSAI
Certification: API6D API6F
Model Number: Q47F
Packaging Details: PLYWOOD CASE
Detail Information
Valve Type: Trunnion Ball Valve Pressure Rating: 600LB
Connection Type: Flange Seat Leakage: Class VI
Operation Temperature: Normal Temperature Range: Normal
Operation: Manual Test Standard: API 6D
High Light:

Anti Static Trunnion Ball Valve


Blowout Proof Trunnion Ball Valve


Anti Static Trunnion Ball Valve Blowout Proof

Product Description

Product Description:

The Trunnion Ball Valve is a trunnion mounted valve designed and manufactured to meet API 6D standards. It is an anti-static and manual operated valve. The face to face dimension is according to API 6D, and the normal operation temperature allows for wide application. The side entry design makes it easy for installation and maintenance. Moreover, this trunnion ball valve can be used for both on-off and regulation services.



  • Product Name: Trunnion Ball Valve
  • Seat Leakage: Class VI
  • Operation: Manual
  • Test Standard: API 6D
  • Valve Type: Trunnion Ball Valve
  • Design Standard: API 6D
  • Features: Side Entry Ball Valve, Trunnion Mounted Ball Valve, Side Entry Ball Valve

Technical Parameters:

Parameter Value
Operation Pressure 600LB
Operation Temperature Normal
Valve Type Trunnion Ball Valve
Face To Face API 6D
Size 600LB
Seat Leakage Class VI
Pressure Rating 600LB
Design Standard API 6D
Material Anti Static
Surface Treatment Anti-Static


Trunnion ball valve is a trunnion mounted ball valve designed for multiple industrial applications. It is made of anti-static materials, designed according to API 6D, with normal temperature and pressure rating of 600LB. It is suitable for connection with flange.

Trunnion ball valve is widely used in various industries such as oil and gas, chemical, power generation, water treatment, pharmaceutical and food processing. It is also suitable for applications with corrosive and abrasive media.

Thanks to its trunnion mounted design, trunnion ball valve provides maximum sealing performance at high pressure and temperature. Its anti-static construction also prevents static electricity generated by the media from causing sparks.

Trunnion ball valve is designed to provide superior performance and reliability. It is easy to maintain and repair, and can stand up to the most demanding industrial applications.


Support and Services:

Technical Support and Service for Trunnion Ball Valve

We provide comprehensive technical support and service for Trunnion Ball Valve, including:

  • 24/7 technical support service and FAQs
  • Pre-sales support and consultation
  • On-site installation and commissioning
  • Design optimization and customization
  • After-sales service and maintenance

Our experienced team is ready to provide you with the best technical support and service.


Packing and Shipping:

Packaging and Shipping

Trunnion Ball Valves are packaged in sturdy cardboard boxes to ensure they reach their destination in a safe and sound condition. The boxes are designed to provide protection from the elements, including moisture, dust, and abrasion. Each box is individually labeled with the product's specifications and dimensions, so that customers can easily identify the product that they have ordered.

Shipping of the valves is usually done through a reliable courier service, such as UPS or FedEx. The valves are carefully packed and secured in the boxes to prevent any damage during transit. Delivery time depends on the distance and the service provider, but generally, customers can expect their orders to arrive within 5-7 business days.



Q: What is a trunnion ball valve?
A: A trunnion ball valve is a quarter-turn rotational motion valve that uses a trunnion mounted ball to control flow. It is designed with two trunnion assemblies mounted on each side of the ball to ensure the ball remains in place during operation.
Q: What are the advantages of a trunnion ball valve?
A: Trunnion ball valves are known for their reliability, reduced operating torque, and tight shutoff. Additionally, they offer superior sealing performance and are suitable for a wide range of applications.
Q: What materials are used to make trunnion ball valves?
A: Trunnion ball valves are typically made from a variety of materials such as stainless steel, carbon steel, brass, and other alloys.
Q: What types of trunnion ball valves are available?
A: Trunnion ball valves are available in a variety of designs, including full bore, reduced bore, and multi-port designs.
Q: What are the pressure rating and temperature ranges for a trunnion ball valve?
A: Trunnion ball valves can handle pressures up to 6000 psi and temperatures ranging from -20°F to 600°F (-29°C to 315°C).

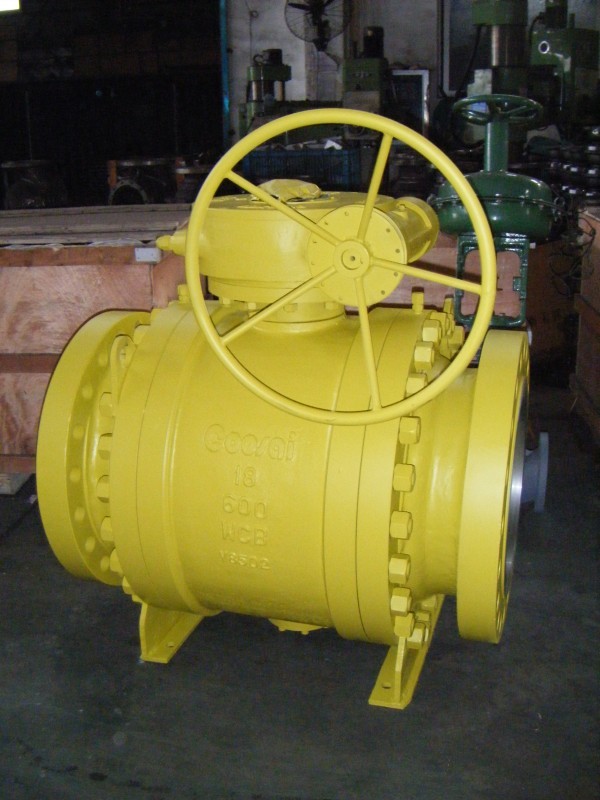

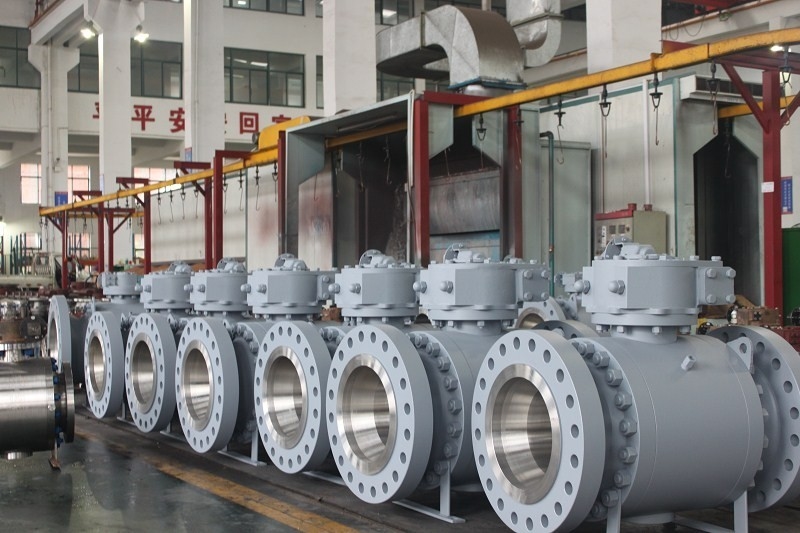

Side Entry Anti Static Trunnion Ball Valve with Blowout Proof 0Side Entry Anti Static Trunnion Ball Valve with Blowout Proof 1
