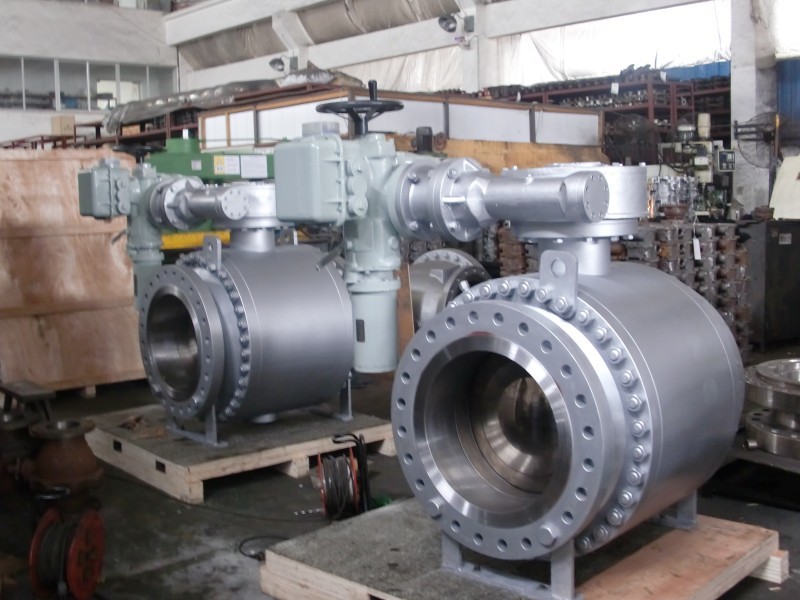

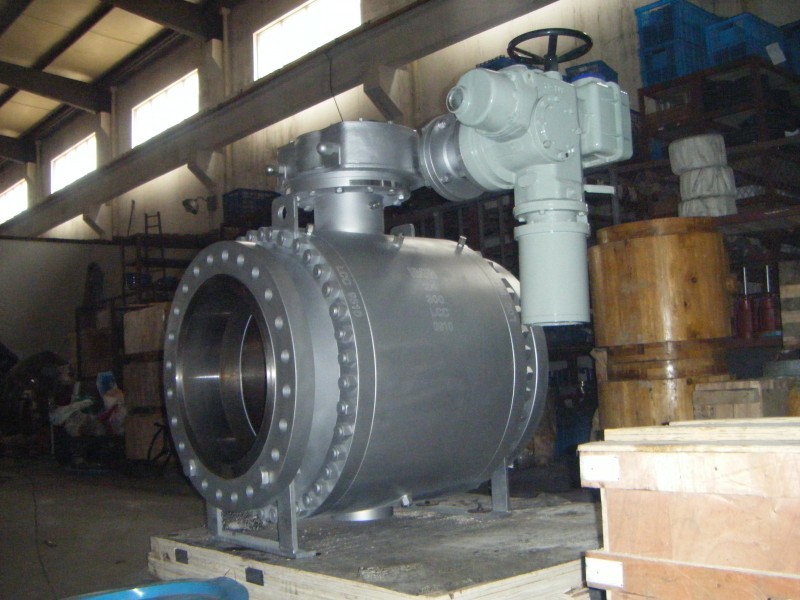

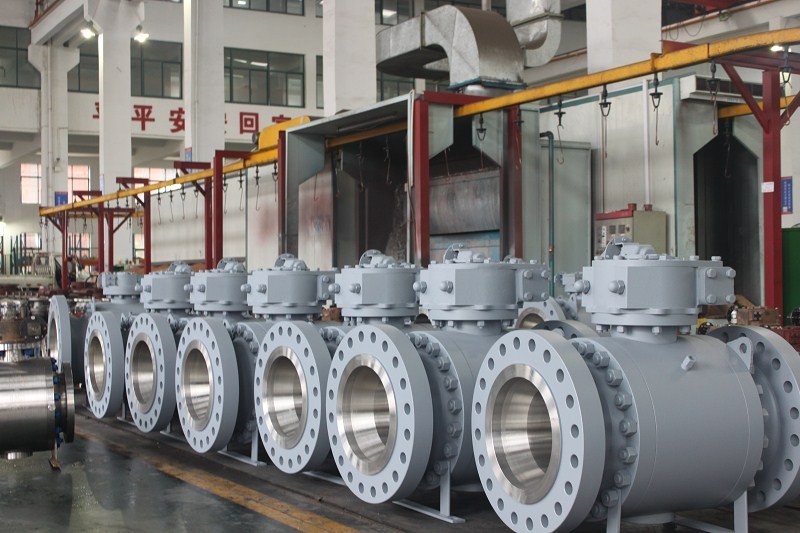

16 Inch 600LB Side Entry Trunnion Ball Valve

16 Inch 600LB Side Entry Trunnion Ball Valve

    • 16 Inch 600LB Side Entry Trunnion Ball Valve
    • 16 Inch 600LB Side Entry Trunnion Ball Valve
    • 16 Inch 600LB Side Entry Trunnion Ball Valve
  • 16 Inch 600LB Side Entry Trunnion Ball Valve

    Product Details:

    Place of Origin: China
    Brand Name: Coosai
    Certification: API6D,API607
    Model Number: Q47F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: Polywood cases
    Delivery Time: 2-15weeks
    Payment Terms: L/C,T/T
    Supply Ability: 20000 pcs per year
    Contact Now
    Detailed Product Description
    Size: NPS 2" To 60" Pressure: 150LB To 2500LB
    Temperature Range: -196℃~300℃ Low Temperatue, Normal Temperature And High Temperature Body And Trim Material: Cast Steel, WCB,ASTM A105, ASTM A350 LF2, ASTM A182 F304 F304L F316/F316L/F51 F53 F55,ASTM A351 CF8 CF8M CF3M ASTM A182 F6a 17-4PH
    Seat Material: PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat Body And Stem Sealing: Oring(FKM,FFKM NBR,FPM HNBR, VITON,EPDM, AFLAS), Spiral Wound Gasket(316SS+ Graphite) Packing(Graphite, PTFE)
    High Light:

    16 inch trunnion type ball valve

    ,

    600lb trunnion mounted ball valve

    ,

    trunnion type three piece ball valve

    16 inch 600LB Three Piece Side Entry Trunnion Type Ball Valve





    Trunnion Mounted ball valve are suitable for using on various kinds of pipelines of Class 150 to Class 2500, PN16~PN160, JIS 10K~ JIS 20K to cut off or turn on the pipeline medium, of which the operation types include worm gear, manul, pneumactic or electric actuators, being in general of flange connection, and butt welding end connection as well.



    Fire safe design

    Coosai ball valves ensures 100% pass of the fire safe test. As Coosai Ball valve applies two sealed design via O-ring seals and metal graphite spiral wound gasket. When the valve is on fire, non-metallic materials such as PTFE seat seals, gaskets ,O-ring seals,rubber etc will be damaged, meanwhile the outer layer of metal graphite spiral wound gasket provides a secondary seal. When the soft seat is burned, metal seat will automatically form a metal seal with ball under the urging of the spring which will effectively control the internal leakage and external leakage. Valve design fully accords with API 607, API 6FA, BS 6755, JB / T 6899 and other standards,

    16 Inch 600LB Side Entry Trunnion Ball Valve 0



    DOUBLE BLOCK & BLEED (DBB)

    When the ball is in the closed position, each seat seals off the process medium independently at the same time between the up/down stream and body cavity, it allows bleeding the trapped cavity pressure (DBB) through drain and vent valve. The double block and bleed function make it possible to flush the valve under pressure and verify that the seat are sealing properly.

    16 Inch 600LB Side Entry Trunnion Ball Valve 1



    DOUBLE ISOLATION & BLEED (DIB)

    Double piston effect seat, medium pressure, both upstream and downstream as well as in the body cavity, creates a resultant thrust that pushes the seat ring against the ball, valve with double piston effect seat rings require a cavity pressure relief to reduce the build-up of over pressure in the body cavity.

    16 Inch 600LB Side Entry Trunnion Ball Valve 2



    Sealing Options

    Soft seat: Metal to Metal O-Ring seal

    Simple structure reliable sealing Applicable to particulate Reliable sealing low torque meet customers' high

    wide application low cost. media conditions sealing reliability and low torque requirements

    16 Inch 600LB Side Entry Trunnion Ball Valve 3



    The ball is fixed by trunnion and stem for size 4” &smaller. Trunnion plate support for size 6” & larger

    16 Inch 600LB Side Entry Trunnion Ball Valve 4



    Main Material

    Body material Trim material Seal material Gasket/Packing
    WCB/LCB/CF8/CF8M/CF3/CF3M,ETC. SS410, SS420, SS304, SS316,ETC PTFE, RPTFE, PEEK, PPL, ETC. GRAPHITE. PTFE, PPL. ETC.




    Ball Valve Type Design and Manufacture Face to Face/End to End Flange Dimensions Pressure Temperature Rating Inspection and Test
    Split Flange ball valve BS5351 ANSI B16.10 ANSI B16.5 ANSI B16.34 API6D
    Fixed flange ball valve API6D/API608 API6D ANSI B16.47 ANSI B16.34 API598





    Design Feature

    1: Full bore or reduced bore
    2: Two-piece or Three-piece body structure
    3: Double Block & Bleed, Double isolation and bleed(DIB-1&DIB-2)
    4: Fire safe design(API 607)
    5: Blowout-proof system
    6: Anti-static design
    7: Self cavity relief
    8: Fugitive emission testing(optional)



    Design Data

    Design standard: API 6D,DIN3357-1 , EN12516-1

    Face to Face standard: API6D, ASME B16.10, DIN3202

    Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25

    Test & Inspect Standard: API 6D ,API 598

    Working Temperature: -196℃~610℃

    Connection type: RF,RTJ,FF,BW.BSPT,NPT

    Sour environment:NACE MR0175



    16 Inch 600LB Side Entry Trunnion Ball Valve 5

    16 Inch 600LB Side Entry Trunnion Ball Valve 6

    16 Inch 600LB Side Entry Trunnion Ball Valve 7

    16 Inch 600LB Side Entry Trunnion Ball Valve 8
