600lb ASME B16.5 Flanged Double Block And Bleed Valve

600lb ASME B16.5 Flanged Double Block And Bleed Valve

    • 600lb ASME B16.5 Flanged Double Block And Bleed Valve
    • 600lb ASME B16.5 Flanged Double Block And Bleed Valve
  • 600lb ASME B16.5 Flanged Double Block And Bleed Valve

    Product Details:

    Place of Origin: China
    Brand Name: Coosai
    Certification: API6D,API607,API6A
    Model Number: Q41/Q47

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiable
    Packaging Details: Polywood cases
    Delivery Time: 2-15 Weeks
    Supply Ability: 2000PCS per year
    Contact Now
    Detailed Product Description
    Size: NPS 1/2" To 16" Pressure: 150LB To 2500LB
    Temperature: -196℃~610℃ Low Temperatue, Normal Temperature And High Temperature Body And Trim Material: Cast Steel, WCB,ASTM A105, ASTM A350 LF2, ASTM A182 F304 F304L F316/F316L/F51 F53 F55,ASTM A351 CF8 CF8M CF3M ASTM A182 F6a 17-4PH
    Seat Material: PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat Body And Stem Sealing: Oring(FKM,FFKM NBR,FPM HNBR, VITON,EPDM, AFLAS), Spiral Wound Gasket(316SS+ Graphite) Packing(Graphite, PTFE)
    Operation: Wrench, Lever, Gearbo Design Feature: In Case Of One Of The Valve Failur,there Is Also A Reliable Seal,protect Pipelines. Bleed The Cavity Pressure Through A Needle Valve.
    High Light:

    asme b16.5 Double Block And Bleed Valve

    ,

    flanged twin ball valve

    ,

    450lb Double Block And Bleed Valve

    High Pressure Double Flanged Twin Ball Dual Discharge Valve Double Block Ball Valve





    Product Parameter:



    Design standard:APl6D

    Face To Face :ASME B16.10

    End Flanges: ASME B16.5



    Double block and bleed ball valve pressure:150L B~2500LB 1 .6MPa~32MPa

    Double block and bleed ball valve Technicalstandard:

    Inspection and Test :API 598



    Double block and bleed ball valve bore :4"~24"100~600mm



    DUAL DISCHARGE VALVE DOUBLE BLOCK



    Double block and bleed ball valves are designed in order to replace the multiple valves connection complex forms in traditional pipeline.



    Reduce the leakage in system to achieve quickly bleed ,close function. Double blocok and bleed ball valves maximum save installation space and Simpliflied installation program.



    Cut down the pressure in piping system. Convenient instrument Cleaning maintenance and reduce the costs.



    The valves are widely used in ectric power, petroleum chemial industy, metallurgy, Marine, oil, natural gas, coal gas, pharmaceutical and other industies hydraulic system pipeline.

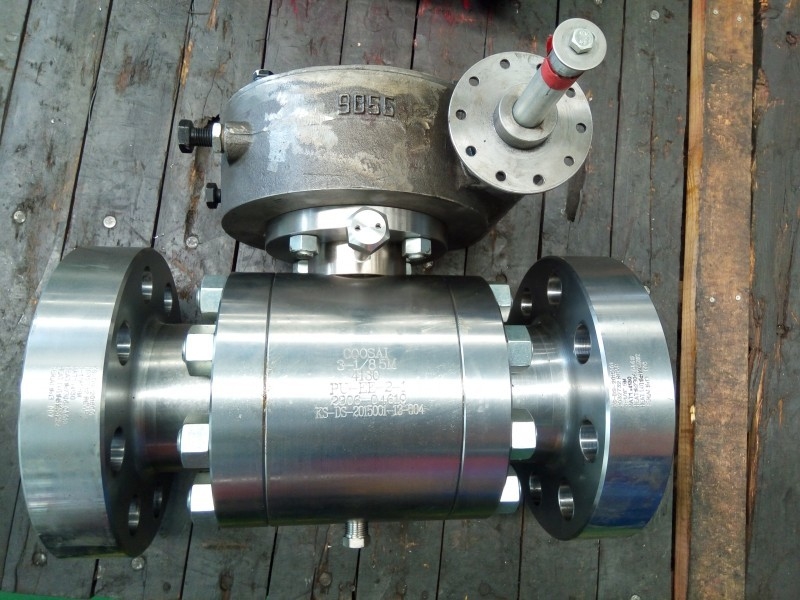

    600lb ASME B16.5 Flanged Double Block And Bleed Valve 0







    Connection type: RF,RTJ,FF,BW.BSPT,NPT
    Sour environment: NACE 0175 / ISO15156
    Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25
    Test & Inspect Standard: API 6D ,API 598,API 6A
    Working Temperature: -196℃~510℃

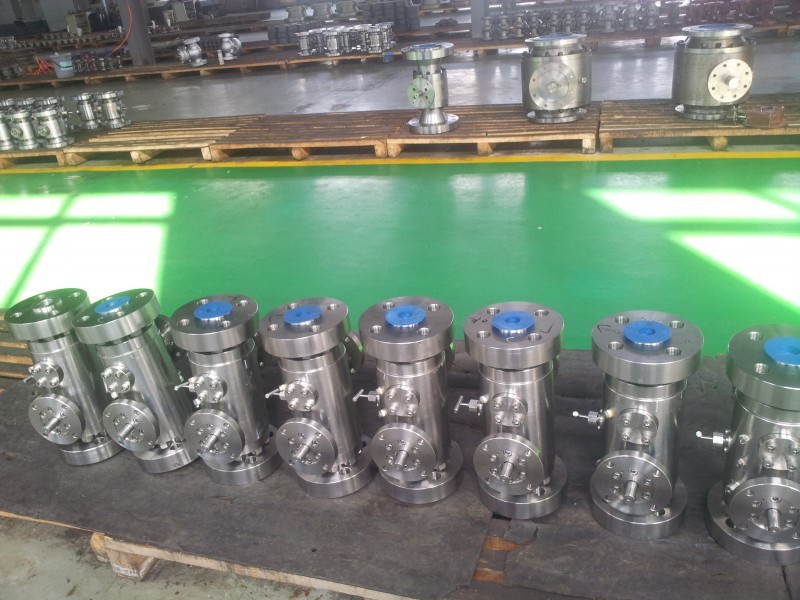

    600lb ASME B16.5 Flanged Double Block And Bleed Valve 1

    600lb ASME B16.5 Flanged Double Block And Bleed Valve 2
