| Place of Origin: | China |
|---|---|
| Brand Name: | Coosai |
| Certification: | API6D,API607 |
| Model Number: | Q41F |
| Minimum Order Quantity: | 1PC |
| Price: | 300USD |
| Packaging Details: | Polywood cases |
| Delivery Time: | 2-15 Weeks |
| Supply Ability: | 40000PCS per year |
| Size: | NPS: 1/2”~8” | Pressure: | 150LB To 2500LB |
|---|---|---|---|
| Temperature: | 196℃~610℃ Low Temperatue, Normal Temperature And High Temperature | Body And Trim Material: | Cast Steel, WCB,ASTM A105, ASTM A350 LF2, ASTM A182 F304 F304L F316/F316L/F51 F53 F55,ASTM A351 CF8 CF8M CF3M ASTM A182 F6a 17-4PH |
| Seat Material: | PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat | Body And Stem Sealing: | Oring(FKM,FFKM NBR,FPM HNBR, VITON,EPDM, AFLAS), Spiral Wound Gasket(316SS+ Graphite) Packing(Graphite, PTFE) |
| Operation: | Wrench, Lever, Gearbox, Pneumatic, Hydraulic, Electric. | Design Feature: | Casting ,Forging, Full Bore,Reduced Bore,Uni-body,Split Body,Three-pc Ball Valve,Side Entry Design,Split Body, Side Entry Design,Metal To Metal Sealing, |
| High Light: | sw ends Forged Ball Valve,f316 3 piece ball valve,bs 6755 forged floating ball valve |
||

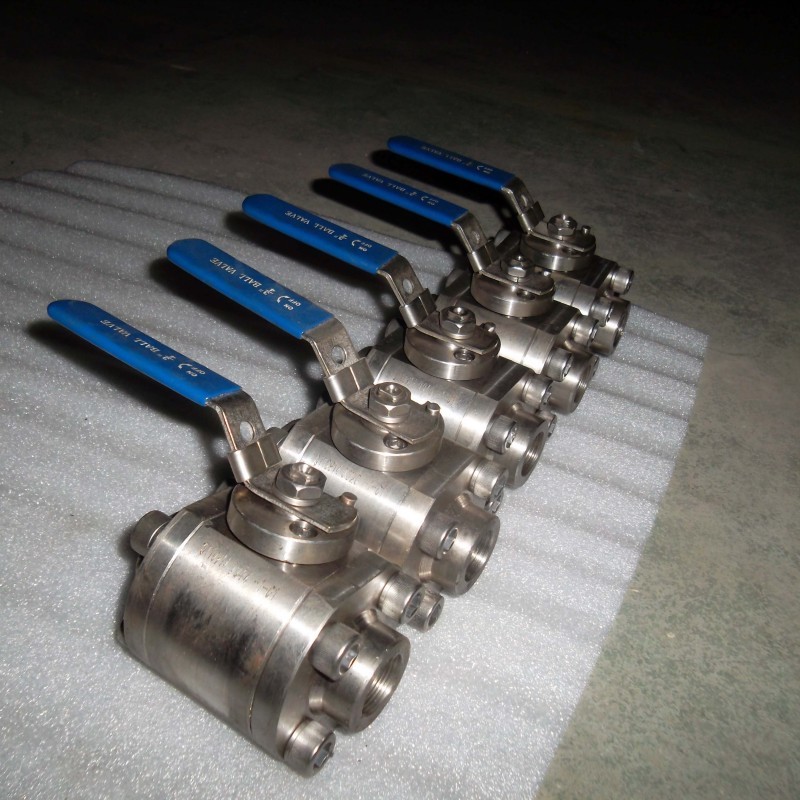

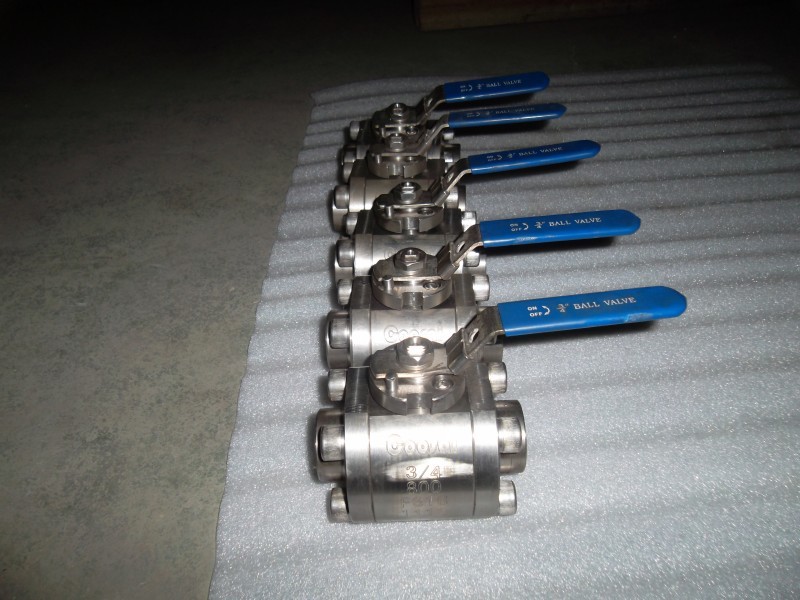

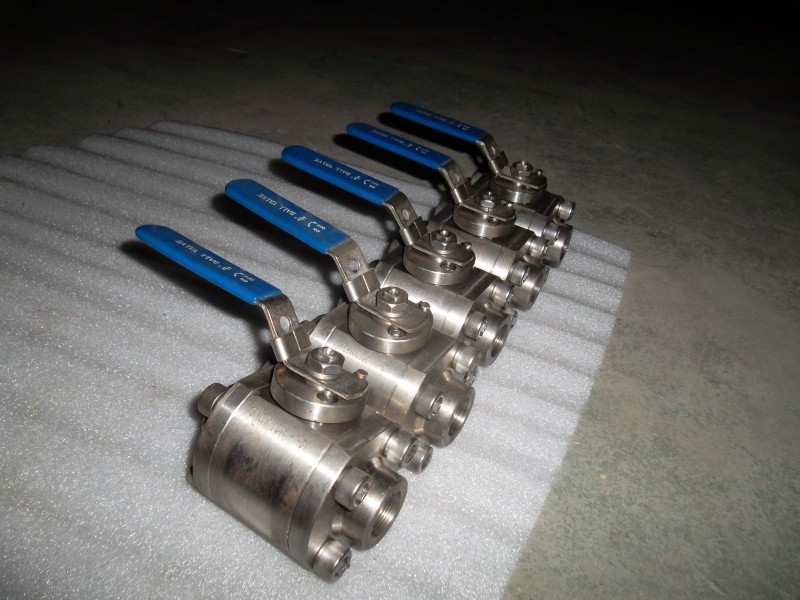

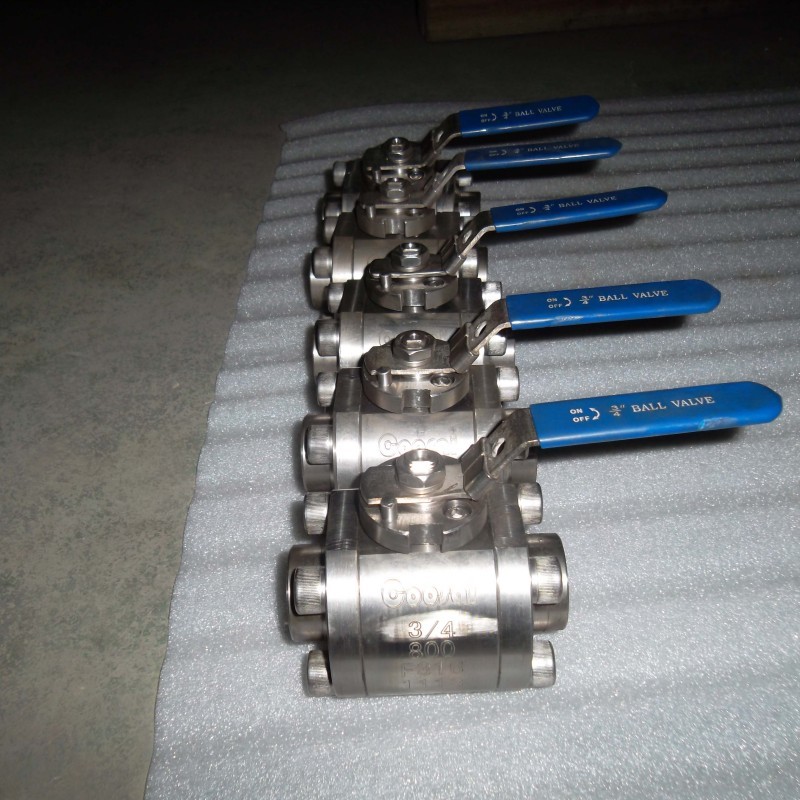

Three Pieces Forging F316 Ball Valve SW ends
Blow-out proof stem:
The stem is made separately from the ball with integral T-type round shoulder, retained by bland .(other designs are Available on request)
Anti-static device:
Spring plus graphite type anti-static device are applied between the ball ,stem, gland Flange and body to keep the electrical Continuity between all the metallic components . And ensure the resistance lower than the most severe service requirement.
Fire safe design
Coosai ball valves ensures 100% pass of the fire safe test.All the possible external leakage point between stem and body,body and adapter applies two sealed design,primary O-ring seals and secondary metal graphite spiral wound gasket. When the O-Ring were burned, the secondary stainless steel+graphite still can prevent the process medium from external leakage . Valve design fully accords with API 607, API 6FA, BS 6755, JB / T 6899 and other standards,
Fire seals lip, when the soft seat were burned, the ball will be pushed to the seals lip and form a seal in emergence to prevent large spill.
Sealing Options
Soft seat Metal to Metal O-Ring seal
Simple structure reliable sealing Applicable to particulate Reliable sealing low torque meet customers' high
wide application low cost. media conditions sealing reliability and low torque requirements
Design Data
Design standard: API 6D,DIN3357-1 , EN12516-1
Face to Face standard: API6D, ASME B16.10, DIN3202
Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25
Test & Inspect Standard: API 6D ,API 598
Working Temperature: -196℃~610℃
Connection type: RF,RTJ,FF,BW.BSPT,NPT
Sour environment:NACE MR0175
Design Feature
1: Full bore or reduced bore
2: Two-Piece downstream sealing
3: Fire safe design(API 607)
4: Blowout-proof system
5: Anti-static design
6: Fugitive emission testing(optional)
| Ball Valve Type | Design and Manufacture | Face to Face/End to End | Flange Dimensions | Pressure Temperature Rating | Inspection and Test |
| Split Flange ball valve | BS5351 | ANSI B16.10 | ANSI B16.5 | ANSI B16.34 | API6D |
| Fixed flange ball valve | API6D/API608 | API6D | ANSI B16.47 | ANSI B16.34 | API598 |
Main Material
| Body material | Trim material | Seal material | Gasket/Packing |
| WCB/LCB/CF8/CF8M/CF3/CF3M,ETC. | SS410, SS420, SS304, SS316,ETC | PTFE, RPTFE, PEEK, PPL, ETC. | GRAPHITE. PTFE, PPL. ETC. |
The ball is seat supported for size 8” and smaller.
