|Size:||Size: NPS 2" To 48"||Pressure:||150LB To 2500LB|
|Temperature:||-196℃~610℃ Low Temperatue, Normal Temperature And High Temperature||Body And Trim:||Cast Steel, WCB,ASTM A105, ASTM A350 LF2, ASTM A182 F304 F304L F316/F316L/F51 F53 F55,ASTM A351 CF8 CF8M CF3M ASTM A182 F6a 17-4PH|
|Seat Material:||PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat||Body And Stem Sealing:||Oring(FKM,FFKM NBR,FPM HNBR, VITON,EPDM, AFLAS), Spiral Wound Gasket(316SS+ Graphite) Packing(Graphite, PTFE)|
|Operation:||Wrench, Lever, Gearbox, Pneumatic, Hydraulic, Electric.||Design Feature:||Casting ,Forging, Full Bore,Reduced Bore,Integral Body,Three-pc Ball Valve,Side Entry Design,Split Body, Top Entry Design,Metal To Metal Sealing,|
fire safe top entry ball valve,
750lb Full Bore Ball Valve,
full bore 4 way ball valve

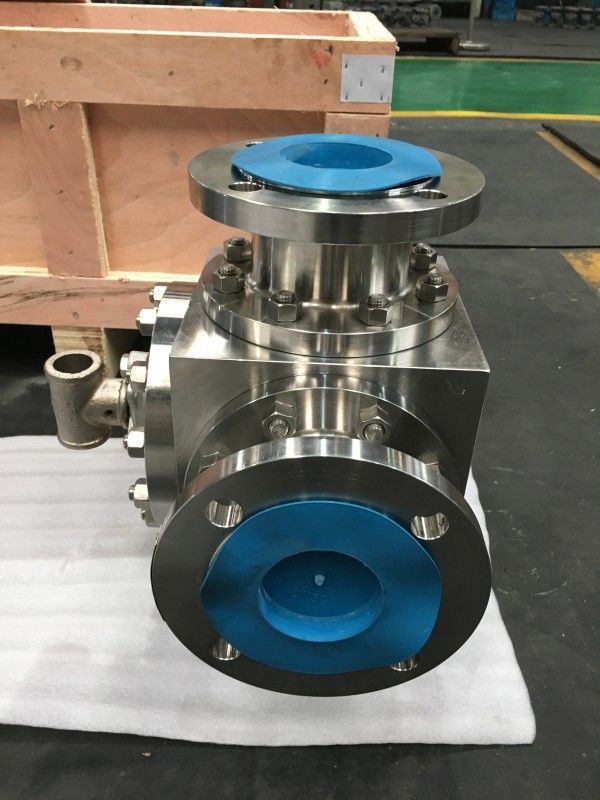

Four Way full bore Ball Valve
Three way ball valves are suitable for using on various kinds of pipelines of Class150 ~ Class300,PN16- PN40 for switching, dividing, and combining medium flow, of which the operation manners include manual, worm gear, pneumatic or electric actuators, connection manners are in general of flanges. As required by customers ,the other type of connection is available too.
L type three way ball valve (type of Q44) is used for pipelines to switch the flow direction. being able to Switch on two flow lines perpendicular with each other. T type three way ball valve (type Q45).
May be used to divide, combine or switch the flow direction. T type ball passage is able to switch on three flow lines Or swich on two of the three flow lines. T typee ball valve may realize two three or four seats of the functions, however, the specic valve design must draw a distinction between them to realize different Application requirement so as for coosai company to make correct design and fitting. Regarding the general Application requrement so as for coosai company to make correct design and fitting. Regarding the general Clear to the Customers for making right selection. There are many kinds of three way ball valves with unique Designs made by coosai company to meet customers' special working conditions and requirement. For the Common three way ball valves, coosai company adopts in general the design of two seats. As required by customers, coosai company can also design and manufacture the three way ball valves with four seats.
1: Full bore or reduced bore
2: Integral body structure
3: Double Block & Bleed, Double isolation and bleed(DIB-1&DIB-2)
4: Fire safe design(API 607)
5: Blowout-proof system
6: Anti-static design
7: Self cavity relief
8: Fugitive emission testing(optional)
The ball is fixed by trunnion and stem for size 4” &smaller. Trunnion plate support for size 6” & larger
|Pressure-Temperature Rating||ASME B16.34|
|Face to Face||API6D|
|Flange Ends||ASME B16.5, ASME B16. 47|
|Buttwelding ends||ASME B16.25|
|Inspection & Test||API598/ API6D|
|Test Pressure||Shell Test||CL150||CL300||CL600||CL900||CL1500|
Design standard: API 6D,DIN3357-1 , EN12516-1
Face to Face standard: API6D, ASME B16.10, DIN3202
Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25
Test & Inspect Standard: API 6D ,API 598
Working Temperature: -196℃~610℃
Connection type: RF,RTJ,FF,BW.BSPT,NPT
Sour environment:NACE MR0175
DOUBLE BLOCK & BLEED (DBB)
When the ball is in the closed position, each seat seals off the process medium independently at the same time between the up/down stream and body cavity, it allows bleeding the trapped cavity pressure (DBB) through drain and vent valve. The double block and bleed function make it possible to flush the valve under pressure and verify that the seat are sealing properly.
Soft seat: Metal to Metal O-Ring seal
Simple structure reliable sealing Applicable to particulate Reliable sealing low torque meet customers' high
wide application low cost. media conditions sealing reliability and low torque requirements
Blow-out proof stem:
The stem is made separately from the ball with integral T-type round shoulder, retained by bland .(other designs are Available on request)
Spring plus graphite type anti-static device are applied between the ball ,stem, gland Flange and body to keep the electrical Continuity between all the metallic components . And ensure the resistance lower than the most severe service requirement.
Grease injection device
For DN150 (NPS 6) & larger the stem and the valve seat are provided with a sealing grease injection device, For DN125 & smaller, we can provide the sealing grease injection device according to customer requirements. When the O-ring is damaged by accident, by injected sealant sealed to prevent the media through the valve seat ring and stem leaks.
Fire safe design
Coosai ball valves ensures 100% pass of the fire safe test. As Coosai Ball valve applies two sealed design via O-ring seals and metal graphite spiral wound gasket. When the valve is on fire, non-metallic materials such as PTFE seat seals, gaskets ,O-ring seals,rubber etc will be damaged, meanwhile the outer layer of metal graphite spiral wound gasket provides a secondary seal. When the soft seat is burned, metal seat will automatically form a metal seal with ball under the urging of the spring which will effectively control the internal leakage and external leakage. Valve design fully accords with API 607, API 6FA, BS 6755, JB / T 6899 and other standards,
DOUBLE ISOLATION & BLEED (DIB)
Double piston effect seat, medium pressure, both upstream and downstream as well as in the body cavity, creates a resultant thrust that pushes the seat ring against the ball, valve with double piston effect seat rings require a cavity pressure relief to reduce the build-up of over pressure in the body cavity.
