|Size:||NPS 2" To 60"||Pressure:||150LB To 2500LB|
|Temperature Range:||-196℃~300℃ Low Temperatue, Normal Temperature And High Temperature||Body And Trim Material:||Cast Steel, WCB,ASTM A105, ASTM A350 LF2, ASTM A182 F304 F304L F316/F316L/F51 F53 F55,ASTM A351 CF8 CF8M CF3M ASTM A182 F6a 17-4PH|
|Seat Material:||PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat||Body And Stem Sealing:||Oring(FKM,FFKM NBR,FPM HNBR, VITON,EPDM, AFLAS), Spiral Wound Gasket(316SS+ Graphite) Packing(Graphite, PTFE)|
bw ends side entry ball valve,
trunnion type side entry ball valve,
api 6d trunnion type ball valve

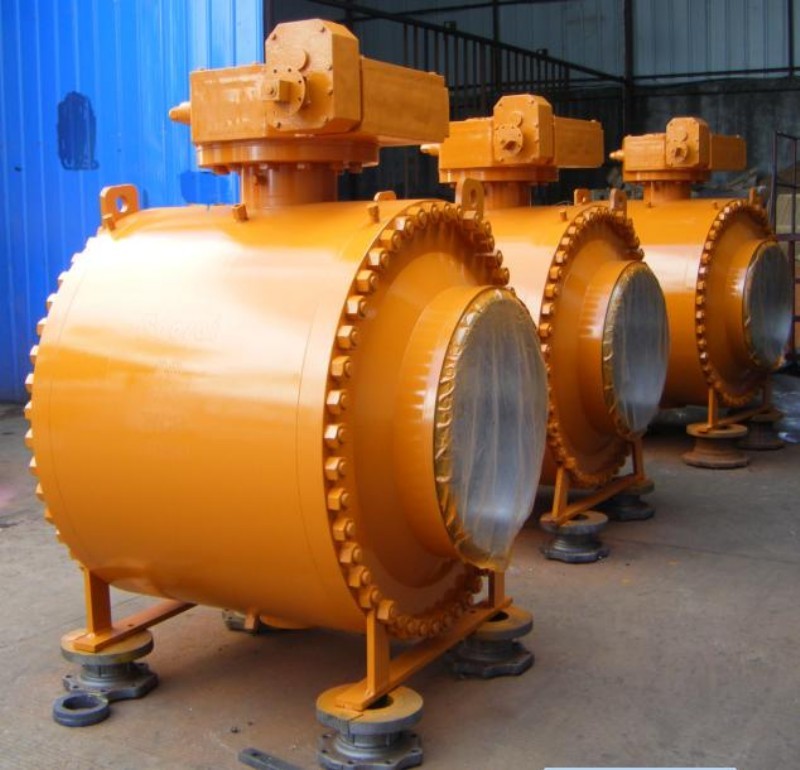

Side Entry Trunnion Type Ball Valve BW Ends
|Ball Valve Type||Design and Manufacture||Face to Face/End to End||Flange Dimensions||Pressure Temperature Rating||Inspection and Test|
|Split Flange ball valve||BS5351||ANSI B16.10||ANSI B16.5||ANSI B16.34||API6D|
|Fixed flange ball valve||API6D/API608||API6D||ANSI B16.47||ANSI B16.34||API598|
|Body material||Trim material||Seal material||Gasket/Packing|
|WCB/LCB/CF8/CF8M/CF3/CF3M,ETC.||SS410, SS420, SS304, SS316,ETC||PTFE, RPTFE, PEEK, PPL, ETC.||GRAPHITE. PTFE, PPL. ETC.
Design standard: API 6D,DIN3357-1 , EN12516-1
Face to Face standard: API6D, ASME B16.10, DIN3202
Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25
Test & Inspect Standard: API 6D ,API 598
Working Temperature: -196℃~610℃
Connection type: RF,RTJ,FF,BW.BSPT,NPT
Sour environment:NACE MR0175
1: Full bore or reduced bore
2: Two-piece or Three-piece body structure
3: Double Block & Bleed, Double isolation and bleed(DIB-1&DIB-2)
4: Fire safe design(API 607)
5: Blowout-proof system
6: Anti-static design
7: Self cavity relief
8: Fugitive emission testing(optional)
Trunnion Mounted ball valve are suitable for using on various kinds of pipelines of Class 150 to Class 2500, PN16~PN160, JIS 10K~ JIS 20K to cut off or turn on the pipeline medium, of which the operation types include worm gear, manul, pneumactic or electric actuators, being in general of flange connection, and butt welding end connection as well.
Soft seat: Metal to Metal O-Ring seal
Simple structure reliable sealing Applicable to particulate Reliable sealing low torque meet customers' high
wide application low cost. media conditions sealing reliability and low torque requirements
Fire safe design
Coosai ball valves ensures 100% pass of the fire safe test. As Coosai Ball valve applies two sealed design via O-ring seals and metal graphite spiral wound gasket. When the valve is on fire, non-metallic materials such as PTFE seat seals, gaskets ,O-ring seals,rubber etc will be damaged, meanwhile the outer layer of metal graphite spiral wound gasket provides a secondary seal. When the soft seat is burned, metal seat will automatically form a metal seal with ball under the urging of the spring which will effectively control the internal leakage and external leakage. Valve design fully accords with API 607, API 6FA, BS 6755, JB / T 6899 and other standards,
Blow-out proof stem:
The stem is made separately from the ball with integral T-type round shoulder, retained by bland .(other designs are Available on request)
Spring plus graphite type anti-static device are applied between the ball ,stem, gland Flange and body to keep the electrical Continuity between all the metallic components . And ensure the resistance lower than the most severe service requirement.
Grease injection device
For DN150 (NPS 6) & larger the stem and the valve seat are provided with a sealing grease injection device, For DN125 & smaller, we can provide the sealing grease injection device according to customer requirements. When the O-ring is damaged by accident, by injected sealant sealed to prevent the media through the valve seat ring and stem leaks.
DOUBLE ISOLATION & BLEED (DIB)
Double piston effect seat, medium pressure, both upstream and downstream as well as in the body cavity, creates a resultant thrust that pushes the seat ring against the ball, valve with double piston effect seat rings require a cavity pressure relief to reduce the build-up of over pressure in the body cavity.
DOUBLE BLOCK & BLEED (DBB)
When the ball is in the closed position, each seat seals off the process medium independently at the same time between the up/down stream and body cavity, it allows bleeding the trapped cavity pressure (DBB) through drain and vent valve. The double block and bleed function make it possible to flush the valve under pressure and verify that the seat are sealing properly.
The ball is fixed by trunnion and stem for size 4” &smaller. Trunnion plate support for size 6” & larger
