|Silent Check Valve:||Axial Flow Check Valve||Material:||Stainless Steel|
|Temperature Of Media:||High Temperature||Media:||Water,liquid,gas|
|Pressure:||Medium Pressure. High Pressure,Low Pressure|
1500lb axial check valve,
rf ends silent check valve
Silent Check Valve , Axial Flow Check Valve , SS Check Valve,Cast Steel Check Valve

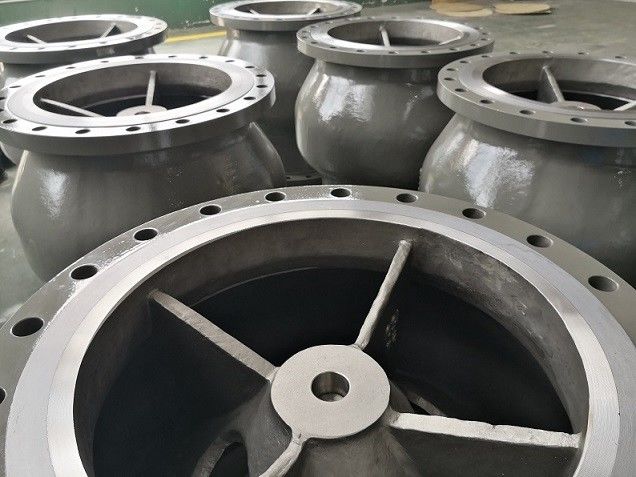

Axial Flow Check Valve (Silent check valve)
Coosai Axial Flow check valve have Streamlined flow path through full-port expanded body avoids turbulence and prevents erosion and vibration. Process downtime and maintenance costs are eliminated. Intelligent use of venture results in static and dynamic performance, axial flow check valve has become the preferred choice for special applications.
1) Technique specification
Nominal Dimension: 2”-64”
Nominal Pressure: Class 150-1500
Connection type: RF,RTJ,FF
Casting Material: CS,SS, DSS, LTCS,Monel,Alloy steel,Aluminum Bronze
|Type||Size||Pressure -Class||Connection type|
|Silent check valve||2”- 64”||150LB -1500LB||RF,RTJ. FF,BW|
2) Design features
Low pressure drop
The full opening flow passage and high-pressure recovery of the venturi-shaped body result in very low pressure loss: reduced operating cost of pumps and compressors.
Axial flow check valve can been for both horizontal and vertical pipeline installation.
Coosai Axial Flow Check Valve designs use no soft parts and therefore inherently fire-safe. Various other non-return valve designs rely on external devices like counterweights and slam retarders to operate satisfactorily. Those do not allow buried installation, are space consuming and require regular maintenance. The Coosai Axial Flow Check Valve can be buried or installed in locations where space or weight is at a premium. The Coosai Axial Flow Check Valve normally does not require maintenance.
3) Main Standard
Design Standard: API 6D, ASME B16.34
Face to Face Standard: MFR
Connection standard :ASME B16.5, ASME B16.47
Test & Inspect Standard: API 598
|6||Shaft sleeve||A276 316|
