|Material:||Stainless Steel,duplex Steel 2205||Temperature Of Media:||High Temperature|
|Media:||Water,liquid,gas||Pressure:||Medium Pressure. High Pressure,Low Pressure|
64" axial flow check valve,
api 6d ball type check valve
High Pressure Axial Flow -Silent Check Valve , Silent Check Valve , Ball Type Check Valve,Cast Steel Check Valve
Axial Flow Check Valve (Silent check valve)
Coosai Axial Flow check valve have Streamlined flow path through full-port expanded body avoids turbulence and prevents erosion and vibration. Process downtime and maintenance costs are eliminated. Intelligent use of venture results in static and dynamic performance, axial flow check valve has become the preferred choice for special applications.
1) Design features
Axial flow check valve can been for both horizontal and vertical pipeline installation.
Low pressure drop
The full opening flow passage and high-pressure recovery of the venturi-shaped body result in very low pressure loss: reduced operating cost of pumps and compressors.
Coosai Axial Flow Check Valve designs use no soft parts and therefore inherently fire-safe. Various other non-return valve designs rely on external devices like counterweights and slam retarders to operate satisfactorily. Those do not allow buried installation, are space consuming and require regular maintenance. The Coosai Axial Flow Check Valve can be buried or installed in locations where space or weight is at a premium. The Coosai Axial Flow Check Valve normally does not require maintenance.
2) Technique specification
Nominal Dimension: 2”-64”
Nominal Pressure: Class 150-1500
Connection type: RF,RTJ,FF
Casting Material: CS,SS, DSS, LTCS,Monel,Alloy steel,Aluminum Bronze
3) Main Standard
Design Standard: API 6D, ASME B16.34
Test & Inspect Standard: API 598
Face to Face Standard: MFR
Connection standard :ASME B16.5, ASME B16.47

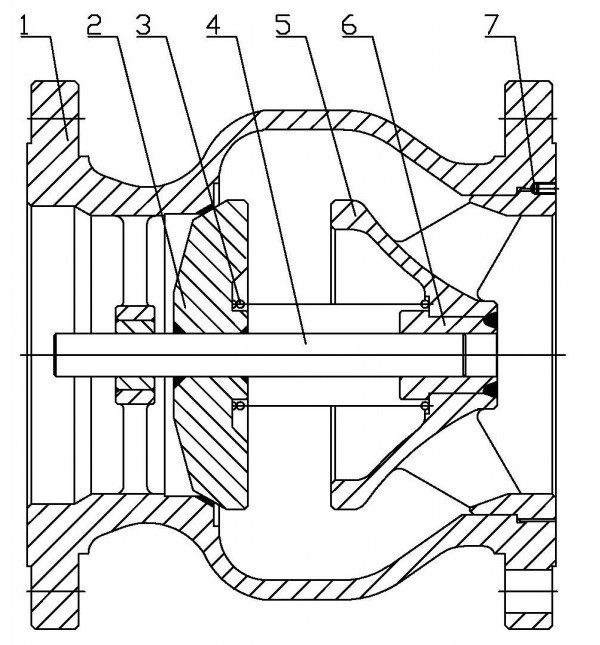

|6||Shaft sleeve||A276 316|
