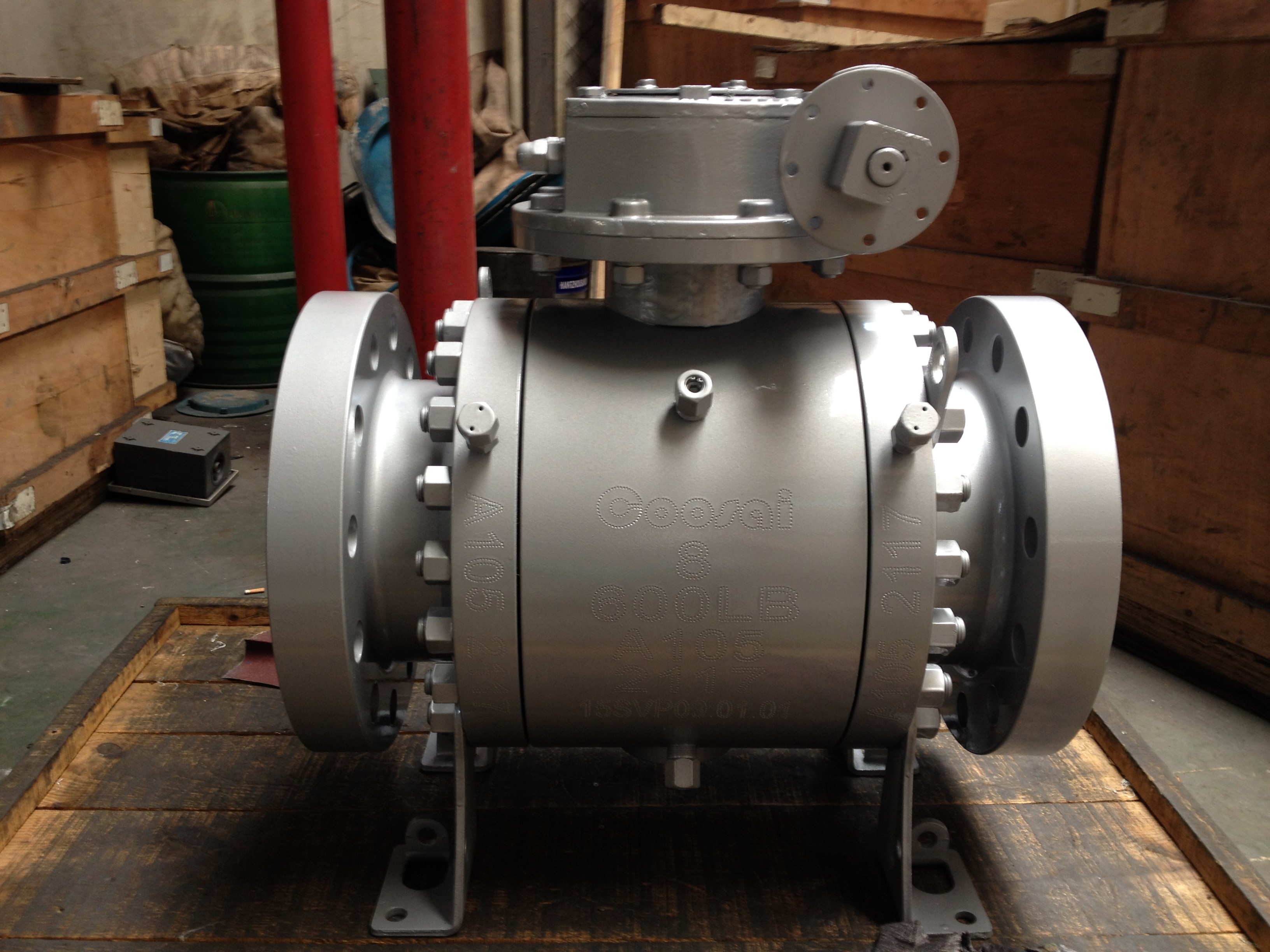

Double Block Design Trunnion Type Ball Valve For Smooth Operation

Basic Information
Detail Information
Top Entry/ Side Entry: Side Entry Anti-Static Design: API 608
End Connections: Flanged/Butt Weld/Socket Weld Size: 2"-48"
Pressure Rating: Class 150-2500 Operation: Manual/Gear/Actuator
Full Port/Reduced Port: Full Port Application: Oil And Gas/Chemical/Power Plant
High Light:

Smooth trunnion type ball valve

,

Double Block Trunnion Ball Valve

,

trunnion type ball valve


Product Description

Product Description:

One of the key features of the Trunnion Ball Valve is its blowout proof stem. This ensures that the stem stays in place even under extreme pressure or temperature, preventing any potential hazards or accidents.

As a trunnion ball valve, this valve is designed with an additional mechanical anchoring at the top and bottom of the ball. This allows for greater support and reduces the torque required to operate the valve.

The Trunnion Ball Valve is a side entry ball valve, meaning that the ball can be accessed and replaced without removing the entire valve from the pipeline. This saves time and effort during maintenance and repair.

This valve has a pressure rating of Class 150-2500, making it suitable for high pressure and high temperature applications. It can handle a variety of fluids, including corrosive and abrasive ones.

The seat material of the Trunnion Ball Valve is available in PTFE, RPTFE, and PEEK. These materials are known for their excellent chemical resistance and low friction coefficient, ensuring a tight seal and smooth operation.

In summary, the Trunnion Ball Valve is a reliable and efficient valve that offers full port design, blowout proof stem, trunnion type ball valve, and side entry ball valve features. It has a wide range of applications due to its high pressure rating and seat material options.



Features:

  • Product Name: Trunnion Ball Valve
  • Application: Oil and Gas/Chemical/Power Plant
  • Seat Material: PTFE/RPTFE/PEEK
  • Anti-Static Design: API 608
  • Body Material: Carbon Steel/Stainless Steel
  • Port Type: Full Port
  • Valve Type: Trunnion Mounted Valve
  • Ball Type: Trunnion Mounted Ball Valve
  • Valve Mechanism: Lever/Gear/Pneumatic/Hydraulic


Technical Parameters:

Technical Parameter Description
Type Trunnion Mounted Ball Valve
Anti-Static Design API 608
Pressure Rating Class 150-2500
Fire Safe Design API 607/ISO 10497
Design Standard API 6D/ASME B16.34
Body Material Carbon Steel/Stainless Steel
Seat Material PTFE/RPTFE/PEEK
Size 2"-48"
Port Type Full Port
Blowout Proof Stem Yes
End Connections Flanged/Butt Weld/Socket Weld


Applications:

The Trunnion Ball Valve is designed according to API 6D/ASME B16.34 standards. These standards ensure that the valve can withstand high pressure and temperature, and it can meet the requirements of different applications. The valve is side entry, which means that the ball can be removed without removing the valve from the pipeline. This feature reduces downtime during maintenance and repair.

The Trunnion Ball Valve is equipped with a fire-safe design, which ensures that the valve can withstand fire exposure without leaking. The valve conforms to API 607/ISO 10497 standards, which means that it can withstand fire exposure for a specified period. This feature makes the valve a suitable choice for applications where fire safety is a concern.

The body of the Trunnion Ball Valve is made of carbon steel or stainless steel. Carbon steel is a popular choice for applications where strength and durability are required. Stainless steel is used in applications where high corrosion resistance is required. The material used for the body of the valve depends on the application requirements.

The Trunnion Ball Valve is suitable for a variety of applications, including oil and gas, chemical, and power industries. The valve can be used in pipelines, storage tanks, and other equipment that requires reliable shut-off and flow control. The Trunnion Ball Valve is an excellent choice for applications where high pressure, high temperature, and fire safety are a concern.



Support and Services:

The Trunnion Ball Valve is a high-performance industrial valve designed for long-lasting durability and reliable operation. Our product technical support and services include:

  • Installation guidance and recommendations
  • Maintenance and repair services
  • Technical documentation and specifications
  • Customization options to fit specific application needs
  • Training and education on valve operation, maintenance, and safety
  • 24/7 emergency support for critical situations

Our team of experienced engineers and technicians are dedicated to providing top-notch technical support and services to ensure optimal performance and longevity of our Trunnion Ball Valve product.



Packing and Shipping:

Product Packaging:

  • The trunnion ball valve will be packed in a sturdy cardboard box.
  • The box will be labelled with the product name, size, and quantity.
  • The valve will be securely cushioned with bubble wrap to prevent damage during transportation.

Product Shipping:

  • The trunnion ball valve will be shipped via a reputable courier service.
  • The customer will be provided with a tracking number to monitor the shipment.
  • The valve will be delivered to the address provided by the customer.
  • Delivery times may vary depending on the destination and shipping method chosen.


FAQ:

A Trunnion Ball Valve is a type of valve that uses a trunnion mounted ball to control the flow of liquids or gases through a pipeline. The ball is supported by bearings and is free to rotate within the valve body.

Q: What materials are Trunnion Ball Valves made of?

Trunnion Ball Valves can be made of a variety of materials, including stainless steel, carbon steel, and alloy steel. The material used depends on the specific application and the conditions under which the valve will be used.

Q: What are the advantages of using a Trunnion Ball Valve?

Trunnion Ball Valves offer several advantages over other types of valves. They have a low operating torque, which makes them easy to operate. They also have a tight seal, which prevents leaks, and they are resistant to wear and corrosion.

Q: What are some common applications for Trunnion Ball Valves?

Trunnion Ball Valves are commonly used in the oil and gas industry, as well as in chemical processing, power generation, and water treatment. They can be used to control the flow of liquids or gases through pipelines, and they are often used in high-pressure applications.

Q: How do I choose the right Trunnion Ball Valve for my application?

The right Trunnion Ball Valve for your application will depend on several factors, including the size of the pipeline, the pressure and temperature of the fluid or gas being transported, and the specific requirements of your application. Consulting with a valve expert can help you choose the right valve for your needs.
