| Place of Origin: | china |
|---|---|
| Brand Name: | Coosai |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Plywood case |
| Pressure Rating: | Class 150 | Material: | Carbon Steel |
|---|---|---|---|
| Application: | Oil And Gas, Chemical, Power, Water Treatment | Flange Standard: | ASME B16.5 |
| Face To Face Dimension: | ASME B16.10 | Design Standard: | API 6D |
| Connection Type: | Flanged | Temperature Rating: | Up To 400°F |
| High Light: | Stainless Steel Segment Ball Valve,High Pressure Segment Ball Valve,Segment Ball Control Valve |
||

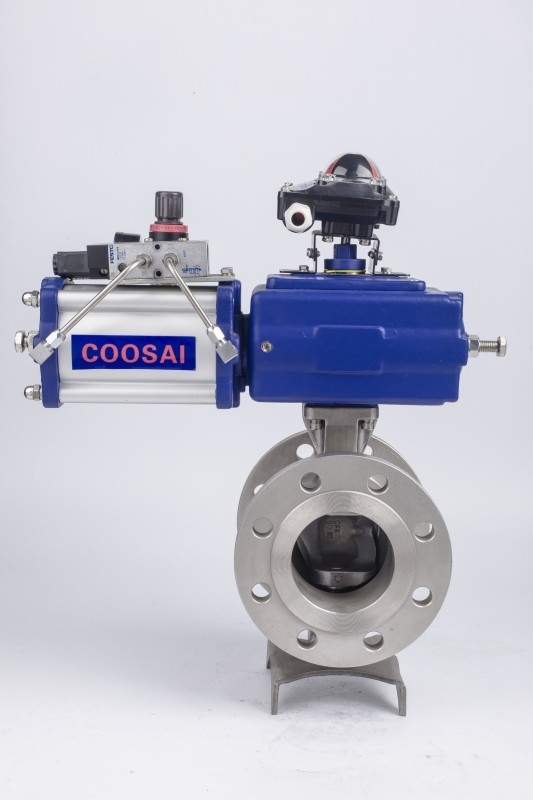

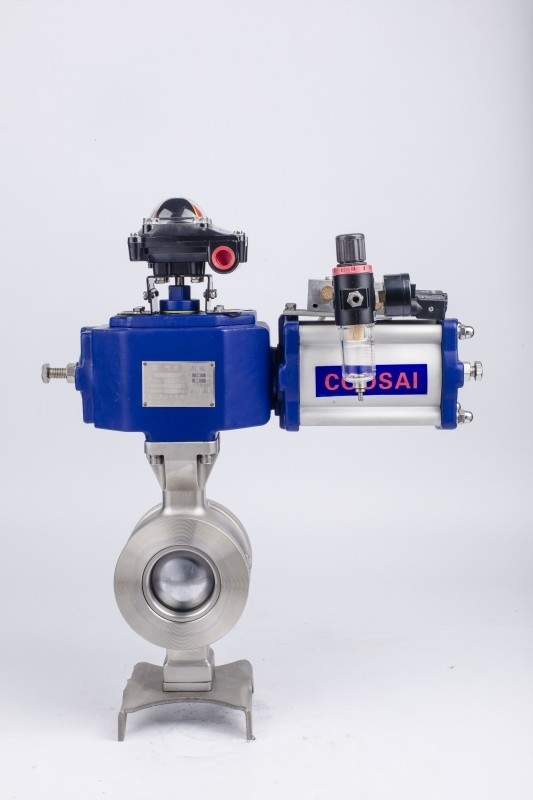

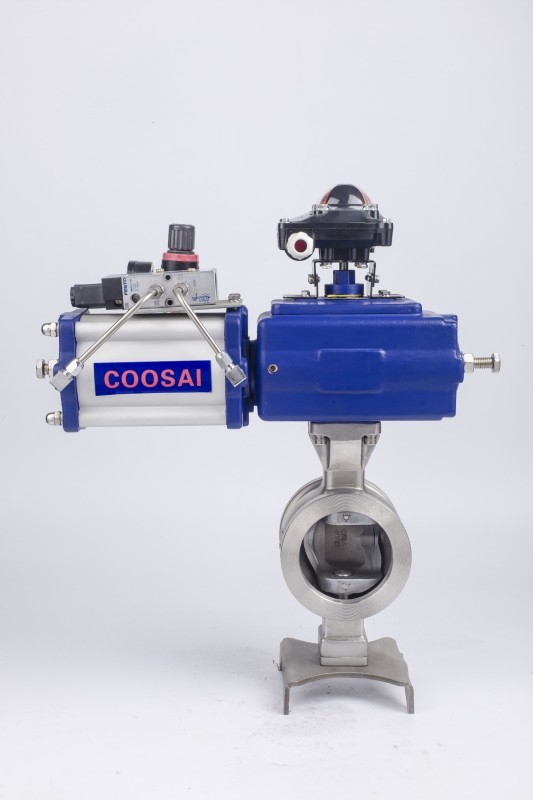

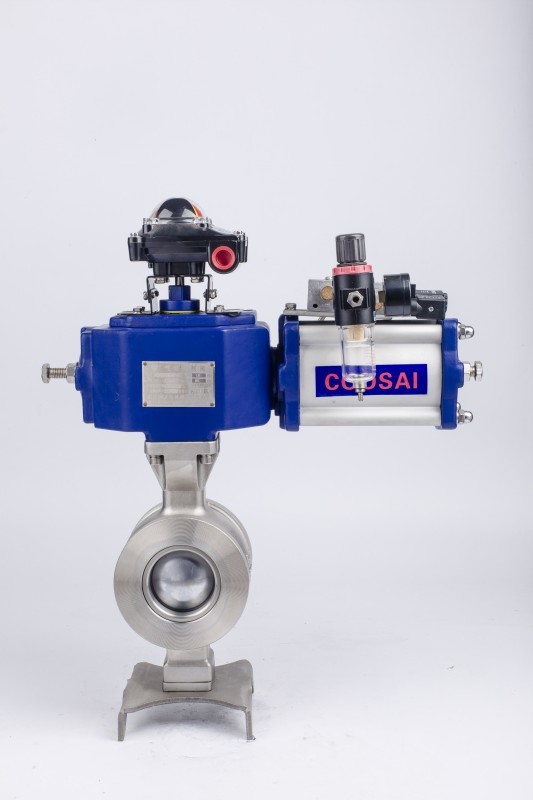

The Segment Ball Valve is a high-performance valve designed for precision flow control in a wide range of industries, including oil and gas, chemical, power, and water treatment. With its unique segmented v-ball design, this valve offers superior control and reliability, making it a top choice for many applications.
The Segment Ball Valve, also known as a V Notch Ball Valve or Segment Ball Valve, is a type of quarter-turn valve that uses a v-shaped ball to control flow. The ball is segmented to create a smaller opening, allowing for precise control of flow rates. This unique design also reduces turbulence, making it ideal for applications that require a high degree of accuracy.
The valve is manually operated, allowing for precise adjustments to be made as needed. It has a pressure rating of Class 150, making it suitable for use in high-pressure environments. It can also withstand temperatures of up to 400°F, making it a versatile choice for a variety of applications.
The Segment Ball Valve is commonly used in the following industries:
Overall, the Segment Ball Valve is a versatile and reliable solution for a wide range of flow control needs. Its unique design and durable construction make it a top choice for many industries, providing precise control and efficient operation. Contact us today to learn more about how this valve can benefit your specific application!
| Product Name | Segment Ball Valve |
|---|---|
| Seat Material | PTFE |
| Operation | Manual |
| Pressure Rating | Class 150 |
| Flange Standard | ASME B16.5 |
| Connection Type | Flanged |
| Type | Segment Ball Valve |
| Design Standard | API 6D |
| Temperature Rating | Up to 400°F |
| Material | Carbon Steel |
| Application | Oil and Gas, Chemical, Power, Water Treatment |
| Key Features | Segment Ball Valve, V Notch Ball Valve |
The Segment Ball Valve is designed to meet the flange standard ASME B16.5, ensuring its compatibility with various pipelines and applications. This standard specifies the dimensions and tolerances for flange connections, providing a reliable and secure connection for the valve.
The Segment Ball Valve is equipped with PTFE seats, which are known for their exceptional chemical resistance and low friction coefficient. This material allows for a tight seal and smooth operation of the valve, making it ideal for applications that involve corrosive or abrasive media.
The Segment Ball Valve is operated manually, providing an easy and cost-effective solution for controlling fluid flow. With a simple hand lever or gear mechanism, the valve can be opened or closed quickly and accurately, making it suitable for applications that require frequent adjustments.
The Segment Ball Valve features a flanged connection, which allows for easy installation and maintenance. The flanges can be bolted to the pipeline, creating a strong and leak-free connection. This type of connection is also beneficial for applications that require the valve to be mounted in a specific position.

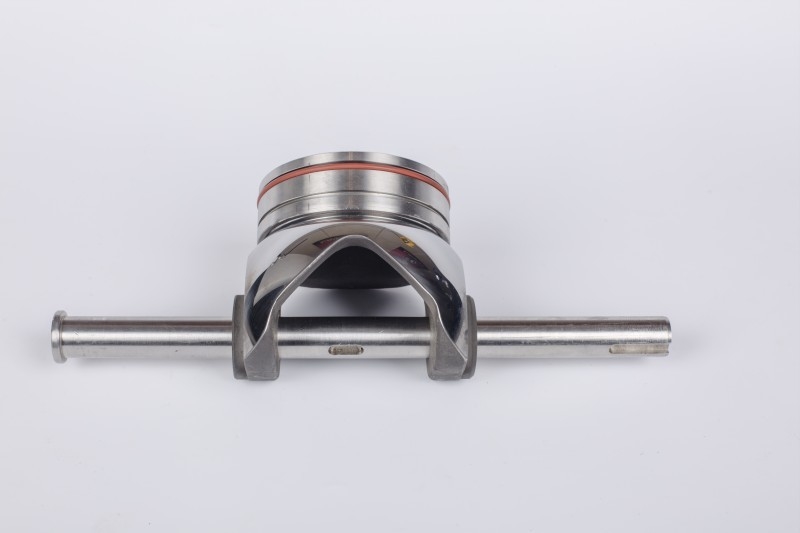

The Segment Ball Valve, also known as Segmented V Ball Valve or Segment Ball Control Valve, is a type of rotary valve that has a segmented ball as its closing element. This unique design allows for a precise and linear flow control, making it suitable for applications that require accurate regulation of flow rate or pressure.
Overall, the Segment Ball Valve is a versatile and reliable valve that can be used in a wide range of applications, such as chemical processing, oil and gas, water treatment, and power generation. Its high performance, easy operation, and durable construction make it a popular choice for industries that require efficient and precise fluid control.
Our Segment Ball Valve is carefully packaged to ensure safe delivery to our customers. Each valve is packed in a sturdy cardboard box with foam inserts to prevent damage during transportation. The box is clearly labeled with the product name, size, and any special instructions for handling.
We offer various shipping options to meet our customers' needs. For smaller orders, we use standard ground shipping through reliable carriers. Larger or urgent orders can be shipped via air or expedited shipping for faster delivery. We also offer international shipping to our customers worldwide.
Our packaging and shipping process is designed to ensure that our Segment Ball Valve arrives at your doorstep in perfect condition and on time. We take great care in handling and shipping our products to maintain the highest level of customer satisfaction.
For any questions or concerns regarding packaging and shipping, please feel free to contact our customer service team. We are always happy to assist and make sure that you receive your Segment Ball Valve with ease and convenience.
