DN250 V Notch Ball Valve With Flange Connection And PTFE Seat

Basic Information
Place of Origin: China
Brand Name: Coosai
Certification: CE ISO
Minimum Order Quantity: 1 pcs
Packaging Details: plywood case
Detail Information
Type: Segment Ball Valve Temperature Rating: Up To 400°F
Size: DN25 Connection Type: Flanged
Operation: Manual Material: Carbon Steel
Ends: Full Port Design Standard: API 6D
High Light:

DN250 V Notch Ball Valve

,

Flange Connection V Notch Ball Valve

,

Carbon Steel Segmented V Ball Valve


Product Description

Product Description:

Segment Ball Valve

The Segment Ball Valve is a type of V Notch Ball Valve that is specially designed for precise control of flowing media in various industrial applications. It is a high-performance valve that is widely used in the oil and gas, chemical, and power generation industries.

Flange Standard: ASME B16.5

Size: DN25

Type: Segment Ball Valve

Pressure Rating: Class 150

Face To Face Dimension: ASME B16.10

The Segment Ball Valve is designed with a unique V-notch ball that provides efficient and accurate control of flow. This design also reduces the risk of cavitation and erosion, making it a reliable choice for critical applications.

With its segment ball control technology, this valve offers precise control over the flow rate, making it suitable for handling liquids, gases, and even abrasive substances. Its compact size and lightweight design make it easy to install and maintain, saving time and resources for the user.

The Segment Ball Valve is also known as a Segment Ball Control Valve or a Segment Ball V control valve, highlighting its advanced technology and superior performance. It is suitable for a wide range of operating conditions, including high-pressure and high-temperature environments.

In addition to its exceptional performance, this valve also meets the industry standards for flange and face-to-face dimensions, ensuring compatibility with existing pipelines and systems. It is designed for long-lasting durability and reliable operation, making it a cost-effective choice for any industrial application.

Overall, the Segment Ball Valve is a top-of-the-line product that offers precise control, superior performance, and reliable operation. Its advanced technology, compact design, and compliance with industry standards make it a valuable asset in any industrial setting.

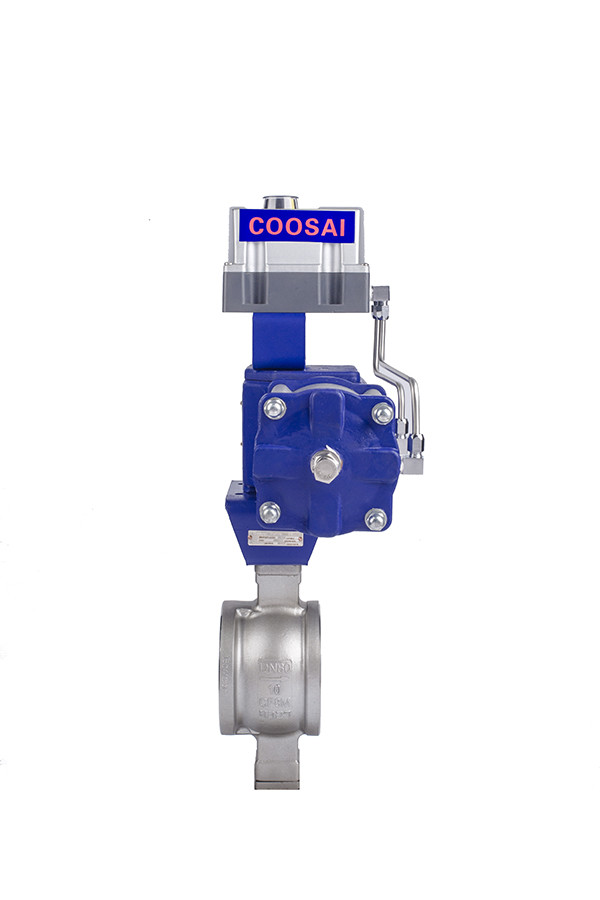

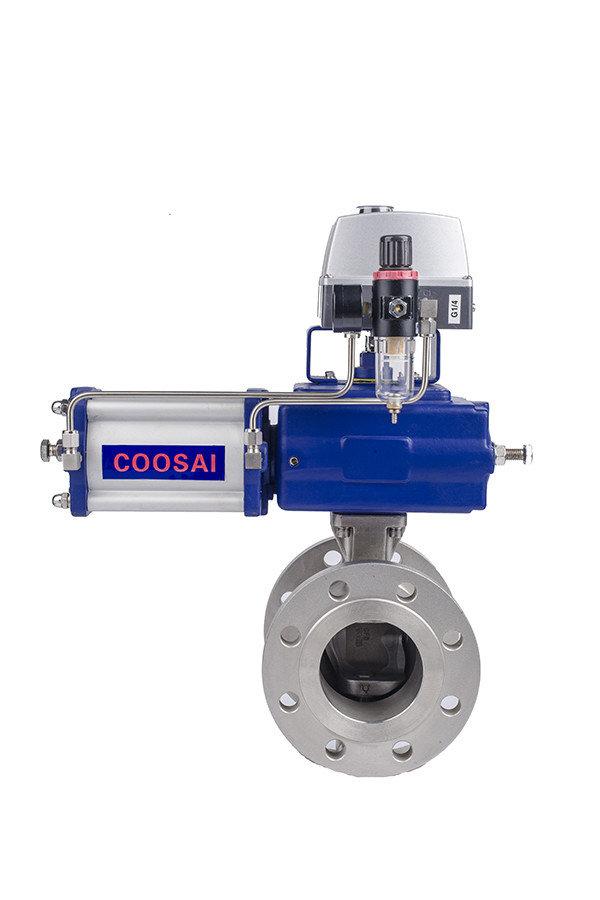

DN250 V Notch Ball Valve With Flange Connection And PTFE Seat 0DN250 V Notch Ball Valve With Flange Connection And PTFE Seat 1

Features:

  • Product Name: Segment Ball Valve
  • Operation: Manual
  • Application: Oil and Gas, Chemical, Power, Water Treatment
  • Temperature Rating: Up to 400°F
  • Ends: Full Port
  • Size: DN25
  • Segment Ball Control Valve
  • Segmented V Ball Valve
  • Segment Ball Valve Parts


Technical Parameters:

Parameter Specification
Product Name Segment Ball Valve
Material Carbon Steel
Flange Standard ASME B16.5
Size DN25
Seat Material PTFE
Design Standard API 6D
Face To Face Dimension ASME B16.10
Operation Manual
Connection Type Flanged
Application Oil and Gas, Chemical, Power, Water Treatment
Pressure Rating Class 150
V Notch Ball Valve V Notch Ball Valve
V Notch Ball Valve V Notch Ball Valve


Applications:

Segment Ball Valve: A Reliable Solution for High Temperature Applications

The Segment Ball Valve, also known as the Segmented V Ball Valve or V Notch Ball Valve, is a type of ball valve that is specifically designed for high temperature applications. It features a unique segmented V-shaped ball, which allows for precise control of flow and minimizes pressure drop. This valve is perfect for use in industries such as oil and gas, chemical processing, and power generation.

Product Attributes:
  • Seat Material: PTFE (polytetrafluoroethylene) is a commonly used material for the seat of ball valves. It has excellent chemical resistance and can withstand high temperatures, making it ideal for use in the Segment Ball Valve.
  • Ends: The full port design of the Segment Ball Valve ensures maximum flow capacity and minimal pressure drop, making it suitable for high flow applications.
  • Connection Type: The flanged connection of the Segment Ball Valve allows for easy installation and maintenance, making it a popular choice in industrial settings.
  • Temperature Rating: With a temperature rating of up to 400°F, the Segment Ball Valve can withstand high temperatures, making it suitable for a wide range of applications.
  • Design Standard: The Segment Ball Valve is designed and manufactured in accordance with API 6D, a widely recognized standard for valves used in the oil and gas industry.
Application Scenarios:

The Segment Ball Valve is commonly used in the following situations:

  • High Temperature Fluid Control: The Segment Ball Valve is designed to handle high temperature fluids, making it suitable for use in processes such as steam and hot water control.
  • Chemical Processing: With its PTFE seat material, the Segment Ball Valve is resistant to a wide range of chemicals, making it an ideal choice for use in chemical processing plants.
  • Power Generation: The Segment Ball Valve is commonly used in power plants for controlling the flow of high temperature steam and water.
  • Oil and Gas Industry: The Segment Ball Valve is widely used in the oil and gas industry for controlling the flow of high temperature and corrosive fluids in pipelines and processing plants.

Overall, the Segment Ball Valve is a reliable and versatile valve that can withstand high temperatures and harsh chemical environments. Its precise flow control and easy installation make it a popular choice in a variety of industrial applications.

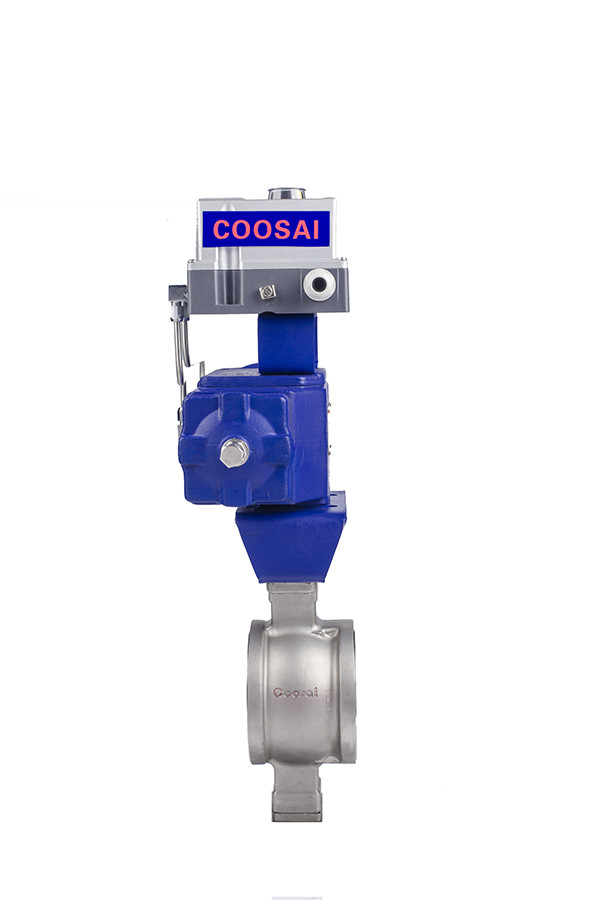

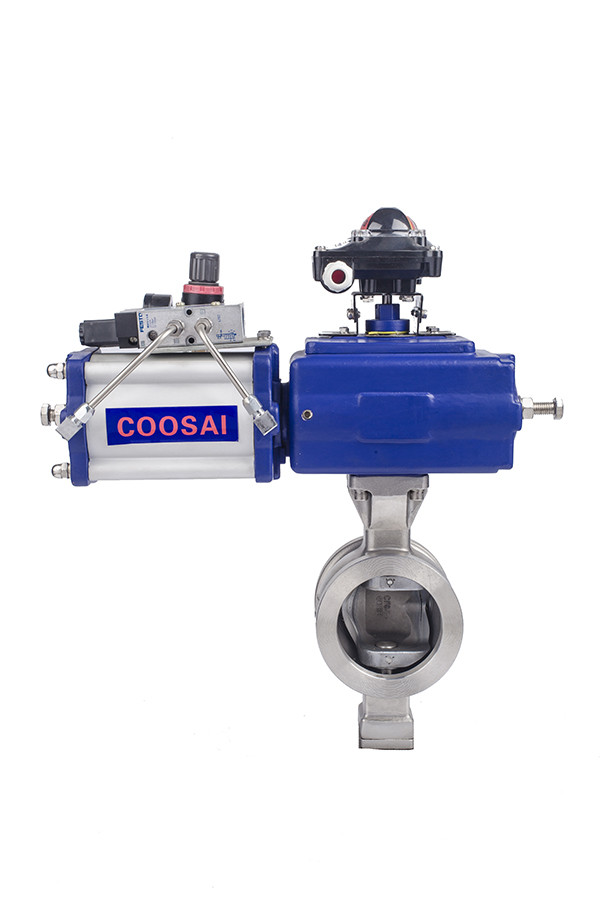

DN250 V Notch Ball Valve With Flange Connection And PTFE Seat 2

Packing and Shipping:

Packaging and Shipping of Segment Ball Valve:

The Segment Ball Valve is carefully packaged and shipped to ensure safe and secure delivery to our customers. Here is our standard packaging and shipping process:

Packaging:
  • The Segment Ball Valve is first wrapped in a layer of bubble wrap to provide cushioning and protection against impact during transportation.
  • Next, the valve is placed in a sturdy cardboard box and secured with packing peanuts to prevent any movement during transit.
  • For larger orders, the valves are packaged on pallets and shrink-wrapped for added stability.
  • The packaging is labeled with the product name, quantity, and any other necessary information for easy identification.
Shipping:
  • We offer various shipping options, including standard ground, expedited, and international shipping.
  • All orders are processed and shipped within 1-2 business days.
  • For international orders, we ensure compliance with all necessary customs regulations and provide all required documentation.
  • Once the order is shipped, customers will receive a tracking number to monitor the delivery status of their package.

Our goal is to provide our customers with a hassle-free and timely delivery of their Segment Ball Valve. We take great care in packaging and shipping our products to ensure they arrive in perfect condition. For any questions or concerns regarding packaging and shipping, please don't hesitate to contact our customer service team.



FAQ:

  • Q1:What is the working principle of Segment Ball Valve?
    A1: The working principle of Segment Ball Valve is based on the rotation of a segment ball within a spherical valve body. This allows for precise control of flow and provides a tight seal when closed.
  • Q2:What are the main applications of Segment Ball Valve?
    A2: Segment Ball Valve is commonly used in industries such as oil and gas, chemical, power generation, and water treatment. It is suitable for controlling high pressure, high temperature, and corrosive fluids.
  • Q3:What are the advantages of Segment Ball Valve?
    A3: Some advantages of Segment Ball Valve include its compact design, low torque operation, and easy maintenance. It also offers a high flow capacity and excellent shutoff capability.
  • Q4:What materials are Segment Ball Valve typically made of?
    A4: Segment Ball Valve can be made of various materials such as stainless steel, cast iron, carbon steel, and exotic alloys depending on the specific application and fluid being controlled.
  • Q5:What is the maximum operating pressure for Segment Ball Valve?
    A5: The maximum operating pressure for Segment Ball Valve can vary depending on the size, material, and design of the valve. However, it can typically handle pressures up to 6000 psi.
