High Pressure Systems Segment Ball Valve With Flange Connection

Basic Information
Place of Origin: china
Brand Name: Coosai
Certification: CE ISO
Minimum Order Quantity: 1 pcs
Packaging Details: plywood case
Detail Information
Type: Segment Ball Valve Seat Material: PTFE
Operation: Manual Pressure Rating: Class 150
Ends: Full Port Size: DN25
Design Standard: API 6D Face To Face Dimension: ASME B16.10
High Light:

High Pressure Systems Segment Ball Valve

,

Flange Connection Segment Ball Valve

,

PTFE Seat Segment Ball Control Valve


Product Description

Product Description:

Segment Ball Valve

The Segment Ball Valve is a type of V Notch Ball Valve that is designed for precise flow control in various industrial applications. It is also known as a segmented ball valve due to its unique design that features a segmented ball with V-shaped notches.

Design Standard: API 6D

The Segment Ball Valve is designed in accordance with the API 6D standard, which is a globally recognized standard for pipeline valves. This ensures the valve's high quality, reliability, and safety in operation.

Pressure Rating: Class 150

The Segment Ball Valve has a pressure rating of Class 150, which means it can withstand a maximum pressure of 150 pounds per square inch. This makes it suitable for a wide range of industrial applications that require high-pressure handling capabilities.

Connection Type: Flanged

The Segment Ball Valve has a flanged connection type, which means it can be easily connected to pipes or other components with the use of flanges. This makes installation and maintenance of the valve quick and easy.

Seat Material: PTFE

The Segment Ball Valve features a PTFE (polytetrafluoroethylene) seat material, which is a highly durable and chemically resistant material. This ensures the valve's longevity and reliability in handling various types of fluids.

Type: Segment Ball Valve

The Segment Ball Valve is a type of ball valve that is specifically designed for precise flow control. Its unique segmented ball design allows for a more accurate and efficient control of the flow, making it ideal for applications that require precise flow regulation.

Overall, the Segment Ball Valve is a highly reliable and efficient valve that is suitable for a wide range of industrial applications. Its design, materials, and standards ensure its high performance, durability, and safety, making it a top choice for flow control needs.

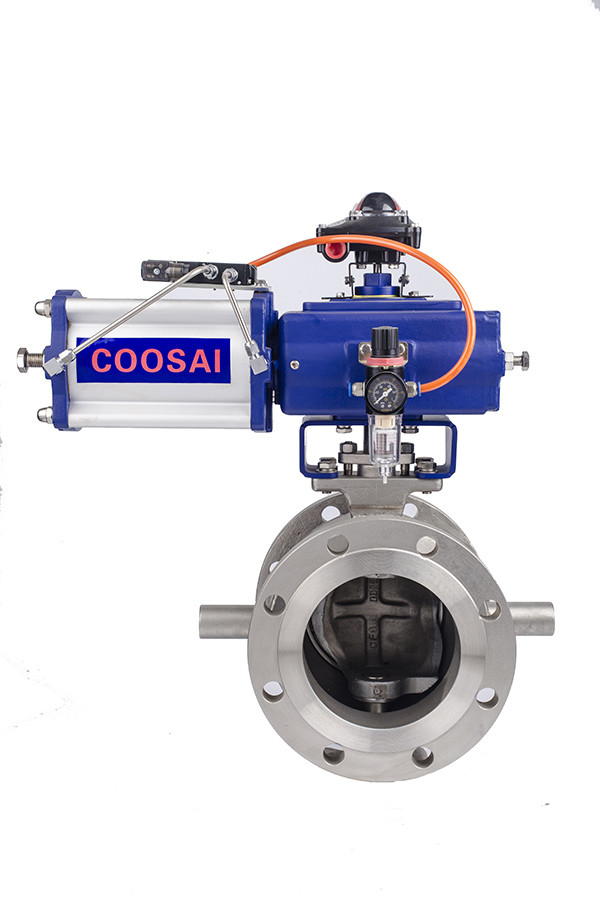

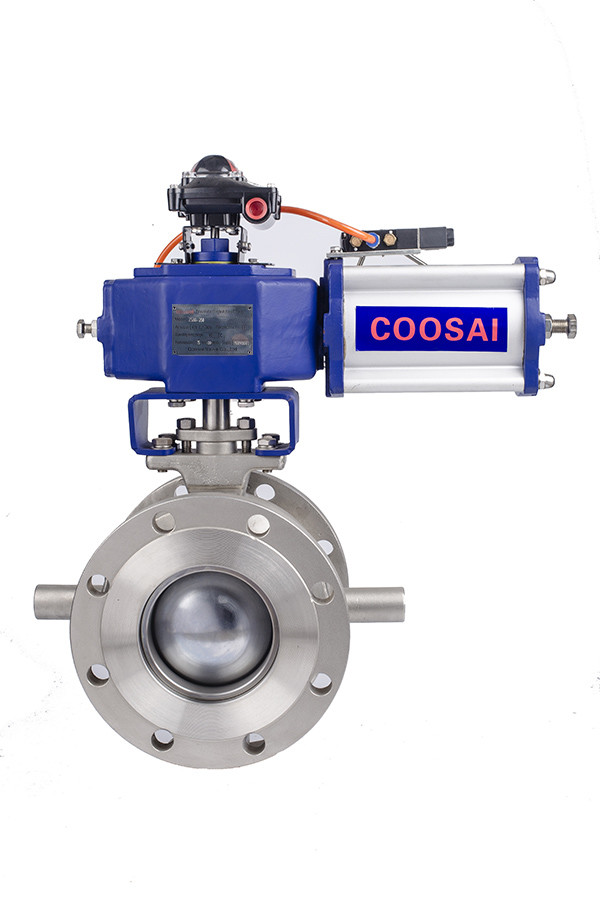

High Pressure Systems Segment Ball Valve With Flange Connection 0High Pressure Systems Segment Ball Valve With Flange Connection 1

Features:

  • Product Name: Segment Ball Valve
  • Flange Standard: ASME B16.5
  • Operation: Manual
  • Ends: Full Port
  • Face To Face Dimension: ASME B16.10
  • Application: Oil and Gas, Chemical, Power, Water Treatment
  • V Notch Ball Valve
  • V Notch Ball Valve
  • V Notch Ball Valve
  • V Notch Ball Valve


Technical Parameters:

Attribute Description
Product Name Segment Ball Valve
Type V Notch Ball Valve, Segment Ball Control Valve
Seat Material PTFE
Operation Manual
Design Standard API 6D
Application Oil and Gas, Chemical, Power, Water Treatment
Temperature Rating Up to 400°F
Connection Type Flanged
Pressure Rating Class 150
Material Carbon Steel
Size DN25


Applications:

Segment Ball Valve

The Segment Ball Valve is a type of control valve that is designed for regulating the flow of various fluids in industrial pipelines. It is commonly used in industries such as oil and gas, chemical, and power generation.

Product Description

The Segment Ball Valve is made of high-quality carbon steel material, which makes it durable and suitable for various working conditions. It is designed with a segment ball that rotates to adjust the flow of fluids, providing precise and reliable control.

Application Scenarios

The Segment Ball Valve is commonly used in applications where a high level of control and regulation is required. Some of the common application scenarios include:

  • Oil and Gas Industry: The Segment Ball Control Valve is widely used in oil and gas pipelines for regulating the flow of crude oil, natural gas, and other fluids.
  • Chemical Industry: In chemical plants, the Segment Ball Valve is used for controlling the flow of various chemicals, ensuring safe and efficient production processes.
  • Power Generation: The Segment Ball Control Valve is an essential component in power plants, where it is used to regulate the flow of steam, water, and other fluids in boilers and turbines.
Product Features
  • Material: The Segment Ball Valve is made of carbon steel, which is resistant to corrosion and can withstand high pressure and temperature.
  • Operation: This valve is manually operated, allowing for easy and precise adjustments to the flow of fluids.
  • Type: The Segment Ball Valve is a type of control valve that is specifically designed for regulating the flow of fluids.
  • Connection Type: It is designed with a flanged connection, making it easy to install and maintain.
  • Design Standard: The Segment Ball Valve complies with the API 6D design standard, ensuring its high quality and reliability.
Conclusion

The Segment Ball Valve is a versatile and essential product that is used in various industries for controlling and regulating the flow of fluids. Its durable carbon steel material, manual operation, flanged connection, and compliance with API 6D design standards make it a reliable and efficient choice for any application scenario.



Packing and Shipping:

Segment Ball Valve Packaging and Shipping

Our Segment Ball Valve comes packaged in a sturdy cardboard box with foam padding to ensure safe delivery. The valve is also wrapped in plastic to protect it from any scratches or damage during transportation.

We offer two options for shipping: standard and expedited. Standard shipping takes approximately 7-14 business days, while expedited shipping takes 3-5 business days.

For international orders, we use a trusted courier service to ensure timely and secure delivery. Please note that international orders may be subject to customs and duty fees, which are the responsibility of the customer.

Once your order has been shipped, you will receive a tracking number via email to track your package's delivery status.

If your valve arrives damaged or defective, please contact our customer service team within 14 days of receiving your order to initiate a return or exchange.

Thank you for choosing our Segment Ball Valve. We hope it meets your expectations and serves your needs efficiently.

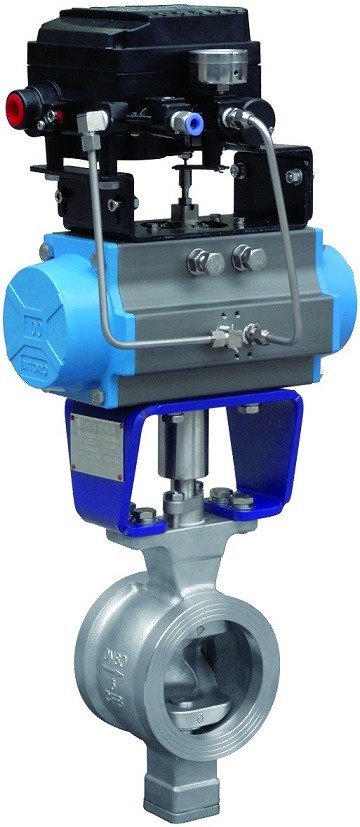

High Pressure Systems Segment Ball Valve With Flange Connection 2

FAQ:

  • What is the Segment Ball Valve?
  • What are the main features of the Segment Ball Valve?
  • What are the applications of the Segment Ball Valve?
  • How does the Segment Ball Valve work?
  • What materials are used to make the Segment Ball Valve?
