DN1200 Manual Operation Segmented V Ball Valve For High Pressure Systems

Product Description:

This is a product overview of Segment Ball Valve in DN25 size, with flanged connection type, ASME B16.10 face to face dimension, and PTFE seat material.

The Segment Ball Valve, also known as a Segmented V Ball Valve or Segment Ball Control Valve, is a type of quarter-turn valve that is used to control the flow of fluids in industrial applications. It is designed with a segmented ball that is able to provide precise control over the flow rate, making it an ideal choice for regulating flow in pipelines.

The Segment Ball Valve is available in DN25 size, which is equivalent to 1 inch in diameter. This size is commonly used in industrial pipelines for a wide range of applications. The valve has a flanged end connection, which allows it to be easily installed and connected to the pipeline using bolts and nuts.

The face to face dimension of the Segment Ball Valve is designed according to the ASME B16.10 standard. This means that the distance between the inlet and outlet of the valve is standardized, making it easier to replace or interchange with other valves that also comply with this standard.

The Segment Ball Valve is equipped with a PTFE (polytetrafluoroethylene) seat, which is a high-performance material commonly used in valves and other industrial applications. PTFE is known for its excellent chemical resistance, low friction, and high temperature tolerance, making it an ideal choice for use in harsh and demanding environments.

The Segment Ball Valve is a type of quarter-turn valve, which means that it only requires a 90-degree rotation to open or close the valve. This type of valve is known for its quick and easy operation, making it a popular choice for industrial applications where time is of the essence. The segmented ball design of the valve also allows for precise control over the flow rate, making it suitable for a wide range of flow control applications.

The Segment Ball Valve is a high-quality and reliable valve that is perfect for controlling the flow of fluids in industrial pipelines. With its DN25 size, flanged end connection, ASME B16.10 face to face dimension, and PTFE seat material, it is able to provide precise and efficient flow control in a wide range of industrial applications.

Features:

• Product Name: Segment Ball Valve
• Application: Oil and Gas, Chemical, Power, Water Treatment
• Design Standard: API 6D
• Ends: Full Port
• Temperature Rating: Up to 400°F
• Connection Type: Flanged
• Key Features:
  • Segmented V Ball Valve design for precise control and throttling
  • Segmented ball allows for smoother flow and reduced turbulence
  • Suitable for various applications including oil and gas, chemical, power, and water treatment
  • Designed and manufactured according to API 6D standards
  • Full port design for maximum flow capacity
  • High temperature rating of up to 400°F
  • Flanged connection type for easy installation and maintenance
  • Available in various sizes and pressure ratings to meet specific requirements
  • Can be equipped with various actuation options for remote operation
  • Durable construction and materials for long-lasting performance
  • Segment Ball Control Valve for precise and reliable flow control

Technical Parameters:

Applications:

The Segment Ball Valve is a type of V Notch Ball Valve that is designed to handle extreme conditions such as high pressure and high temperature. Made from durable Carbon Steel material, this valve is perfect for industrial applications that require a reliable and long-lasting solution.

• Type: Segment Ball Valve
• Material: Carbon Steel
• Ends: Full Port
• Seat Material: PTFE
• Size: DN25

The Segment Ball Valve is an ideal choice for a variety of industries and applications. Some common scenarios where this valve can be used are:

1. Chemical Plants: The anti-corrosion properties of the Segment Ball Valve make it perfect for use in chemical plants. It can withstand exposure to harsh chemicals and maintain its performance over time.
2. Petrochemical Refineries: In the high pressure and high temperature environment of petrochemical refineries, the Segment Ball Valve proves to be a reliable and durable solution. Its metal to metal seated design ensures tight shut-off and prevents leaks.
3. Power Plants: The Segment Ball Valve is also commonly used in power plants to control the flow of steam and other high temperature fluids. Its robust construction and ability to withstand extreme conditions make it an ideal choice for this application.
4. Oil and Gas Industry: The oil and gas industry often requires valves that can handle high pressure and high temperature. The Segment Ball Valve is a popular choice in this industry due to its durability and reliable performance.

Overall, the Segment Ball Valve is a versatile product that can be used in various applications where high pressure and high temperature are a concern. Its V Notch design and metal to metal seated construction make it a preferred choice for industries that require a reliable and long-lasting valve.

Packing and Shipping:

The Segment Ball Valve is carefully packaged to ensure safe delivery to our customers. The packaging process includes the following steps:

• Each valve is individually wrapped in protective material to prevent any damage during transportation.
• The valves are then placed in a sturdy cardboard box and secured with packing materials to prevent movement during shipping.
• The boxes are labeled with the product name, quantity, and any other necessary information for easy identification.

Our shipping methods are chosen based on the destination and urgency of the order. We offer the following shipping options:

• Standard Shipping: This option takes 5-7 business days for domestic orders and 7-14 business days for international orders.
• Expedited Shipping: For urgent orders, we offer expedited shipping which takes 2-3 business days for domestic orders and 3-5 business days for international orders.
• Express Shipping: This is our fastest shipping option, with delivery within 1-2 business days for domestic orders and 2-4 business days for international orders.

We also offer the option for customers to use their own shipping accounts and carriers if preferred.

For any further inquiries about our packaging and shipping process, please contact our customer service team.

FAQ:

• Q:What is Segment Ball Valve?

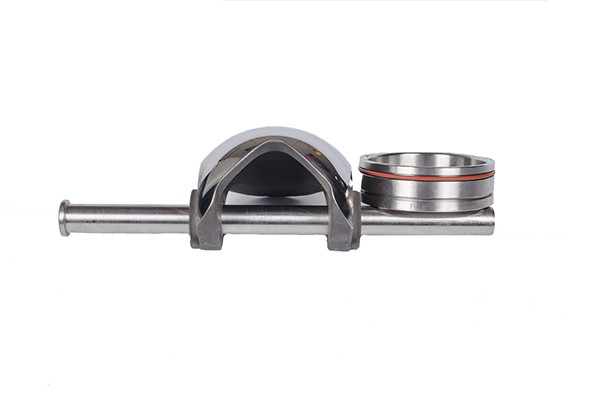

• A:Segment Ball Valve is a type of ball valve that has a segmented ball, rather than a solid ball, as the closure element.
• Q:What are the advantages of Segment Ball Valve?
• A:The segmented ball design allows for better flow control and higher pressure resistance, making it suitable for a wider range of applications. It also reduces the amount of torque required for operation, making it easier to use.
• Q:What materials are used to make Segment Ball Valve?
• A:Segment Ball Valve can be made from a variety of materials, including stainless steel, carbon steel, and brass. The choice of material depends on the specific application and the medium being handled.
• Q:How does Segment Ball Valve work?
• A:Segment Ball Valve works by rotating the segmented ball within the valve body, which is equipped with a seat that seals against the ball when closed. This allows for precise control of flow and shut-off.
• Q:What are the common applications of Segment Ball Valve?
• A:Segment Ball Valve is commonly used in industries such as oil and gas, chemical, and power generation, where precise flow control is necessary. It is also suitable for high-pressure applications and harsh environments.
