| Place of Origin: | china |
|---|---|
| Brand Name: | Coosai |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Plywood case |
| Seat Material: | PTFE | Ends: | Full Port |
|---|---|---|---|
| Application: | Oil And Gas, Chemical, Power, Water Treatment | Material: | Carbon Steel |
| Temperature Rating: | Up To 400°F | Connection Type: | Flanged |
| Pressure Rating: | Class 150 | Flange Standard: | ASME B16.5 |
| High Light: | PTFE Seat Segment Ball Valve,High Pressure Segment Ball Control Valve,Water Treatment Segment Ball Valve |
||

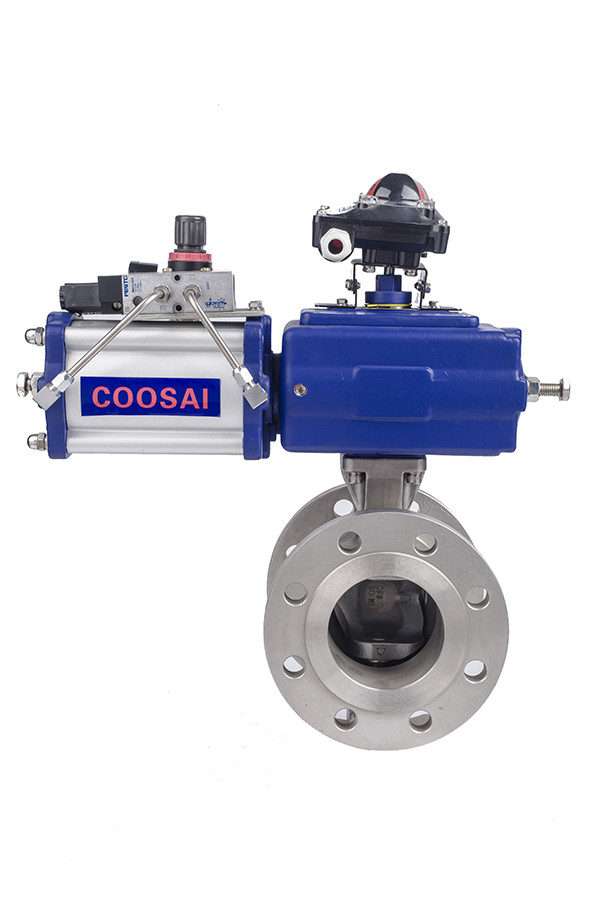

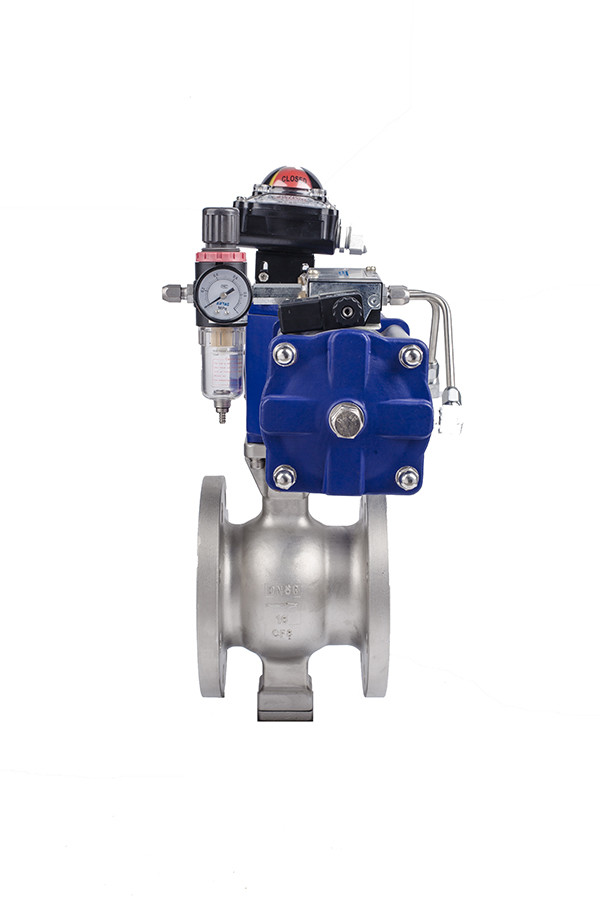

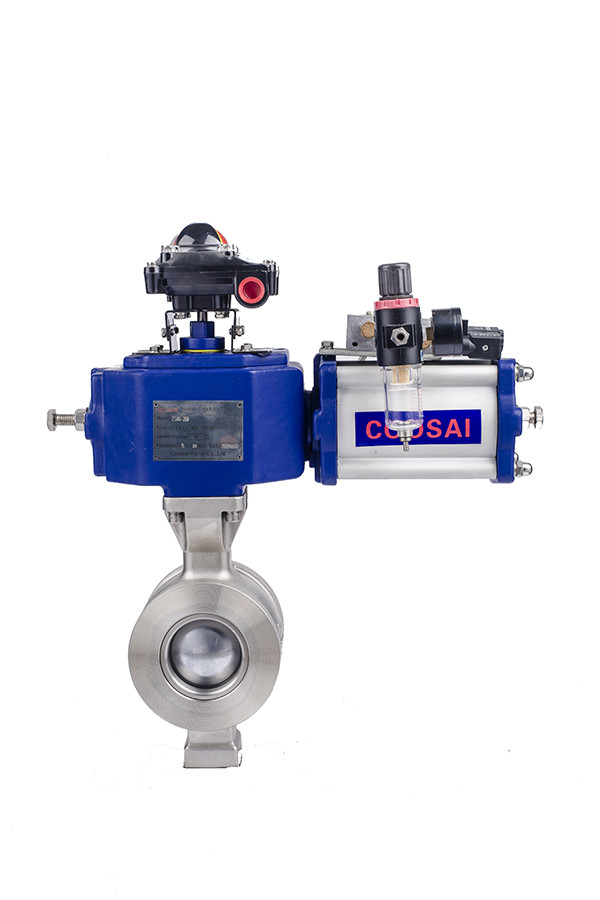

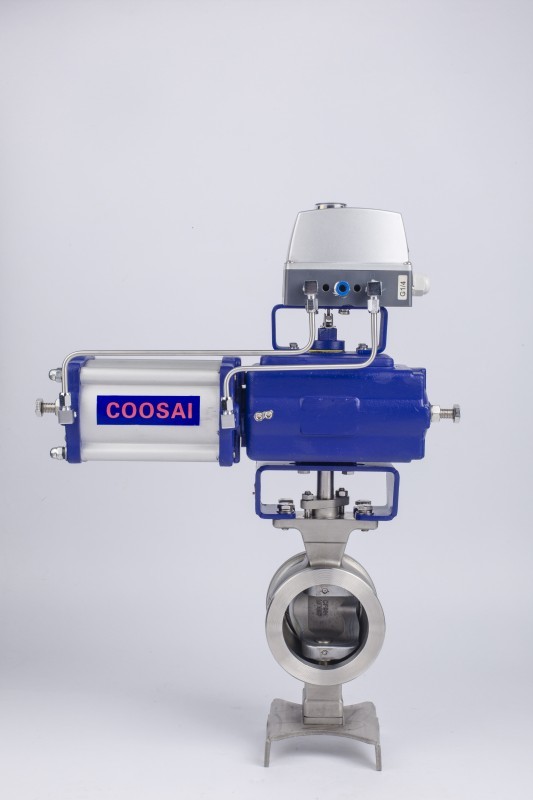

The Segment Ball Valve is a high-performance valve designed for a wide range of industrial applications, including oil and gas, chemical, power, and water treatment industries. This valve is specifically designed to provide reliable and precise flow control, making it an essential component in any fluid handling system.
The Segment Ball Valve is a type of control valve that features a segmented V-ball design, allowing for precise control of flow and pressure. The valve is made up of two halves, each with a V-shaped ball that is controlled by a stem and actuator. When the valve is open, the V-shaped balls rotate in opposite directions, creating a larger flow path for the fluid. When the valve is closed, the balls rotate back to their original position, creating a tight seal and stopping the flow of fluid.
The Segment Ball Valve is a high-performance valve that offers precise control of flow and pressure in a wide range of industrial applications. Its segmented V-ball design, ASME B16.5 flange standard, and Class 150 pressure rating make it a reliable and durable option for fluid handling systems in the oil and gas, chemical, power, and water treatment industries. With its easy installation and maintenance, this valve is a valuable component for any industrial process that requires precise flow control.
| Attribute | Value |
|---|---|
| Product Name | Segment Ball Valve |
| Type | V Notch Ball Valve |
| Size | DN25 |
| Flange Standard | ASME B16.5 |
| Temperature Rating | Up to 400°F |
| Application | Oil and Gas, Chemical, Power, Water Treatment |
| Seat Material | PTFE |
| Operation | Manual |
| Pressure Rating | Class 150 |
| Material | Carbon Steel |
| Face To Face Dimension | ASME B16.10 |
| Additional Information | This segment ball valve is designed for precise flow control in various industries such as oil and gas, chemical, power, and water treatment. Its V notch ball design ensures accurate and efficient control of media. This valve is suitable for high temperature applications up to 400°F and has a pressure rating of Class 150. The valve is made of durable carbon steel and has a PTFE seat material for enhanced performance. It is operated manually and conforms to ASME B16.5 and B16.10 standards for flange and face to face dimensions. |
The Segment Ball Valve is a high-performance valve designed for precise flow control in various industrial applications. With its innovative design and superior materials, this valve offers reliable and efficient performance in even the most demanding environments.
The Segment Ball Valve has a standard size of DN25, making it suitable for a wide range of pipelines and systems. It is also equipped with a flanged end connection, ensuring easy installation and secure connection to the pipeline.
One of the key features of the Segment Ball Valve is its unique V notch ball design. This design allows for precise control of flow, even at low flow rates. The V notch ball also helps to reduce turbulence and pressure drop, making this valve ideal for applications that require accurate and stable flow control.
The Segment Ball Valve is equipped with a PTFE seat material, known for its excellent chemical resistance and low friction. This ensures a tight seal and smooth operation, even in harsh and corrosive environments.
With a Class 150 pressure rating, the Segment Ball Valve is suitable for high-pressure applications up to 150 psi. This makes it an ideal choice for industries such as oil and gas, chemical processing, and power generation.
The Segment Ball Valve features a full port design, allowing for maximum flow and minimal pressure drop. This is essential for applications that require high flow rates, such as in large-scale industrial processes.
The Segment Ball Valve is an ideal choice for a wide range of applications, including:
In these scenarios, the Segment Ball Valve offers precise and reliable flow control, helping to improve process efficiency, reduce downtime, and ensure product quality.
Overall, the Segment Ball Valve is a top choice for industries that require accurate and stable flow control. With its innovative design, high-quality materials, and versatile applications, this valve is a valuable addition to any industrial system.
Our Segment Ball Valve is carefully packaged and shipped to ensure its safe arrival to your location.
The valve is placed in a sturdy cardboard box with protective foam inserts to prevent any damage during transportation.
Each box is labelled with the product name, size, and quantity to ensure easy identification.
We offer various shipping options to accommodate your specific needs and preferences.
For domestic orders, we use reliable carriers such as UPS, FedEx, and USPS. For international orders, we work with trusted freight forwarders to ensure timely delivery.
We also provide tracking information for all orders so you can stay updated on the status of your shipment.
Our goal is to provide you with a hassle-free and efficient shipping experience.
