Payment & Shipping Terms:
|Standard Or Nonstandard:||Standard,API 599||Structure:||Plug,inverted Type Lubricated Plug Valve,Inverted Pressure Balance Lubricated Plug|
|Connection:||RF/RTJ/MF/BW/SW/NPT||Material:||WCB, LCB, CF3,CF3M,CF8, CF8M, ETC.|
|Temperature Of Media:||Medium Temperature,Normal Temperature,High Temperature||Power:||Manual,Lever Operated,Pneumatic,Hand Wheel/Gear|
inverted pressure balance plug type valve,
pn10 lubricated plug valve

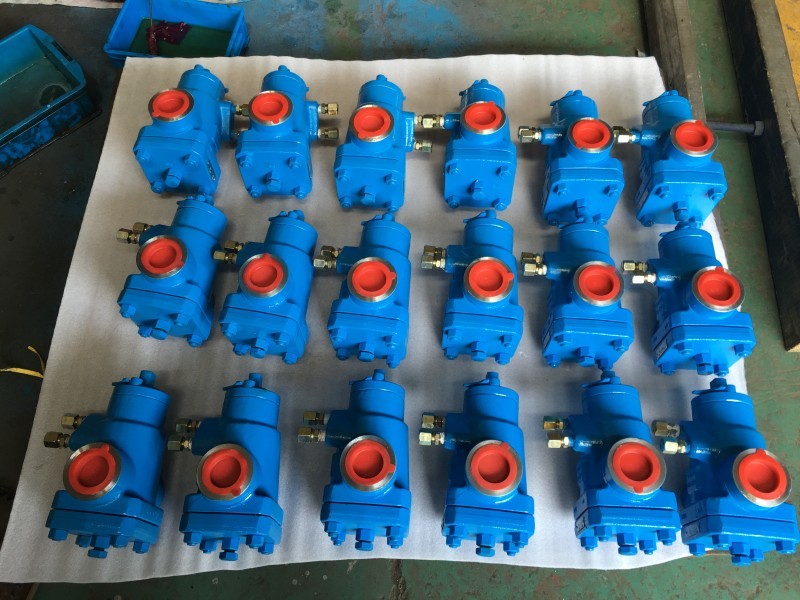

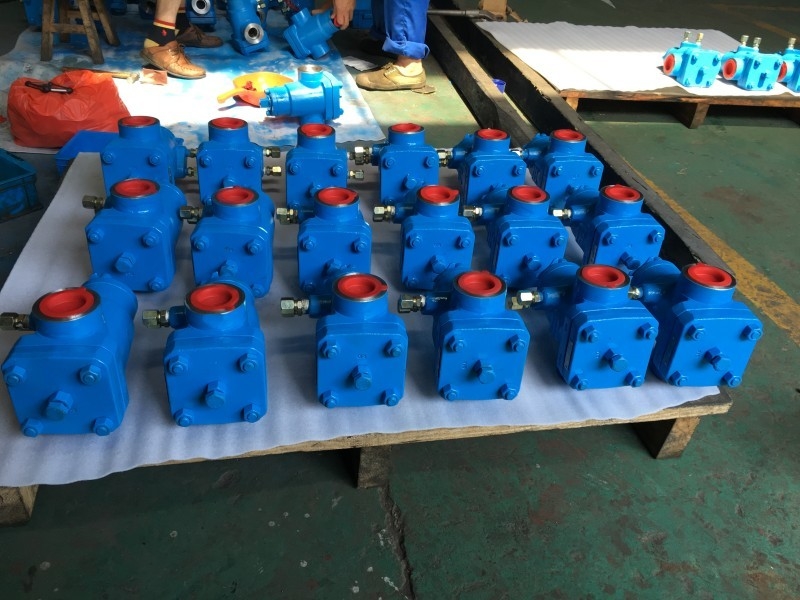

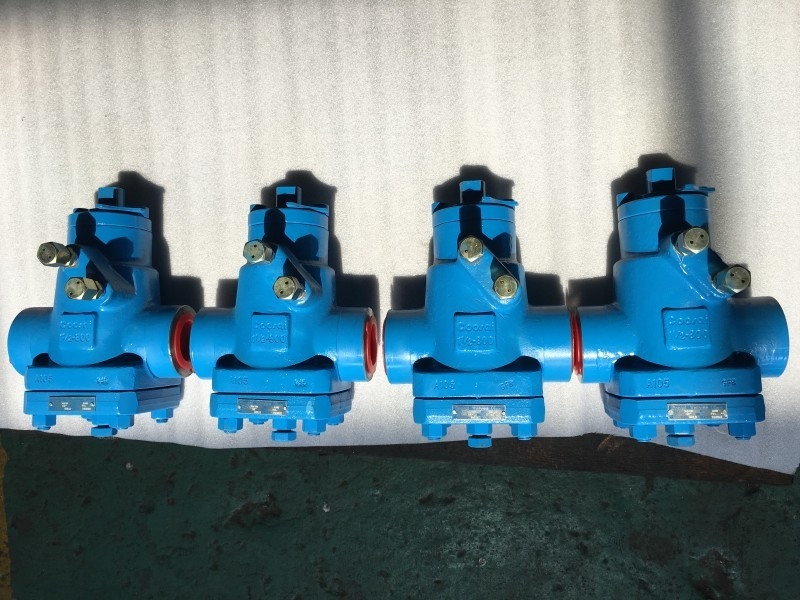

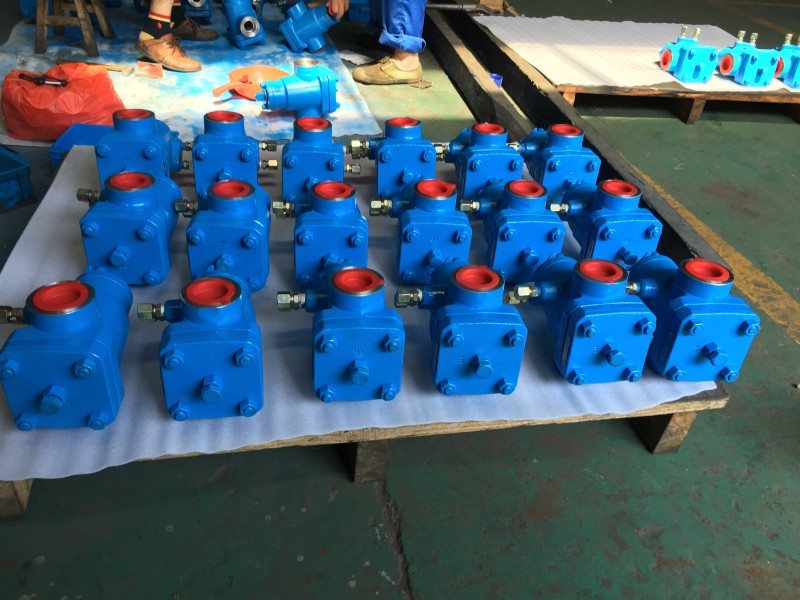

Inverted Pressure Balance Lubricated Plug Valve
Product Range :
|Operation||Manual (Handwheel, Lever, Gear)|
|Electric actuator, Pneumatic actuator|
|Design Standard||API599, API6D|
|Face to face||ASME B16.10|
|Flange Ends||ASME B16.5|
|Test & Inspection||API598.API 6D|
PRODUCT STRUCTURAL FEATURES
Inverted pressure balance lubricated plug valve acc. to ANSI is applicable to thecutting and connection of pipelines medium that are used in various industriessuch as petroleum, chemical industry, pharmacy, chemical fertilizer, electricpower industry etc under nominal pressure of CLASS150~900LBS and workingtemperatrue of -29~180 DEG C.
MAIN STRUCTURAL FEATURES
1. It has logical structure, reliable seal, excellent performance and nice design.
2. It has the structure of flip- -chip balanceable pressure and light on/off operation.
3. An oil groove is set between valve body and seal surface, which may infusethe seal grease to increase the seal capability.
4. The part meterial and flange dimension may be selected according to currentoperating condition and users requirement, so that meet the requirements ofvarious engineering.
