Flanged Double Disc NRV Check Valve For Light Industry

Flanged Double Disc NRV Check Valve For Light Industry

    • Flanged Double Disc NRV Check Valve For Light Industry
  • Flanged Double Disc NRV Check Valve For Light Industry

    Product Details:

    Place of Origin: CHINA
    Brand Name: coosai
    Certification: API6D, ISO 9001
    Model Number: H76Y

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Packaging Details: PLYWOOD CASE
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Material: Casting,Stainless Steel,Brass Media: Water,Gas,Oil,Base,water Oils Non-corrosive Fluids And Steam
    Pressure: Medium Pressure,Low Pressure,High Pressure Structure: Check
    Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature Application: General,petroleum,energy Etc.,Water System,water Supply And Drainage
    Standard Or Nonstandard: Standard Connection: Flanges Universal Standard,wafer,Flange Ends,female/male/ferrule,Male Thread Tube
    Standard: ANSI BS DIN JIS,DIN,ASTM,ANSI,GB
    High Light:

    light industry nrv check valve

    ,

    class2500 non return check valve

    ,

    flanged double disc check valve

    Flange Connecting Double Disc Type Swing Check Valves





    Applicable Standards

    • Design Standard: API 6D, API 594, BS1868, API602
    • Nominal Dimension: Casting Valve: 2”-48”, Forging Valve: 1/4"~2"
    • Nominal Pressure: Class 150-2500
    • Connection type:  WAFER, LUG, FLANGE, ETC.
    • Structure: Bolted Bonnet, Welded bonnet, Pressure seal, Double disc, Tilting disc,”Y” pattern,Non Slam design.
    • Material:DI, CS, SS, DSS,LTCS, Inconel ,Monel, Bronze,Aluminum Bronze
    • Operation: Damper and counterweight(optional)

    Against the problem of traditional check valve, we accord AMERICA API&GERMNEY DIN, after study and research for many years, developed H76 lug body type wafer, double-disc swing type wafer check valve, H74 swing single-plate wafer check valve, H71 lift wafer check valve, and series of those products. Used in the industry of oil, petro, metallurgy, electric, light industry, food, received high appraisal from customers.



    Check valve is usually installed in linesystem, prevent medium from flowing back. Check valve is an automatic valve that itis open and close by pressure of fluid.

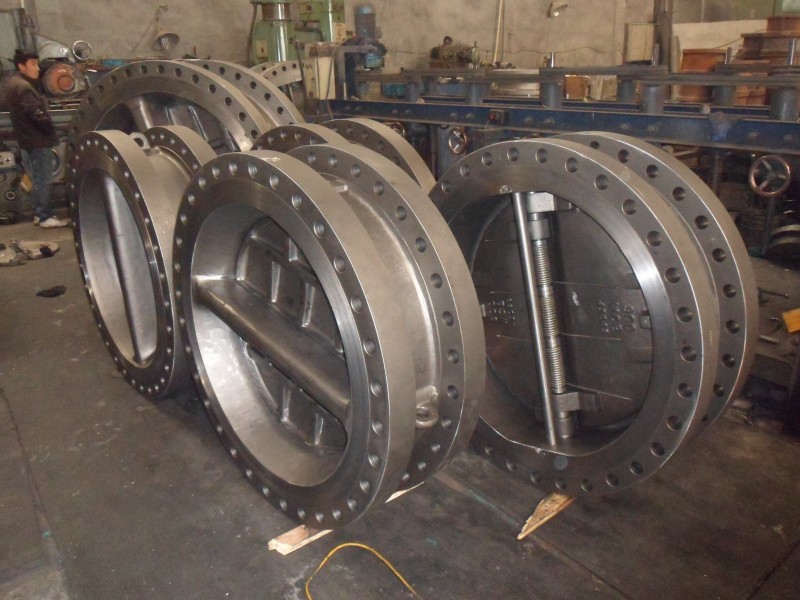

    Flanged Double Disc NRV Check Valve For Light Industry 0

    Flanged Double Disc NRV Check Valve For Light Industry 1

    Flanged Double Disc NRV Check Valve For Light Industry 2

    Flanged Double Disc NRV Check Valve For Light Industry 3
