ANSI Standard Single Plate Spring Loaded Wafer Check Valve

Basic Information
Place of Origin: CHINA
Brand Name: coosai
Certification: API6D, ISO 9001
Model Number: H76Y
Minimum Order Quantity: 1SET
Packaging Details: PLYWOOD CASE
Payment Terms: L/C, T/T
Detail Information
Material: Casting,Stainless Steel,Brass Media: Water,Gas,Oil,Base,water Oils Non-corrosive Fluids And Steam
Pressure: Medium Pressure,Low Pressure,High Pressure Structure: Check
Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature Application: General,petroleum,energy Etc.,Water System,water Supply And Drainage
Standard Or Nonstandard: Standard Connection: Flanges Universal Standard,wafer,Flange Ends,female/male/ferrule,Male Thread Tube
Standard: ANSI BS DIN JIS,DIN,ASTM,ANSI,GB
High Light:

ansi standard nrv check valve

,

nps 2 inch spring non return valve

,

single plate wafer check valve


Product Description

Single Plate Wafer Swing Check Valve, Spring Check Valve, NRV (ANSI Standard)



Against the problem of traditional check valve, we accord AMERICA API&GERMNEY DIN, after study and research for many years, developed H76 lug body type wafer, double-disc swing type wafer check valve, H74 swing single-plate wafer check valve, H71 lift wafer check valve, and series of those products. Used in the industry of oil, petro, metallurgy, electric, light industry, food, received high appraisal from customers.



Applicable Standards

  • Design Standard: API 6D, API 594, BS1868, API602
  • Structure: Bolted Bonnet, Welded bonnet, Pressure seal, Double disc, Tilting disc,”Y” pattern,Non Slam design.
  • Material:DI, CS, SS, DSS,LTCS, Inconel ,Monel, Bronze,Aluminum Bronze
  • Operation: Damper and counterweight(optional)
  • Nominal Dimension: Casting Valve: 2”-48”, Forging Valve: 1/4"~2"
  • Nominal Pressure: Class 150-2500
  • Connection type: RF,RTJ,FF, SW, NPT, BW, WAFER, LUG, ETC.

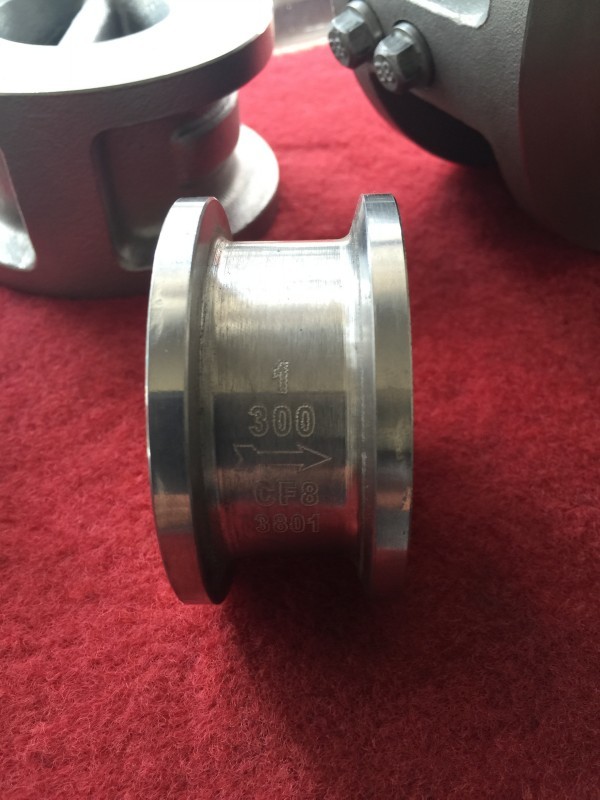

ANSI Standard Single Plate Spring Loaded Wafer Check Valve 0

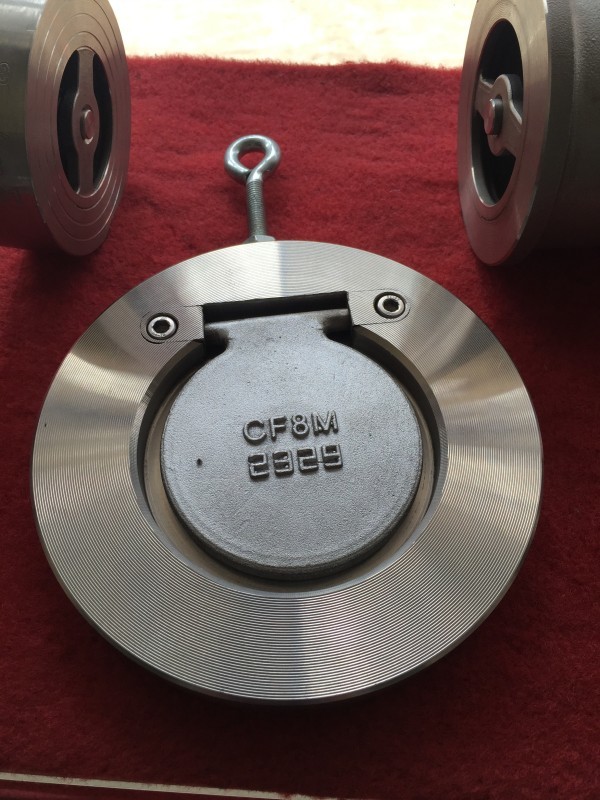

ANSI Standard Single Plate Spring Loaded Wafer Check Valve 1

ANSI Standard Single Plate Spring Loaded Wafer Check Valve 2
