|Size:||NPS 1/2" To 16"||Pressure:||150LB To 2500LB|
|Temperature:||-196℃~610℃ Low Temperatue, Normal Temperature And High Temperature||Body And Trim Material:||Cast Steel, WCB,ASTM A105, ASTM A350 LF2, ASTM A182 F304 F304L F316/F316L/F51 F53 F55,ASTM A351 CF8 CF8M CF3M ASTM A182 F6a 17-4PH|
|Seat Material:||PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat||Body And Stem Sealing:||Oring(FKM,FFKM NBR,FPM HNBR, VITON,EPDM, AFLAS), Spiral Wound Gasket(316SS+ Graphite) Packing(Graphite, PTFE)|
|Operation:||Wrench, Lever, Gearbo||Design Feature:||In Case Of One Of The Valve Failur,there Is Also A Reliable Seal，protect Pipelines. Bleed The Cavity Pressure Through A Needle Valve.|

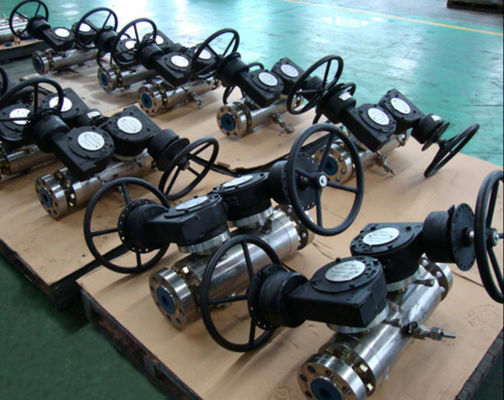

2500LB Double Ball Valve,
NPS 1/2" Double Ball Valve,
NPS 16" side entry ball valve
Double Ball Valve,Twin Ball Ball Valve,Dual Ball Side Entry,Low and high temperature valve
Design standard: API 6D & ASME B16.34/API 6A
Face to Face standard: ASME B16.10/API6A
Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25
Test & Inspect Standard: API 6D ,API 598,API 6A
Working Temperature: -196℃~610℃
Connection type: RF,RTJ,FF,BW.BSPT,NPT
Sour environment:NACE MR0175
Dual Ball Side Entry Design
Double Block and Bleed
Full Bore or Reduced Bore
Fire safe design
Blow-out proof stem
Low Emission Design
Emergency Sealant Injection Device
DBB Ball Valve is designed to replace the complex form of the connection of multiple valves in traditional pipes, so as to reduce leakage points in the system and realize fast discharging and closing. The DBB ball valve saves the installation space to the utmost extent,simplifies installation procedures,reduces pressure in the pipes system,facilitates instrument cleaning and maintenance and lower costs.
The products are widely applied in hydraulic systems pipes in such industries as electric power,petrochemical industry,metallurgy,ocean,chemical industry,natural gas,coal gas,pharmacy etc.
DOUBLE BLOCK & BLEED (DBB)
When the ball is in the closed position, each seat seals off the process medium independently at the same time between the up/down stream and body cavity, it allows bleeding the trapped cavity pressure (DBB) through drain and vent valve. The double block and bleed function make it possible to flush the valve under pressure and verify that the seat are sealing properly.
Fire safe design
Coosai ball valves ensures 100% pass of the fire safe test. As Coosai Ball valve applies two sealed design via O-ring seals and metal graphite spiral wound gasket. When the valve is on fire, non-metallic materials such as PTFE seat seals, gaskets ,O-ring seals,rubber etc will be damaged, meanwhile the outer layer of metal graphite spiral wound gasket provides a secondary seal. When the soft seat is burned, metal seat will automatically form a metal seal with ball under the urging of the spring which will effectively control the internal leakage and external leakage. Valve design fully accords with API 607, API 6FA, BS 6755, JB / T 6899 and other standards,
Blow-out proof stem:
The stem is made separately from the ball with integral T-type round shoulder, retained by bland .(other designs are Available on request)
Spring plus graphite type anti-static device are applied between the ball ,stem, gland Flange and body to keep the electrical Continuity between all the metallic components . And ensure the resistance lower than the most severe service requirement.
Grease injection device
For DN150 (NPS 6) & larger the stem and the valve seat are provided with a sealing grease injection device, For DN125 & smaller, we can provide the sealing grease injection device according to customer requirements. When the O-ring is damaged by accident, by injected sealant sealed to prevent the media through the valve seat ring and stem leaks.
Soft seat: Metal to Metal O-Ring seal
Simple structure reliable sealing Applicable to particulate Reliable sealing low torque meet customers' high
wide application low cost. media conditions sealing reliability and low torque requirements
