Aluminium Bronze Butterfly Control Valve

Basic Information
Place of Origin: CHINA
Brand Name: COOSAI
Certification: API6D.API609
Model Number: 2"-240"
Minimum Order Quantity: 1PCS
Price: 100USD
Packaging Details: Plywood Case
Delivery Time: 35 DayS
Payment Terms: L/C, T/T
Supply Ability: 100 PCS Per Day
Detail Information
Firs Safety: API 607 Seat: PTFE
Material: Manual, Pneumatic, ElectromStainless Steel, Casting, Plastic, WCB, Cast Ironotion, Hydraulic, Solenoid Pressure: Medium Pressure, Low Pressure, High Pressure, 1.0MPa/1.6MPa, 1.0-1.6Mpa(10-25bar)
Temperature Of Media: Normal Temperature, Medium Temperature, Low Temperature, High Temperature, T<80°C Media: Water, Oil, Gas, Base, Liquid
High Light:

Aluminium Bronze Butterfly Control Valve


API 607 Butterfly Control Valve


PTFE Seat fire safe butterfly valve

Product Description

Aluminium bronze material butterfly valve,High performance butterfly valve,904L material butterfly valve



Coosai butterfly valve provide a variety of types to meet different face to face dimension.Such as wafer type,Lug type,Falnge type. ring joint type and Butt weld is suitable for acid,alkali and other corrosive medium with both high and low temperature due to wide material selelction.Especiallu in large-diameter butterfly valve ,It is continuously replacing the shut off valve such as gate valve and ball valve with its's advanvantage of zero leakage, Meanwhile it is also continuously replaceing the regulating valves.Such as globe valve with it's excellent performance in regulation and control.


Design features:

1: Triple eccentric / Double eccentric/ Center line design

2: Metal seat / Laminated seat / Soft seat/PTFE or EPDM lining

3: High performance butterfly valve

4: Provides fire safe sealing ,which combines a soft seal ring and metal seal ring

5: Mounting flange dimension according ISO 5211 standard or client special request.


Technique specification:

Nominal Dimension:2”- 240”

Nominal Pressure:Class 150-900

Connection type: BW,RF,RTJ. FF

Forged/Casting Material: GGG40/50 with coating, SS, DSS, CS, LTCS, Inconel ,Monel,Alloy steel,Aluminum Bronze

Operation type: Manual, Electric Actuator, Pneumatic Actuator, Hydraulic actuator


Specification Sheet

Design standard API 609
Work Temperature -20 to 350 ℃
Hydraulic shell test Zero leakage
Hydraulic seal test Zero leakage
Testing standard API598
Application Medium Water ,Steam,Oil etc

Coosai butterfly valve presentation

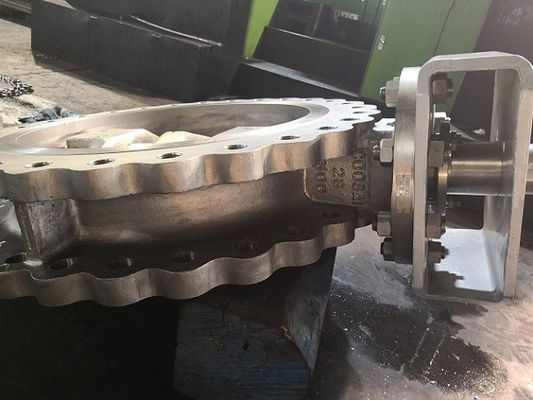

Aluminium Bronze Butterfly Control Valve 0


Aluminium Bronze Butterfly Control Valve 1

Aluminium Bronze Butterfly Control Valve 2

Aluminium Bronze Butterfly Control Valve 3Aluminium Bronze Butterfly Control Valve 4Aluminium Bronze Butterfly Control Valve 5
