Tilting Disc Flanged Check Valve

Basic Information
Place of Origin: CHINA
Brand Name: coosai
Certification: API6D, ISO 9001
Model Number: H48Y
Minimum Order Quantity: 1SET
Packaging Details: PLYWOOD CASE
Payment Terms: L/C, T/T
Detail Information
Material: Casting,Stainless Steel,Brass Media: Water,Gas,Oil,Base,water Oils Non-corrosive Fluids And Steam
Pressure: Medium Pressure,Low Pressure,High Pressure Structure: Check
Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature Application: General,petroleum,energy Etc.,Water System,water Supply And Drainage
Connection: Flanges Universal Standard,wafer,Flange Ends,female/male/ferrule,Male Thread Tube Standard: ANSI BS DIN JIS,DIN,ASTM,ANSI,GB
High Light:

Tilting Disc Flanged Check Valve


150LB Flanged Check Valve


1500LB flange type check valve

Product Description

Tilting Disc Flanged Check Valve 150LB~1500LB



Applicable Standards


Design Standard GB/T12221 API6DAPI594
Pressure-Temperature Rating GB/T12224 ASME B16.34
Face to Face Factory standard API6DAPI594
Flange Ends GB/T9113JB/T79 ASME B16.5, ASME B16. 47
Inspection & Test JB/T9092/GB/T13927 API598/API6D
Test Pressure(MPA) Shell Test CL150 CL300 CL400 CL600 CL900 CL1500

High Pressure

Seal Test

2.93 7.58 10.0 15.0 22.4 37.5

Low Pressure

Seal Test

2.07 5.52 7.31 11.03 16.54




Design Standard: API 6D, API 594, BS1868, API602


Connection type: RF,RTJ,FF,  BW, WAFER


Structure: Bolted Bonnet,  Tilting disc.


Operation: Damper and counterweight(optional)


Nominal Dimension: Casting Valve: 2”-36”


Material:CS, SS, DSS,LTCS, Inconel ,Monel, Bronze,Aluminum Bronze


Nominal Pressure: Class 150-1500

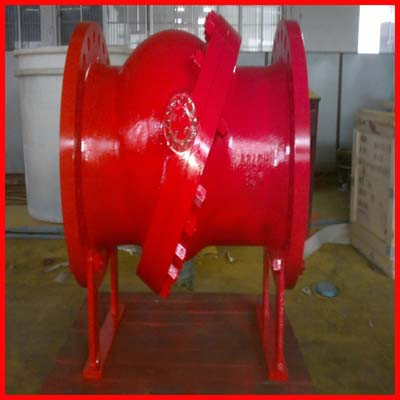

Tilting Disc Flanged Check Valve 0


Tilting Disc Flanged Check Valve 1

Tilting Disc Flanged Check Valve 2
