220 Centigrade Piston Valve

Basic Information
Place of Origin: CHINA
Brand Name: COOSAI
Certification: ISO certificate
Model Number: 1/2"-2",JIS20K
Minimum Order Quantity: 1 PCS
Price: 100 USD
Packaging Details: plywood case
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 100 Pcs per day
Detail Information
Stem Design: One Shaft Design Temperature: 220 Centigrade
Flange Standard: JIS20K Material: Stainless Steel
Valve Type: Piston Valve
High Light:

220 Centigrade Piston Valve


JIS20K Piston Valve

Product Description

Stainless steel Piston valve ,Piston valve with one shaft design, Piston valve Hot Liquids in tyre industry

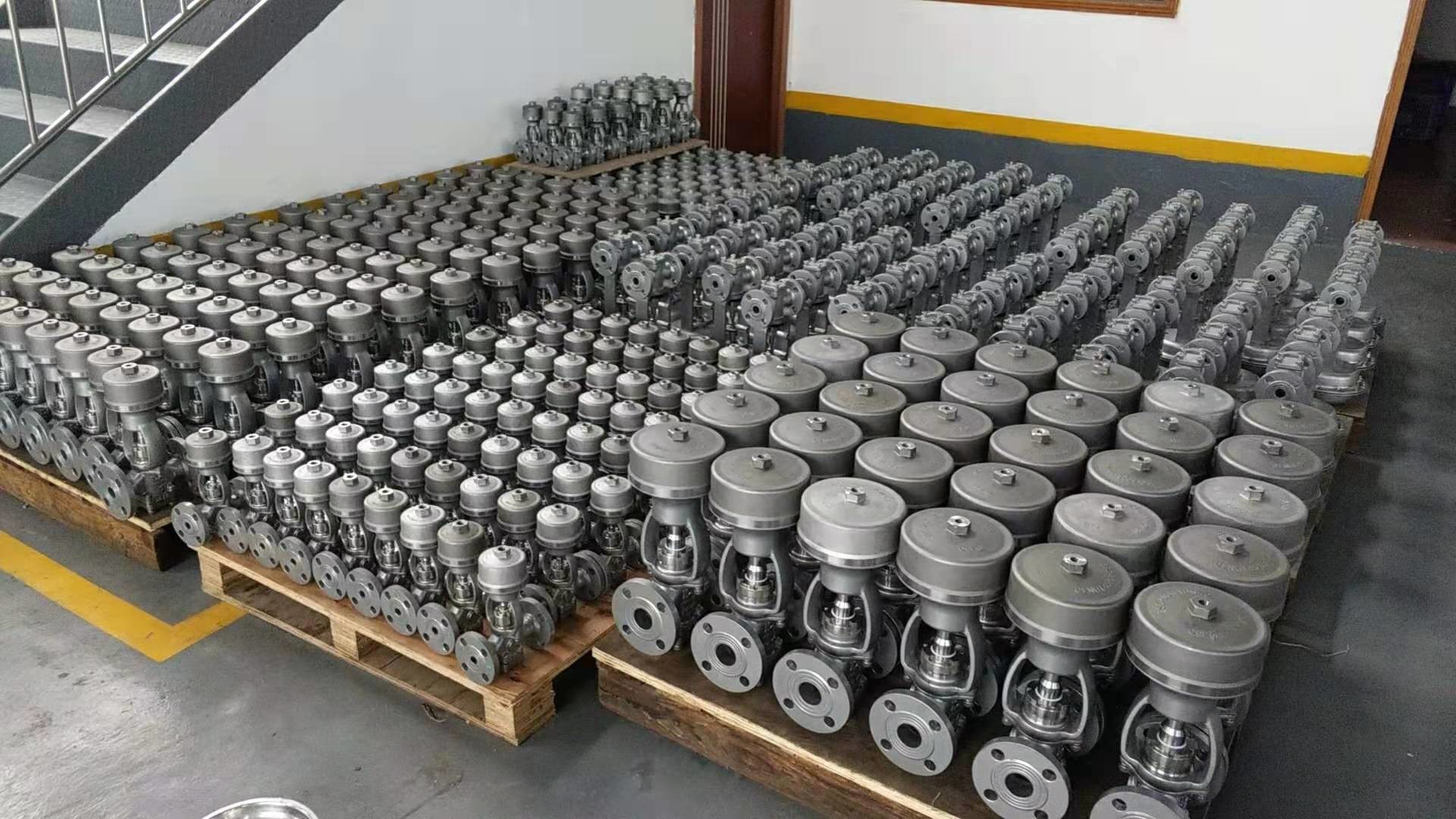

220 Centigrade Piston Valve 0

220 Centigrade Piston Valve 1 Piston valve have been developed COOSAI primarily for the purpose of rationalizing and automating the control of presses used for tires,records and other plastic and rubber products

Piston valve can be used in high temperature steam ,gas,hot and cold water,air and vacuum service, Many other fluids such as gasoline,alcohol,solvents and fuels can be controlled with piston valve also.


Technical Description

The main material of Piston valve is stainless steel, It is operated pneumatically by a piston


the advantage as belows:

1) compact design

2) Long life,and easy maintenance

3) Sel-regulating packing

4) High performance and good sealing

5) one shaft design


The detailed data as follows:


Specification Sheet

Max. Work pressure 40 Bar
Work Temperature -20 to 230 ℃
Hydraulic shell test (60 Bar) Zero leakage
Hydraulic seal test (60 Bar) Zero leakage
Actuator Air supply ≦5 Bar
Application Medium Water ,Steam,Oil etc


Part List

220 Centigrade Piston Valve 2


Valve Dimension

220 Centigrade Piston Valve 3


Note:We can offer the valves are available with DIN Flange and ANSI Flange also.According client’s request
