| Place of Origin: | CHINA |
|---|---|
| Brand Name: | COOSAI |
| Certification: | ISO certificate |
| Model Number: | 1/2"-2",JIS20K |
| Minimum Order Quantity: | 1 PCS |
| Price: | 100 USD |
| Packaging Details: | plywood case |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Pcs per day |
| Temperature: | 220 Centigrade | Flange Standard: | JIS20K |
|---|---|---|---|
| Material: | Stainless Steel | Valve Type: | Piston Valve |
| Stem Design: | One Shaft Design | ||
| High Light: | jis 20k piston operated control valve,220℃ piston valve |
||

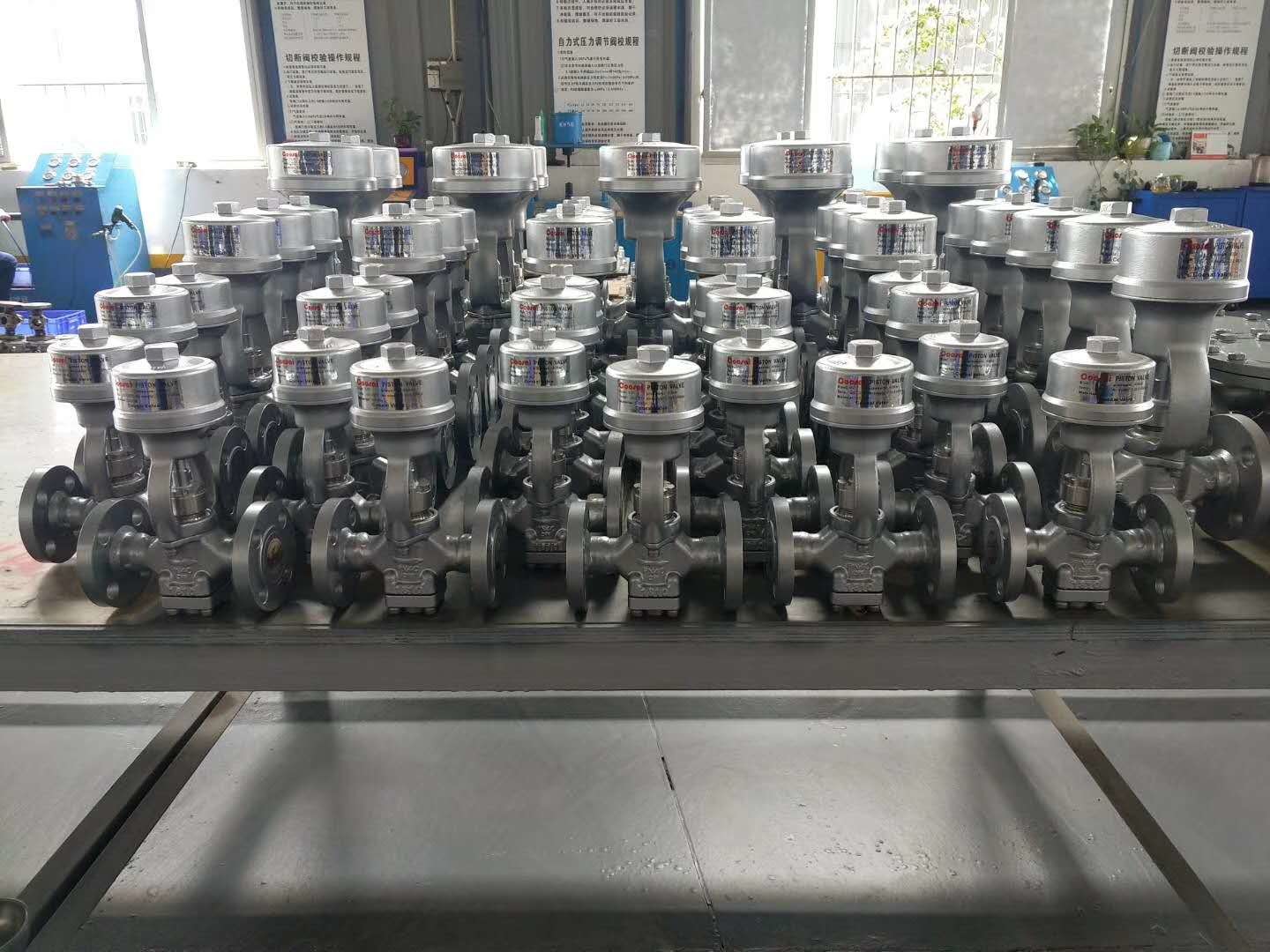

Stainless steel Piston valve with one shaft design, Piston valve for Hot Liquids in tyre industry
COOSAI Piston valve have been developed primarily for the purpose of rationalizing and automating the control of presses used for tires,records and other plastic and rubber products
Piston valve can be used in high temperature steam ,gas,hot and cold water,air and vacuum service, Many other fluids such as gasoline,alcohol,solvents and fuels can be controlled with piston valve also.
Technical Description
The main material of Piston valve is stainless steel, It is operated pneumatically by a piston
the advantage as belows:
1) compact design
2) Long life,and easy maintenance
3) Sel-regulating packing
4) High performance and good sealing
5) one shaft design
The detailed data as follows:
Specification Sheet
| Max. Work pressure | 40 Bar |
| Work Temperature | -20 to 230 ℃ |
| Hydraulic shell test (60 Bar) | Zero leakage |
| Hydraulic seal test (60 Bar) | Zero leakage |
| Actuator Air supply | ≦5 Bar |
| Application Medium | Water ,Steam,Oil etc |
Part List
Valve Dimension
Note:We can offer the valves are available with DIN Flange and ANSI Flange also.According client’s request
