| Place of Origin: | CHINA |
|---|---|
| Brand Name: | coosai |
| Certification: | API6D, ISO 9001 |
| Model Number: | J41Y,J61Y |
| Minimum Order Quantity: | 1set |
| Packaging Details: | PLYWOOD CASE |
| Media: | Water,Oil,Gas,Steam,High Temperature&Pressure Oil | Power: | Manual,Pneumatic,Hydraulic,electric,Wheel Hand Operated |
|---|---|---|---|
| Material: | Casting,Stainless Steel,Brass,Forged | Pressure: | Medium Pressure,High Pressure,Low Pressure |
| Structure: | Globe | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,Low Temperature |
| Standard: | DIN,ANSI,JIS,BS,API | Connection: | Flanged,RF,threaded, BW |
| High Light: | steam pipeline globe stop valve,pressure seal bonnet globe valve,class150 Globe Stop Valve |
||

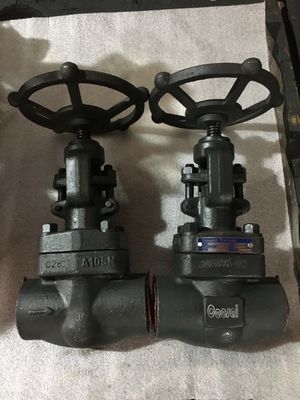

Globe Valve, Pressure Seal Globe Valve
Coosai globe valves is used in class 150～class 2500, NPS ½～NPS 12, working temperature -196℃～540℃ many
kinds of pipelines, and can be applicable to water, steam, oil and so on. Via choosing different types of materials.
Applicable Standards
Design Standard: BS1873, ASME B16.34,DIN 3356,API602
Structure: Bolted Bonnet, Welded bonnet, Pressure seal ,Outside screw & yoke,”Y” pattern, Special design for Fugitive emission testing
Material: DI, CS, SS, DSS,LTCS, Inconel ,Monel, Bronze,Aluminum Bronze
Operation type: Manual, Electric Actuator, Pneumatic Actuator, Hydraulic actuator
Nominal Dimension: Casting Valve: 2”-12”, Forging Valve: 1/4"~2"
Nominal Pressure: Class 150-2500
Connection type: RF,RTJ,FF, SW, NPT, BW
