Water Supply System Tilting Disk NRV Check Valve

Basic Information

Get Best Price Contact Now

Detail Information

Material:	Casting,Stainless Steel,Brass	Media:	Water,Gas,Oil,Base,water Oils Non-corrosive Fluids And Steam
Pressure:	Medium Pressure,Low Pressure,High Pressure	Structure:	Check
Temperature Of Media:	Medium Temperature,Normal Temperature,High Temperature	Application:	General,petroleum,energy Etc.,Water System,water Supply And Drainage
Standard Or Nonstandard:	Standard	Connection:	Flanges Universal Standard,wafer,Flange Ends,female/male/ferrule,Male Thread Tube
Standard:	ANSI BS DIN JIS,DIN,ASTM,ANSI,GB
High Light:	wafer type nrv check valve , coosai swing type check valve , nrv tilting disk check valve

Product Description

Swing Check Valve, Wafer Type Check Valve, Tilting Disk Check Valve

Applicable Standards

Design Standard: API 6D, API 594, BS1868, API602
Material:DI, CS, SS, DSS,LTCS, Inconel ,Monel, Bronze,Aluminum Bronze
Structure: Bolted Bonnet, Welded bonnet, Pressure seal, Double disc, Tilting disc,”Y” pattern,Non Slam design.
Nominal Pressure: Class 150-2500
Operation: Damper and counterweight(optional)
Connection type: RF,RTJ,FF, SW, NPT, BW
Nominal Dimension: Casting Valve: 2”-48”, Forging Valve: 1/4"~2"

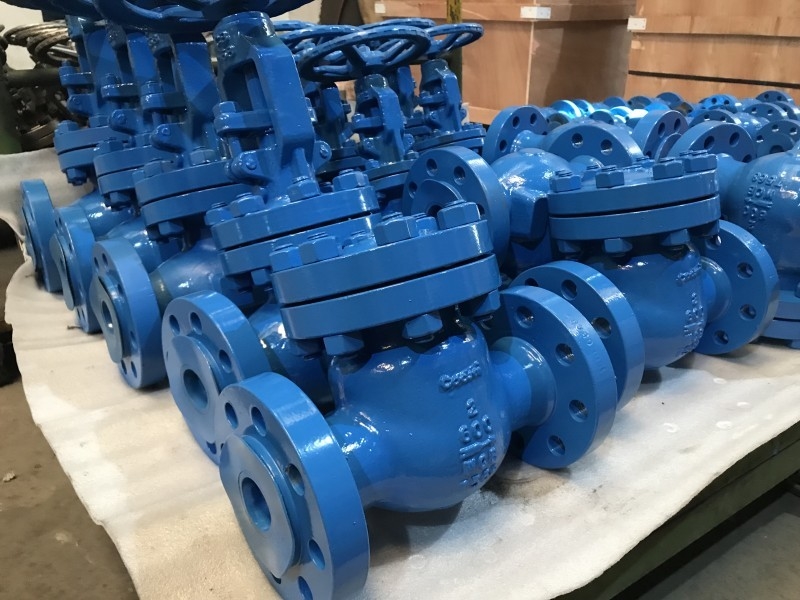

Water Supply System Tilting Disk NRV Check Valve 0

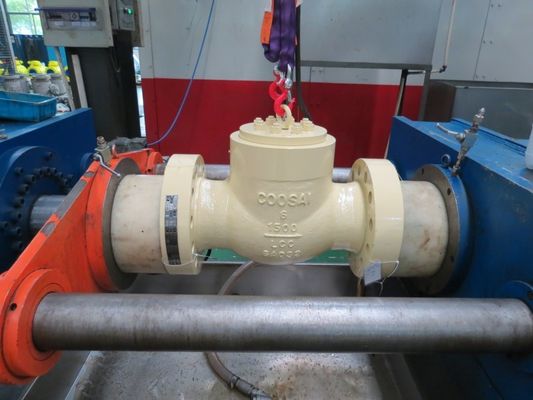

Water Supply System Tilting Disk NRV Check Valve 1

Water Supply System Tilting Disk NRV Check Valve 2

Water Supply System Tilting Disk NRV Check Valve 5

Water Supply System Tilting Disk NRV Check Valve 7
